Appendix E Replacing The Timing Belts
8. Remove the timing belt by working it around the vertical rail and constant
force spring. (Figure 93.)
9. To install a timing belt, reverse the steps of this procedure.

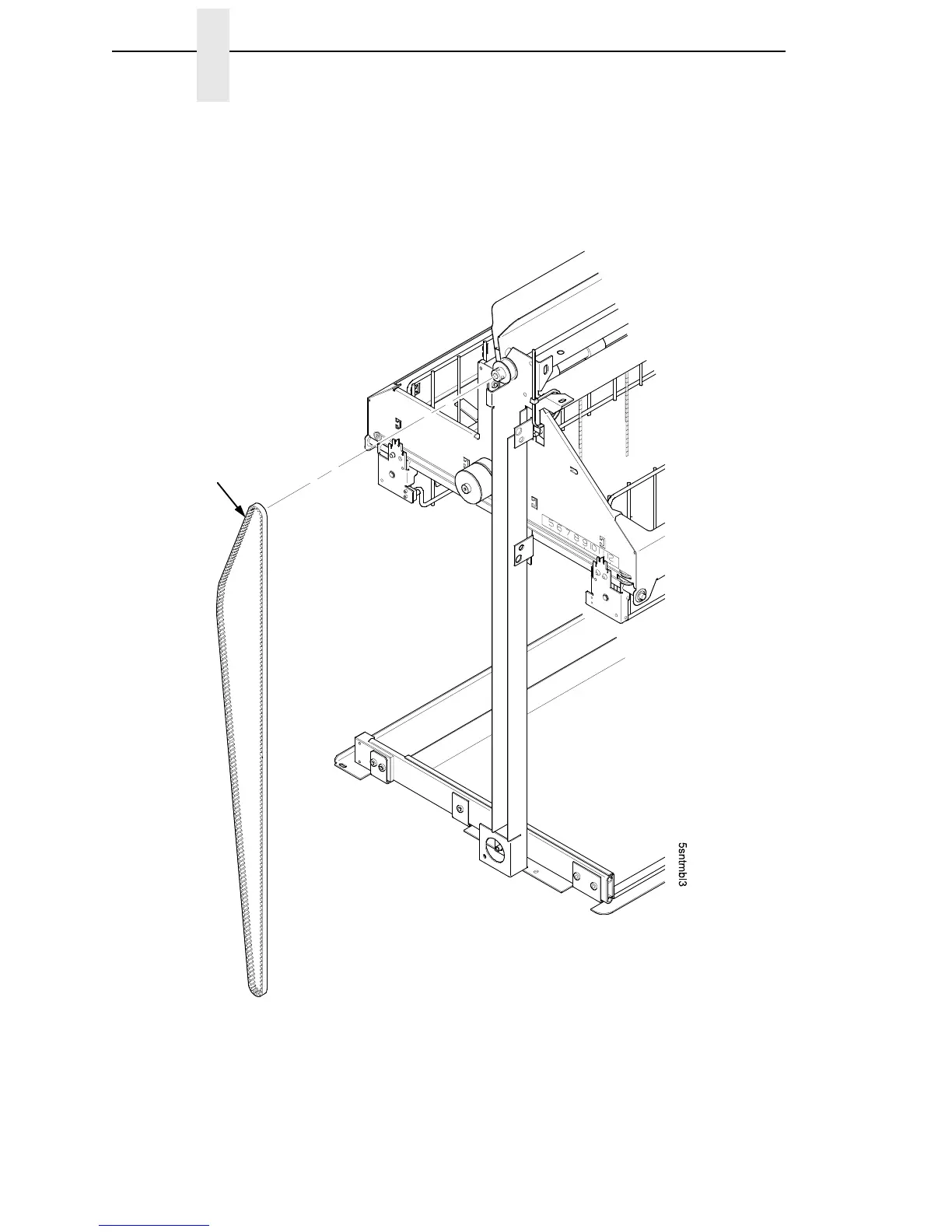

Figure 93. Removing the Timing Belt
NOTE: Left timing
belt is shown. Right is
the same.
Timing Belt
