Back of Vess R3600
The rear of the Vess R3600 Series enclosure provides access to the power supply units, which include the
cooling fans, and the system controller(s).
Each controller has an RJ-45 Gigabit Ethernet port used for management, an RS-232 serial management port
using an RJ-11 connector, four 1 Gb/s iSCSI ports, one SAS Expansion port for additional drive enclosures, one
USB 3.0 port and various LED indicators which are described below.

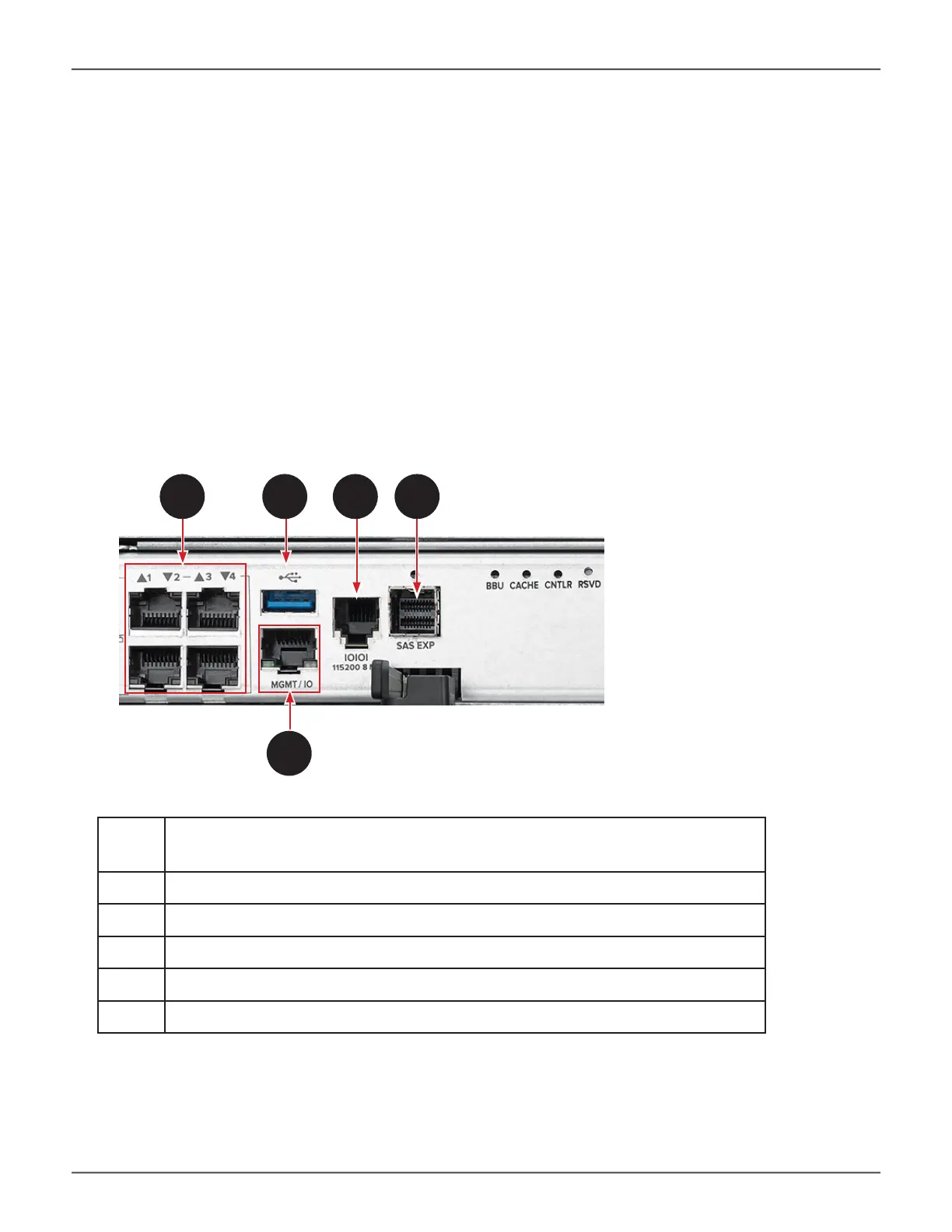

Ports on all Vess R3600 Series
Port Description
1 1000BASE-T IO ports (four ports for iSCSI)
2 USB 3.0
3 RJ-11 Serial management (use DB9-to-RJ-11 data cable)
4 SFF-8644 mini-SAS Expansion (JBOD expansion)
5 1000BASE-T MGMT / IO Network management and IO
1 2 3 4
5
