Promise Technology Vess R3600 Series - Fibre Channel das Connections; Fiber Channel das Data Path

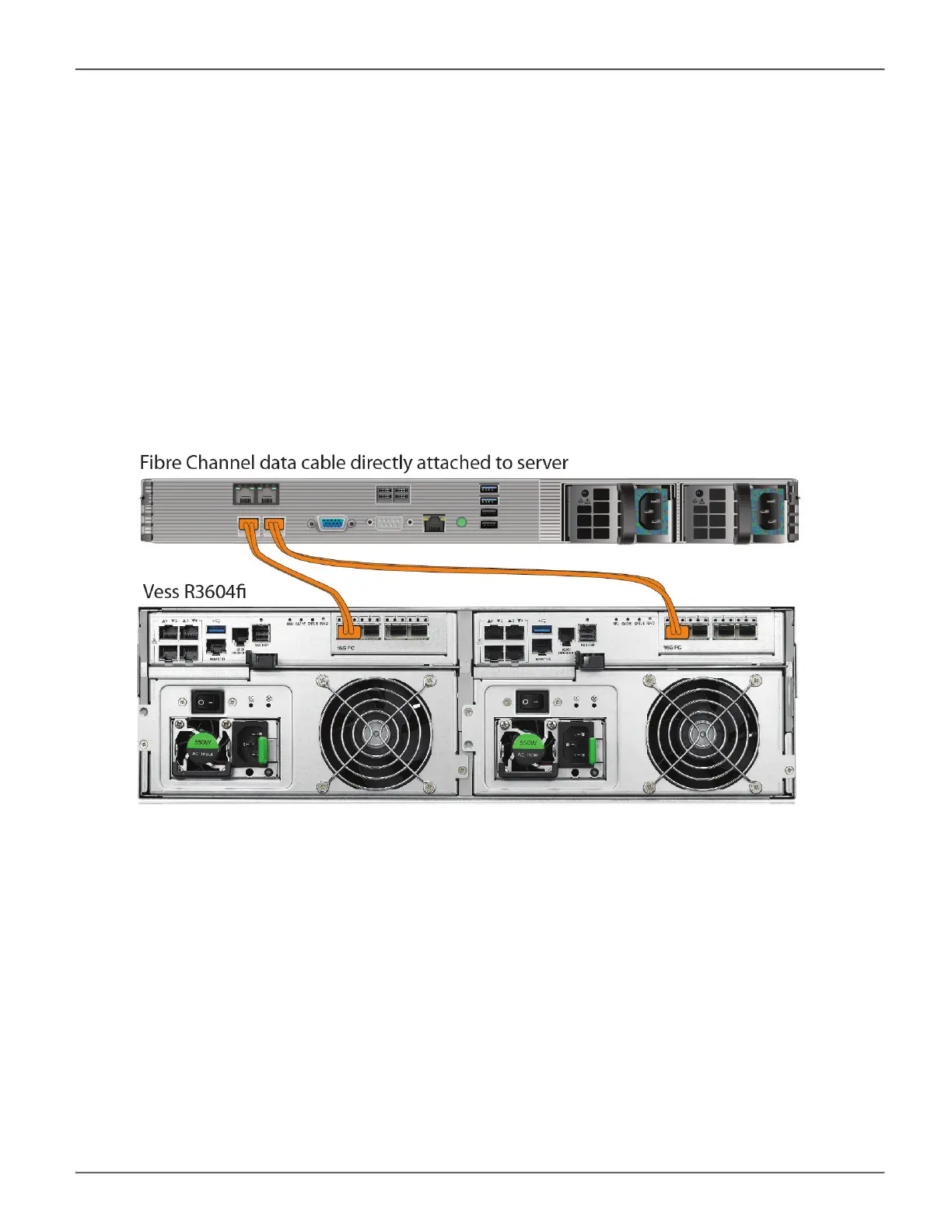

Vess R3604 DAS connection
Fiber Channel DAS data path
The16GbFibreChanneldataconnectionfortheVessR3604controllersrequiresthefollowingitems:
• A Fibre Channel connection in each host PC or server.
• An Fibre Channel transceiver for each connected port on the subsystem.
• FiberOpticcabling(LC/LC62.5/125μmMMF)
Fibre Channel DAS connections
For 16Gb Fibre Channel direct attached storage (DAS):
1. For each attached server or host PC, connect Fiber Optic cable to the Fibre Channel port on the host
PC or server; 16Gb SFP transceivers are recommended for best performance.
2. Connect the other end of the Fiber Optic cable to a 16Gb Fibre Channel port on one of the Vess R3600
controllers.
