Back of Vess J3600

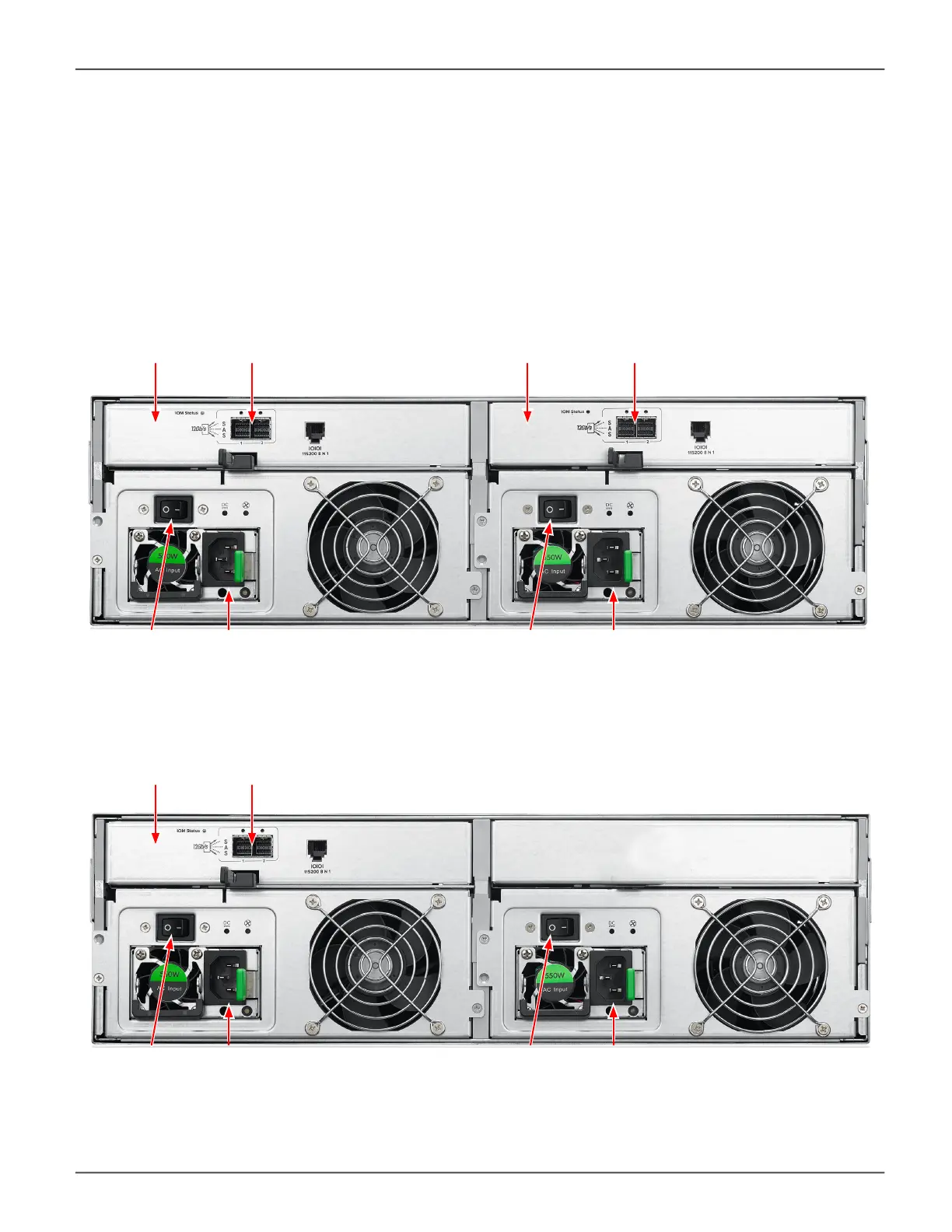

The rear of the Vess J3600 Series enclosure provides access to the power supply units, which include the
cooling fans, and the IO modules. Each IO module has two SAS Expansion ports, including status LEDs for the
SAS ports and the IO module.
Back view of Vess J3600sD
Back view of Vess J3600sS
Power Socket
PSU 2
ON/Off
switch
Power Socket
PSU 1
ON/Off
switch
IO Module 2IO Module 1 12G/bs SAS (2 ports)12G/bs SAS (2 ports)
Power Socket
PSU 2
ON/Off
switch
Power Socket
PSU 1
ON/Off
switch
IO Module 1 12G/bs SAS (2 ports)
