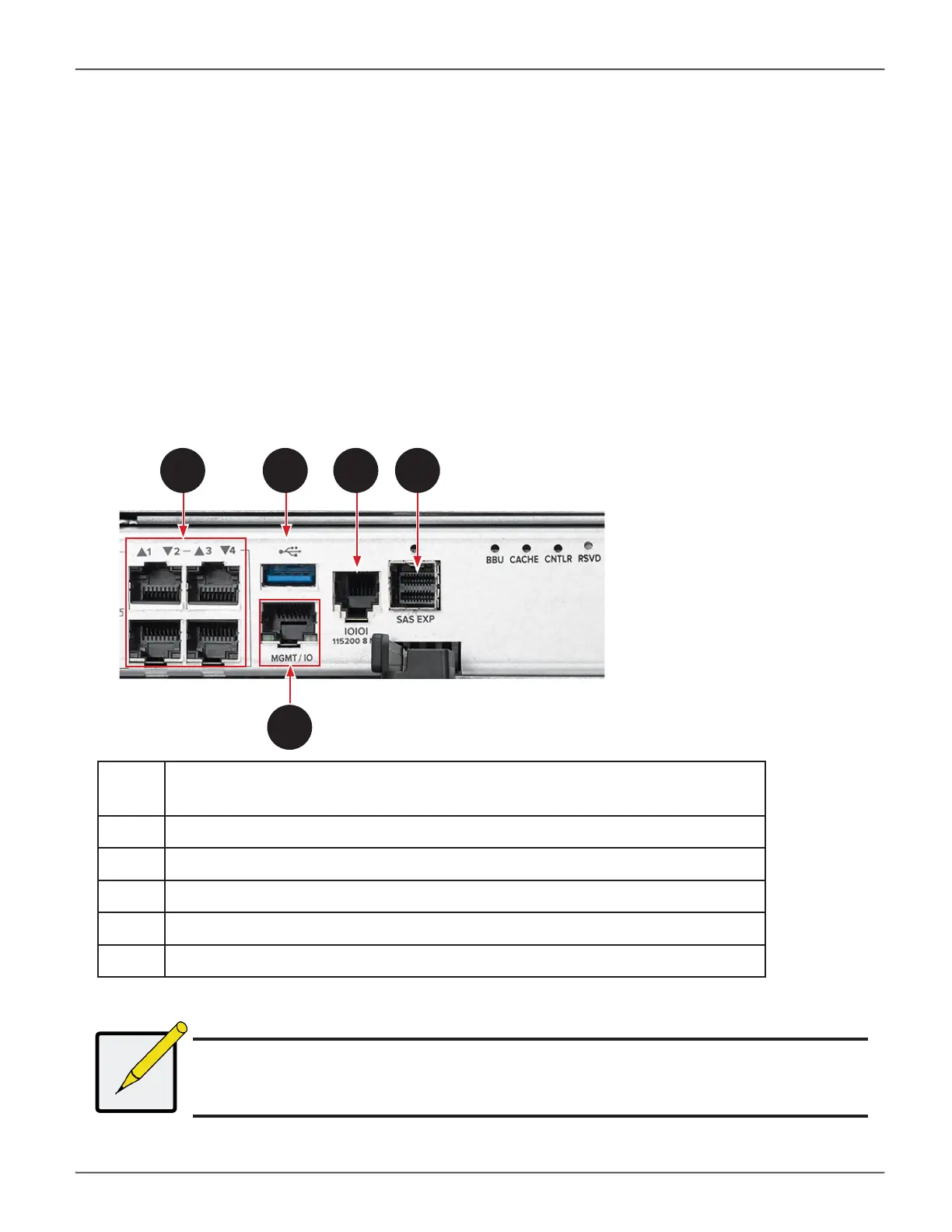

Vess R3600 Series controller Management and IO ports
1 2 3 4
5
Port Description
1 1000BASE-T IO ports (four ports for iSCSI)
2 USB 3.0
3 RJ-11 Serial management (use DB9-to-RJ-11 data cable)
4 SFF-8644 mini-SAS Expansion (JBOD expansion)
5 1000BASE-T MGMT / IO Network management and IO
Making Management Connections
There are two methods to establish a management connection, Network and Serial connection. For the
initial setup, it is necessary to establish the network management connection; use the MGMT/IO port on both
controllers for system management. The Vess R3600 Series also features a Serial management port for system
management using a terminal emulation program and the Vess R3600 Command Line Interface (CLI). The
hardware connections for both methods are described in this section.
Note
The Vess J3600 is managed and controlled through the head unit. The Vess
J3600 can be used with the Vess R3600, Vess A7000 and Vess A6000 series.
