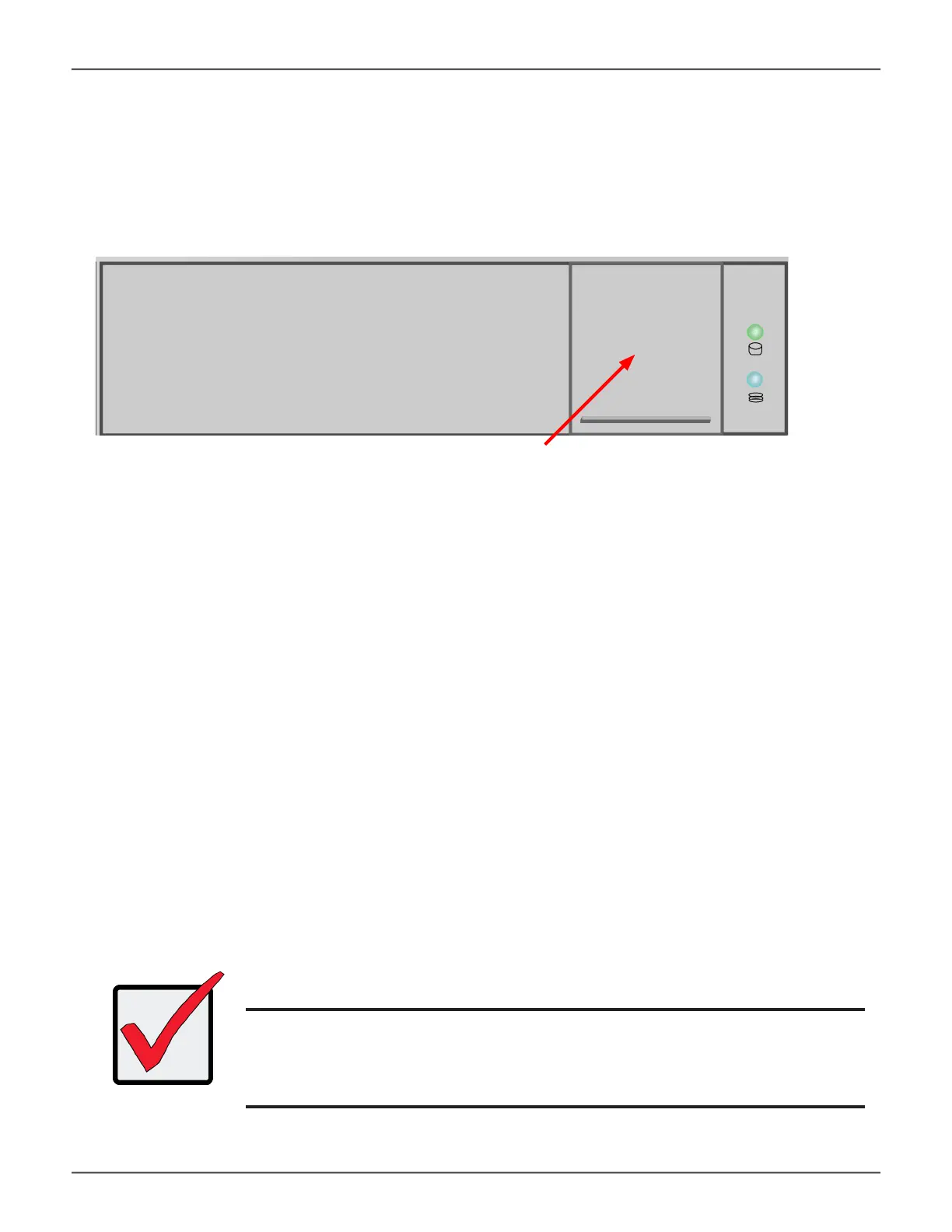

Disk carrier release button
Drive carrier front view
1. Press the drive carrier release button.
2. Grasp the front and gently pull the empty drive carrier out of the enclosure.
3. If you are installing SATA drives, attach a SAS-to-SATA adapter onto the power and IO connectors of each
drive.
4. Carefully lay the drive into the carrier with the power and IO connectors facing away from the carrier
handle.
5. Position the drive in the carrier so the mounting holes line up.
• 2.5-inch drive mounting screws go through the bottom of the carrier.
• SAS-to-SATA adapter mounting screws go through the bottom of the carrier.
• 3.5-inch drive mounting screws go through the sides of the carrier.
6. Insert the screws through the proper holes in the carrier and into the drive or adapter.
• Use the screws supplied with the shipment or the SAS-to-SATA adapter.
• Install four screws per drive.
• Install two screws per adapter.
• Snug each screw. Be careful not to over tighten.
7. Withthedrivecarrierhandleinopenposition,gentlyslidethedrivecarrierintotheenclosure.
Important
Press the release button to push the drive carrier into position.
Proper drive installation ensures adequate grounding and minimizes
vibration. Always attach the drive to the carrier with four screws.
21
Promise Technology
Hardware Setup
