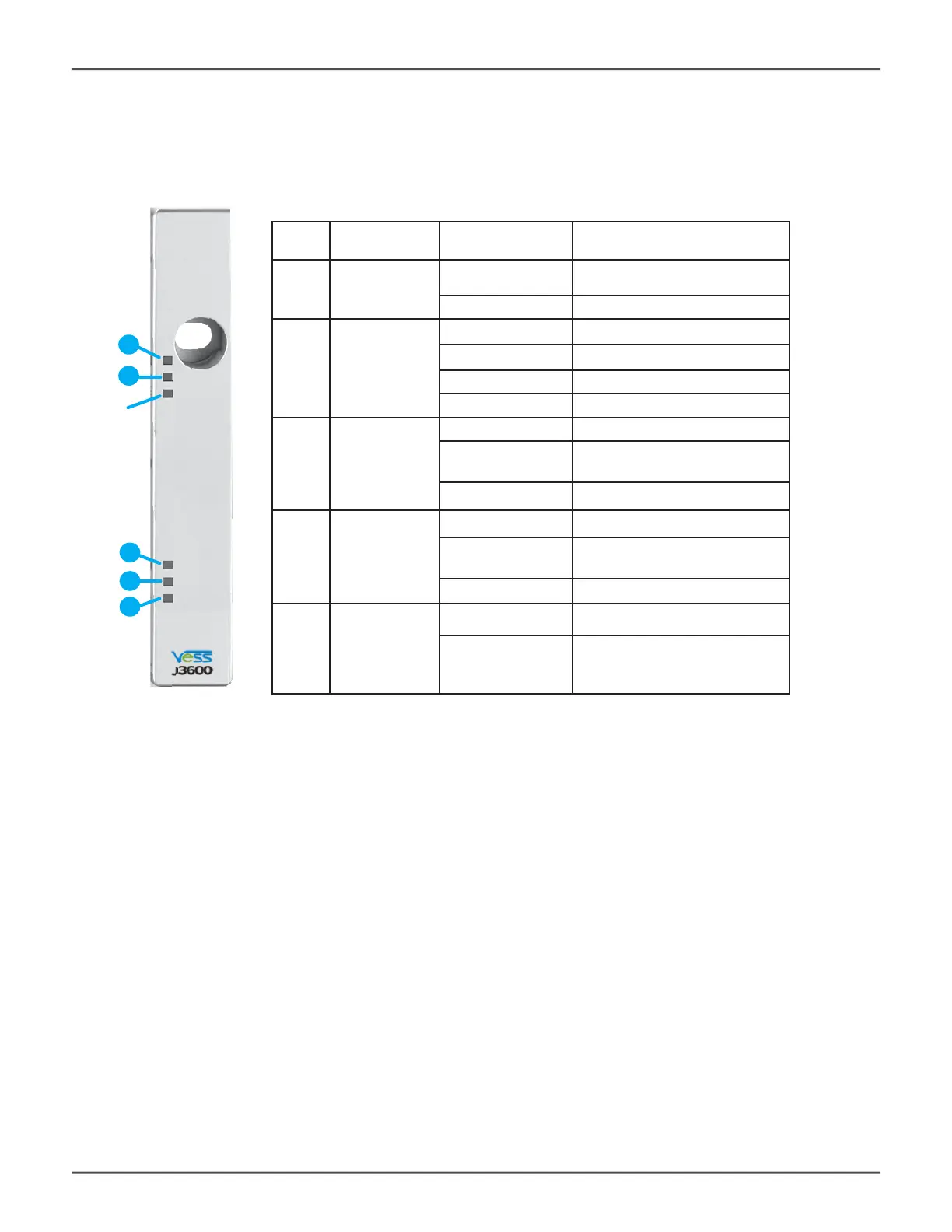

LED indicators on front right of Vess J3600 enclosure
LED name Status Description
1 Power
OFF System Power Off
Blue System Power On
2
Global
Enclosure
Status
Off System Power Off
Green OK/Healthy
Amber Malfunction
Red Critical
3
I/O module 1
activity
Off No I/O
Steady Blue
No I/O and SAS expansion
port is linked
Blink Blue I/O Running
4
I/O module 2
activity
Off No I/O
Steady Blue
No I/O and SAS expansion
port is linked
Blink Blue I/O Running
5 Heartbeat
Off System Power Off
Blink Blue
IOMFWworks.(DualIOM
blink every 2 sec, single IOM
blink every 4 sec )
Reserved
4
5
3
1
2
