16G 8G 4G 16G 8G 4G 16G 8G 4G 16G 8G 4G

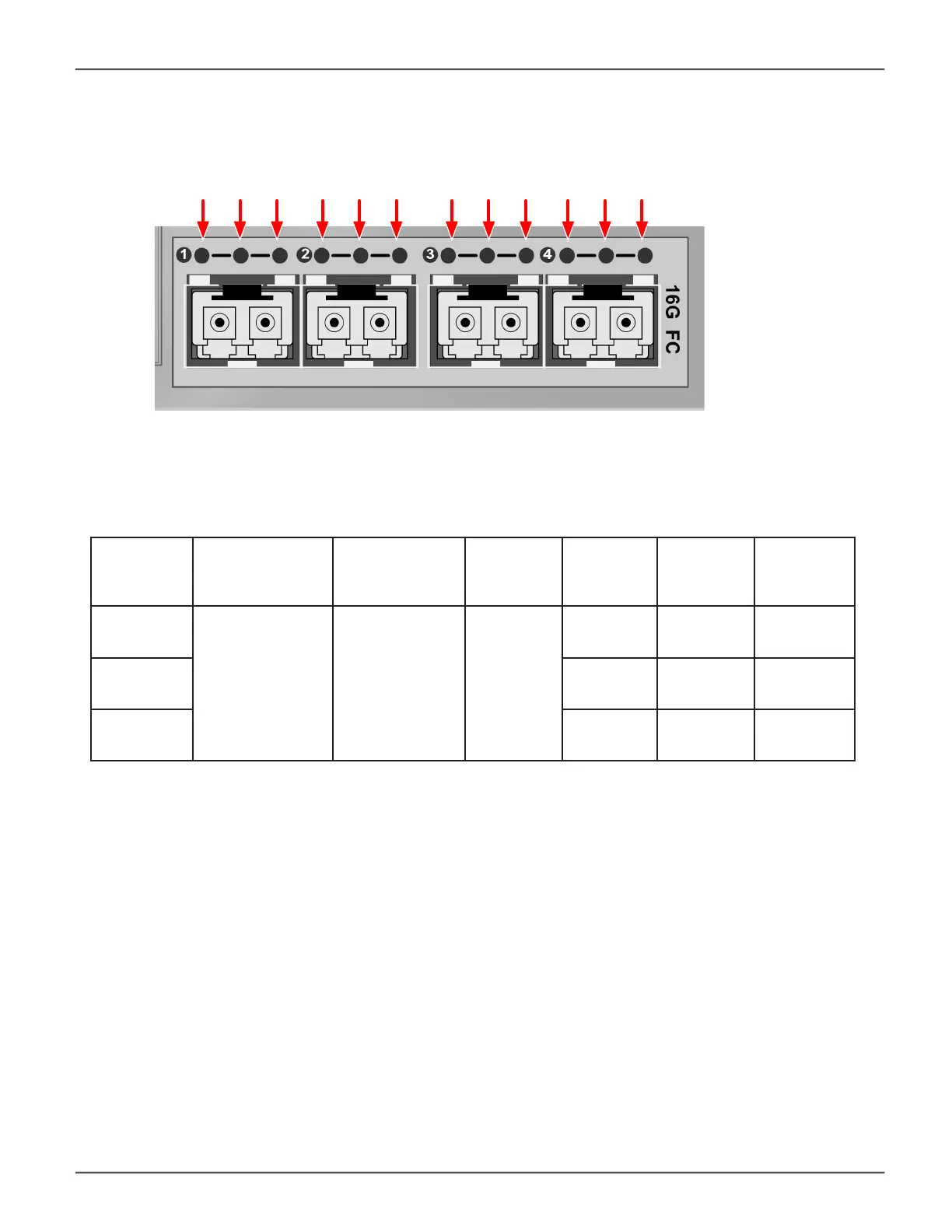

LED indicators for Fibre Channel ports on Vess R3604
Fiber Channel Port LED behavior
LEDs
Power on
(Before Firmware
Initialization)
Power on
(After Firmware
Initialization)
Firmware
Fault
4 Gbps
Link Up/
ACT
8 Gbps
Link Up/
ACT
16 Gbps
Link Up/
ACT
Green LED
(16 Gbps)
On Flash
Flash in
sequence
Off Off
On/Flash
when active
Green LED
(8 Gbps)
Off
On/Flash
when active
Off
Green LED
(4 Gbps)
On/Flash
when active
Off Off
All Fibre Channel port LED indicators will be dark when the system is powered off. If all three indicators for a
portashsimultaneously,thenthereisnoSFPtransceiverinstalled,orthewrongtypeoftransceiverisinstalled,
or the port is not connected.
