7.2.9.1. Most Downstream Zone

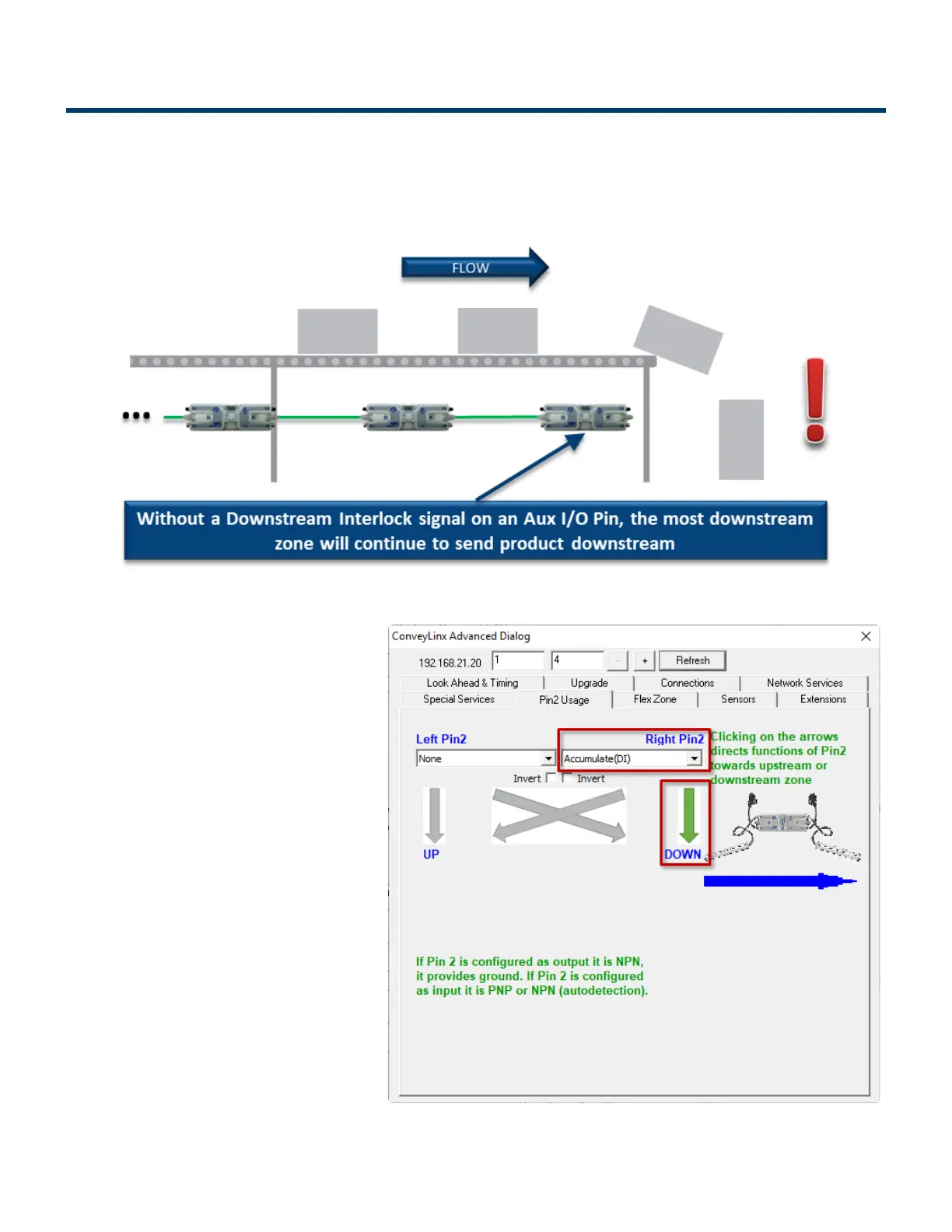

Please note that by default and without any intervention, the most downstream zone will always try to
discharge product. To control this, you need to utilize the Aux I/O Pin 2 signal for the most downstream
zone as an Accumulate input.
Assuming the most downstream zone is
connected to the right side of the module;
we set the Right Aux I/O Pin 2 to
Accumulate from the drop-down box and
make sure we click the “DOWN” arrow to
indicate that the Right Pin 2 signal is to be
associated with the Downstream Zone.
When the Right Pin 2 signal is energized,
the downstream zone will stop when an
item arrives on its sensor
Last modified: Aug 18, 2020
PULSEROLLER ConveyLinx-Ai2 User's Guide - 1.7
Page 137 of 154
