4.6. Power Connections
IP54 Power Wiring Connection
The protective shrouds (Item 17 as depicted in Identifying Module Components) will be unattached to the
module when shipped and are included in the module’s shipping box. These shrouds are used to maintain
an IP54 installation of the power and Ethernet wiring.

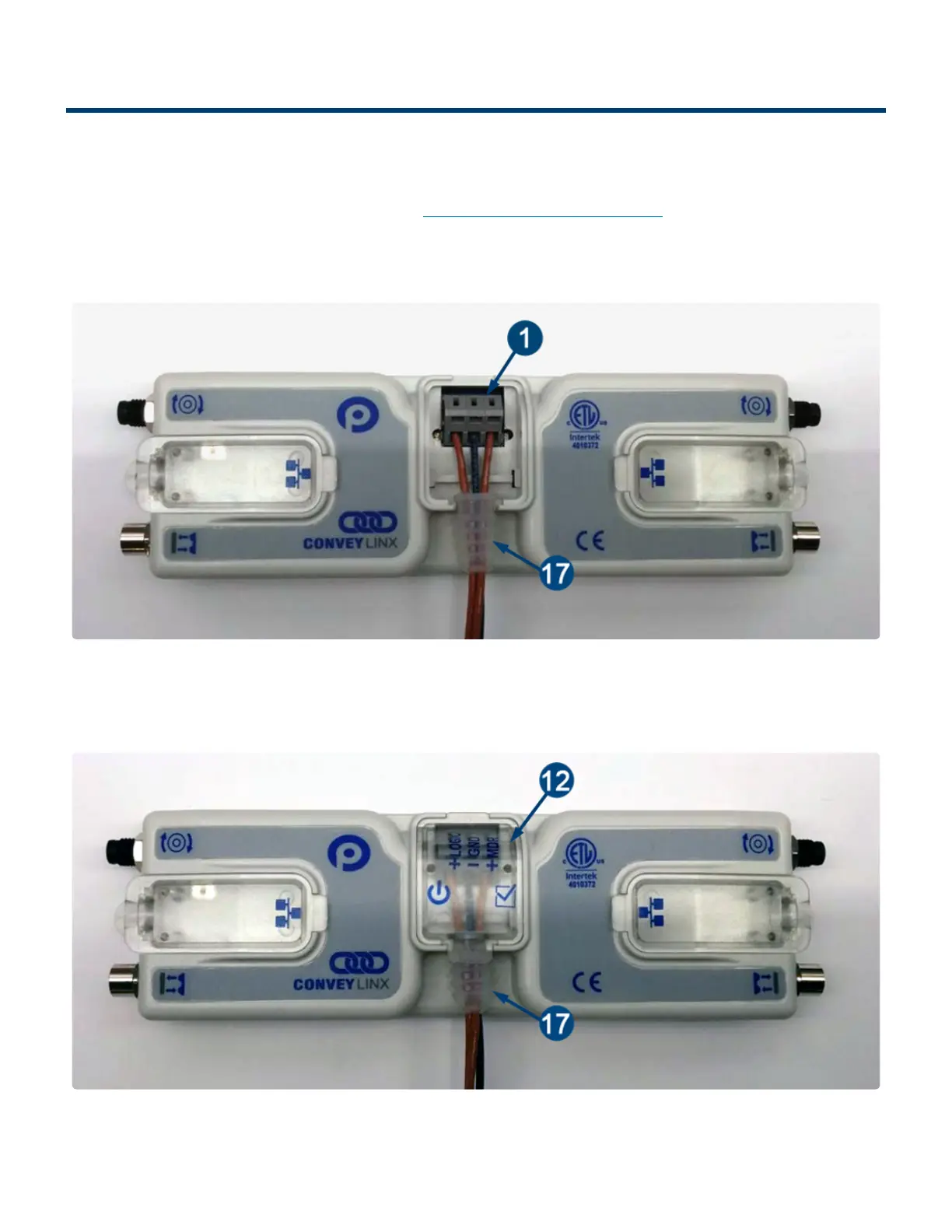

Power wires are fed through the protective shroud (Item 17). The wire terminals (Item 1) are standard
cage-clamp style
Once wiring has been completed the power wiring compartment is then sealed by snapping into place
the Power Compartment Cover (Item 12)
PULSEROLLER ConveyLinx-Ai2 User's Guide - 1.7
Page 21 of 154
