Pulseroller ConveyLinx-Ai2 User Manual

5. Auto-Configuration
The purpose of Auto-Configuration for networked ConveyLinx controls is to provide a simple and easy
procedure for linear conveyor system commissioning. The Auto-Configuration Procedure requires the use
of EasyRoll on a PC.
Connecting Devices to Ai2 Module
Connecting Nodes Together
Installing EasyRoll
ConveyLinx Ethernet Definition
Connecting Your PC to Network
Auto-Configuration Procedure
Linear Conveyor Definition
Auto-Configuration is only applicable to a Linear Conveyor arrangement. A Linear Conveyor arrangement is
defined as a single uninterrupted path of conveyor with no merge or diverts mechanisms. A Linear Conveyor
can include curved sections, but the flow of cartons on the conveyor is continuous from in-feed zone to
discharge zone. A networked ConveyLinx solution can control more complex conveyor paths that include
diverting and merging equipment by utilizing external PLC/PC control and/or on-board ConveyLogix
programming.

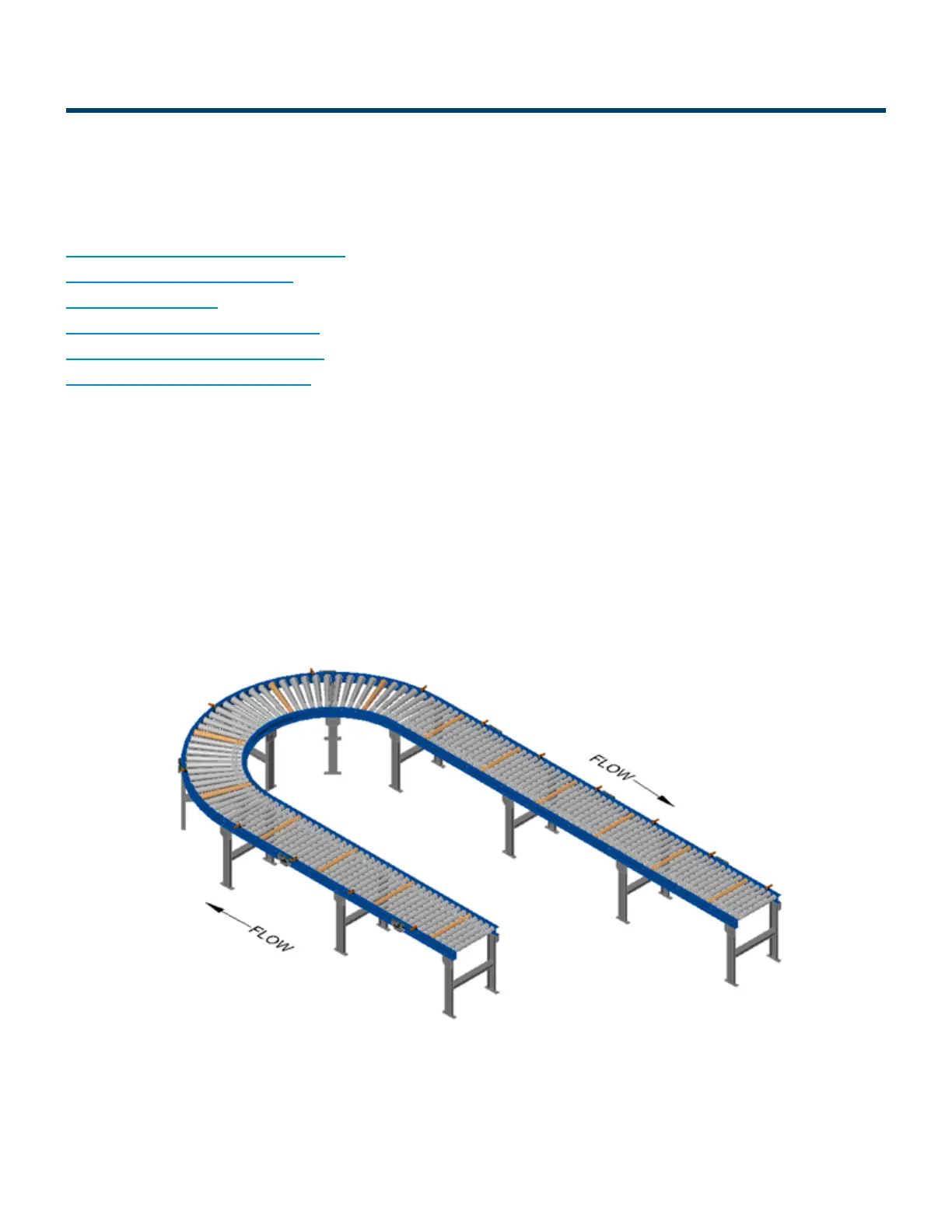

Example of a Linear Conveyor
Last modified: Aug 18, 2020
PULSEROLLER ConveyLinx-Ai2 User's Guide - 1.7
Page 35 of 154
