4.5. Ethernet Ports
Both ports are standard RJ-45 jacks conforming to standard Ethernet connection pin-out. In order to
maintain IP54 rating; Ethernet cables need to be equipped with protective shrouds. Shown below are the
Ethernet cables installed using shrouds to protect the RJ-45 connectors on the Ethernet cables. Each
module is shipped with 3 shrouds – 2 for the Ethernet Cables and 1 for the power wiring.

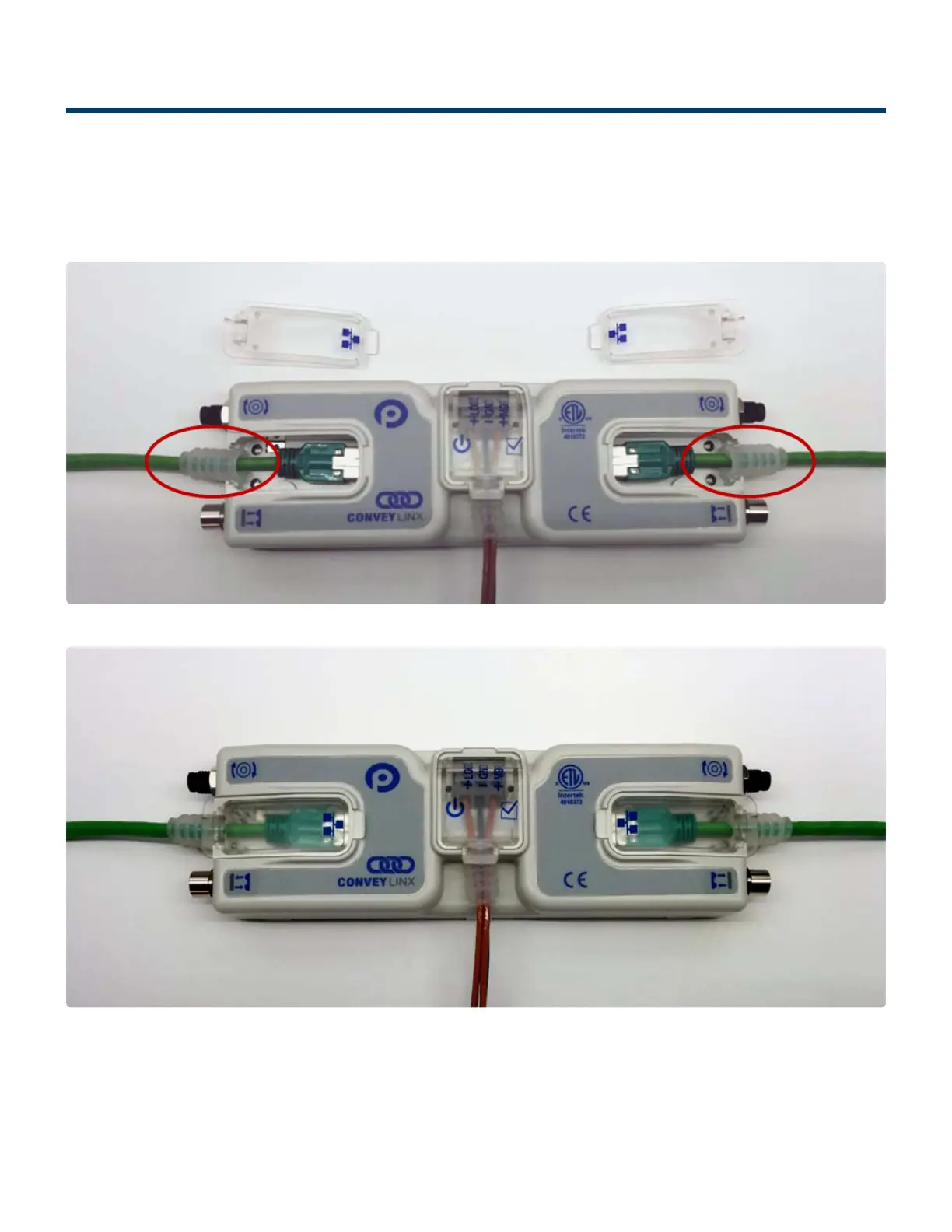

Ai2 Module with Left & Right Ethernet Cable (Covers removed)
Ai2 Module with Left & Right Ethernet Cable with Covers attached
PULSEROLLER ConveyLinx-Ai2 User's Guide - 1.7
Page 19 of 154
