Pulseroller ConveyLinx-Ai2 User Manual

How to install shrouds on Ethernet cables

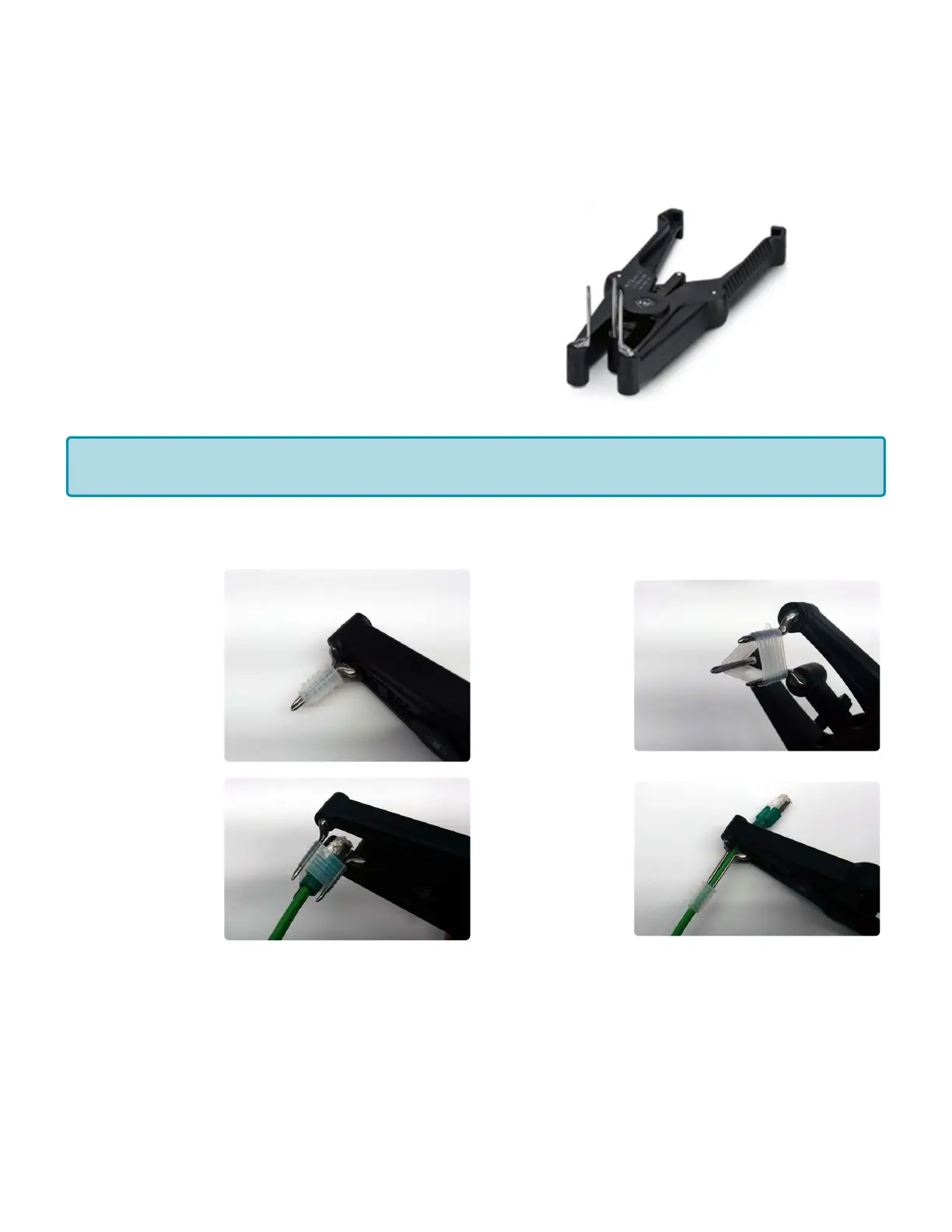

Assembly Tool
Phoenix Contact Part Number 2891547 FL IP 54
Putting the shroud on the cable
1: With tool
closed, place
shroud on the
pins
2: Grip the handle
to open the pins
to stretch open
the shroud
3: While
continuing to grip
the handle, insert
the RJ-45 cable
through the
shroud opening
as shown
4: Release the
handle and the
pins close
allowing them to
be removed from
the shroud
Last modified: Aug 18, 2020
Tool must be purchased separately
*
PULSEROLLER ConveyLinx-Ai2 User's Guide - 1.7
Page 20 of 154
