Pulseroller ConveyLinx-Ai2 User Manual

7.2.9.3. Accumulate Intermediate Zone

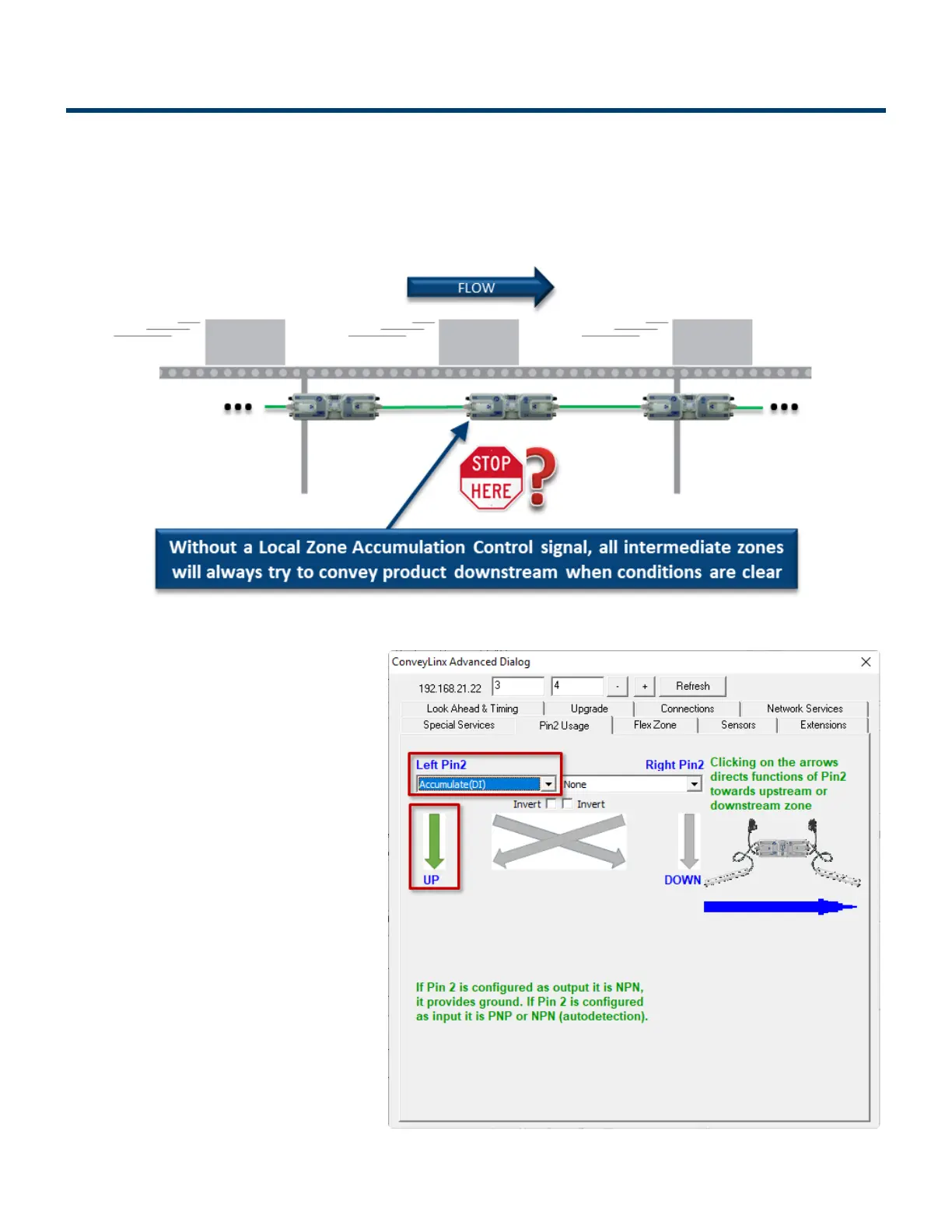

By default, and without intervention; all zones in between the most upstream and most downstream zones
always try to convey items downstream if the next downstream zone is clear. To cause an intermediate zone
to accumulate based upon a wired signal, you need to utilize the Aux I/O Pin 2 signal for the zone in
questions as an Accumulate input.
Assuming the intermediate zone we want
to accumulate is the upstream zone and
the upstream zone is connected to the
Left side of the module; we set the Left
Aux I/O Pin 2 to Accumulate from the
drop down box and make sure we click
the “UP” arrow to indicate that the Left Pin
2 signal is to be associated with the
Upstream Zone. When the Left Pin 2 is
energized, the upstream zone will
accumulate the next item that arrives
PULSEROLLER ConveyLinx-Ai2 User's Guide - 1.7
Page 139 of 154
