5.3. Node Connections for a Subnet
With your motors and sensor connected to your individual Ai2 Modules, you will need to connect the
Ethernet network cabling from module to module in a daisy chain fashion. The most upstream module in the
direction of flow is node 1.

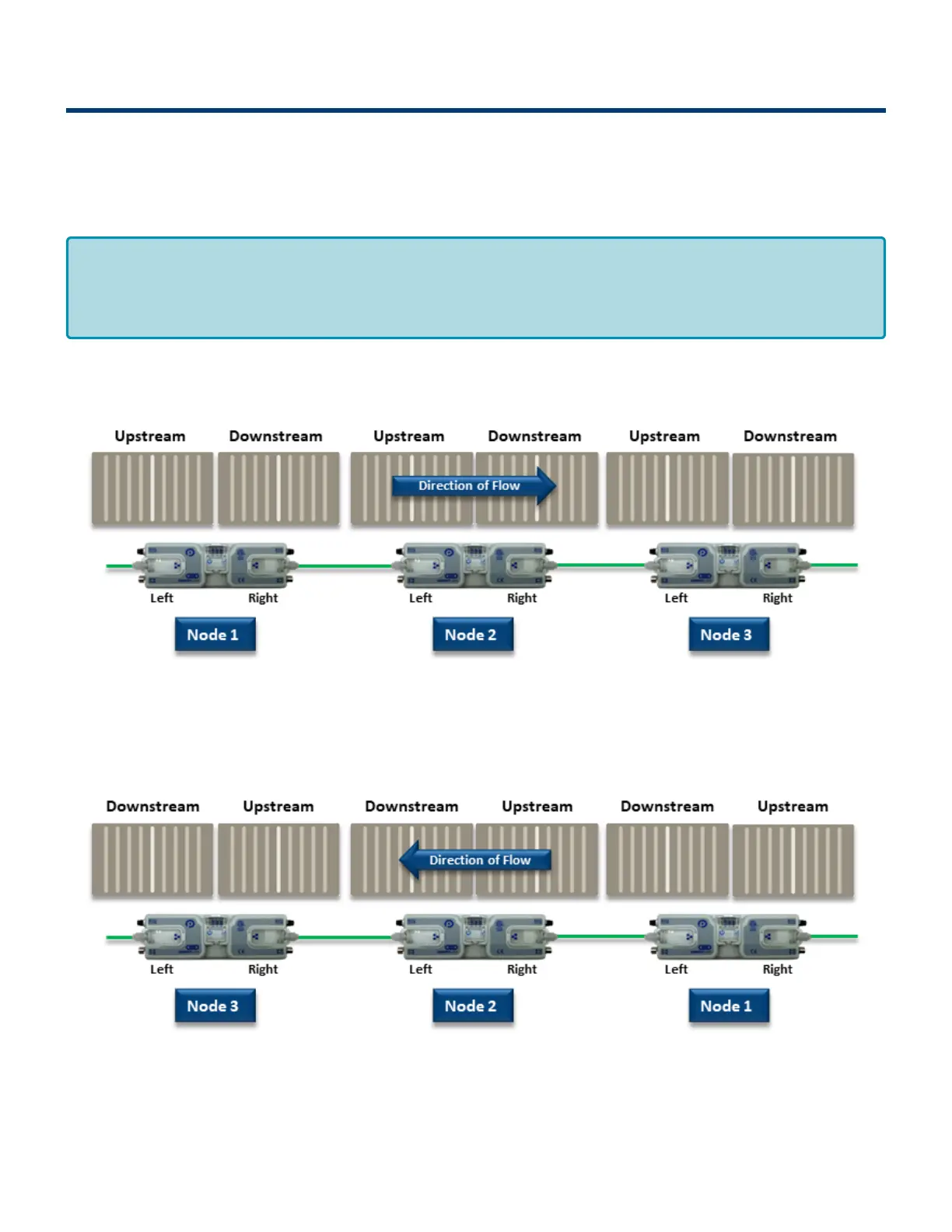

Subnet with Left to Right Flow
Subnet with Right to Left Flow
Please note that the Flow is based upon the Ethernet cable routing during the Auto-
Configure Procedure. The Flow direction cannot be changed or over-ridden. The only way
to change the Flow direction is to perform another Auto-Configuration Procedure
*
PULSEROLLER ConveyLinx-Ai2 User's Guide - 1.7
Page 40 of 154
