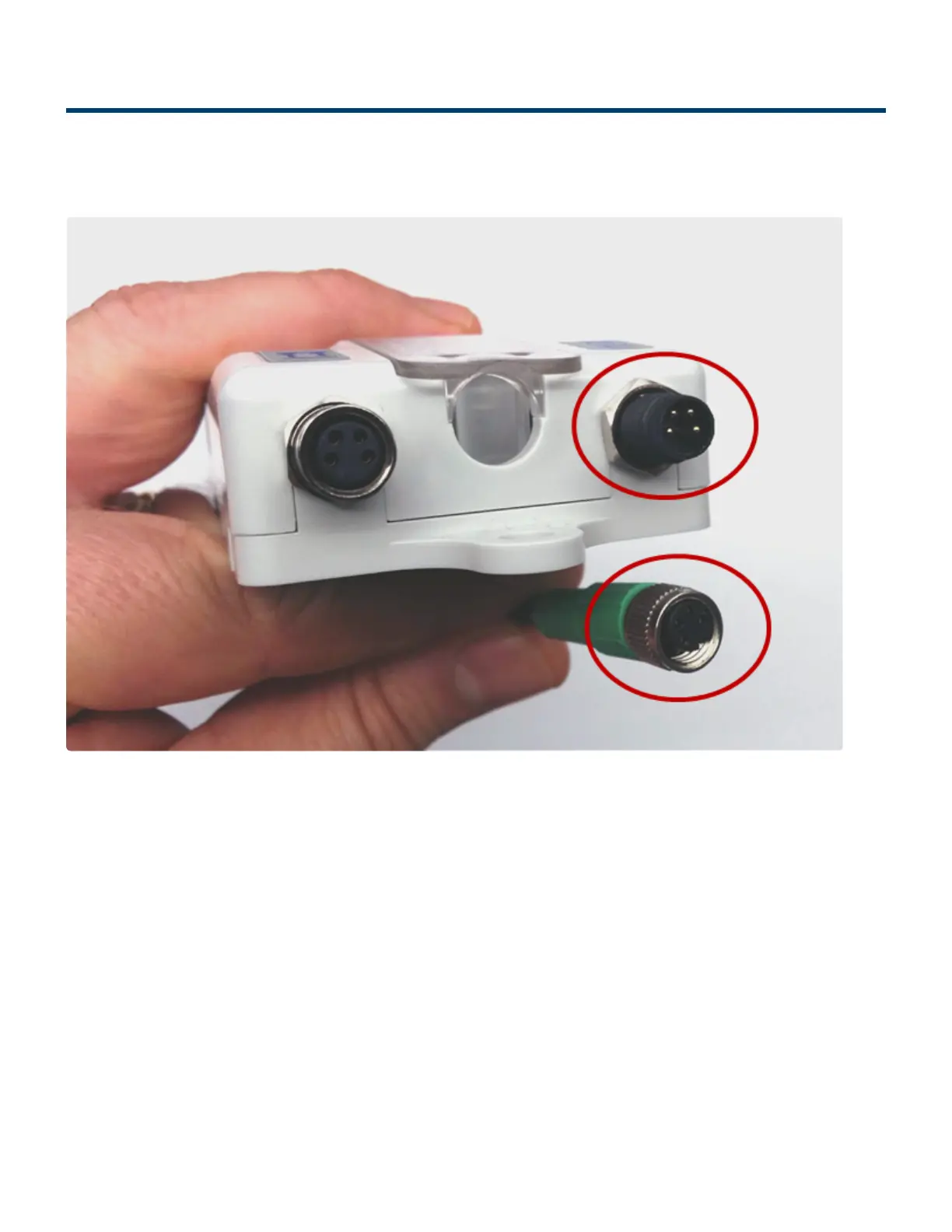

M8 4 Pin Male Motor Port with Senergy Ai Motor Female Connector
4.3. Motor Ports
Both ports utilize a 4-pin M8 male receptacle. Each receptacle is mechanically keyed to assure proper
orientation upon plugging in.
Last modified: Aug 04, 2020
PULSEROLLER ConveyLinx-Ai2 User's Guide - 1.7
Page 15 of 154
