Logic & MDR Power
The Ai2 Module is designed to allow for separate power connections for module logic and motor power so
that these can be powered by separate power supplies. For example, the motor power supply can be
switched off by an emergency stop control system so that all motors have power removed. With the motor
power separately switched off; the logic power supply can remain on so that the module’s communications
can remain active and report status to networked supervisory control system(s). If you use a single power
supply, you only have to connect to the MDR+ power terminal and that will supply power to both the Logic
and MDR.

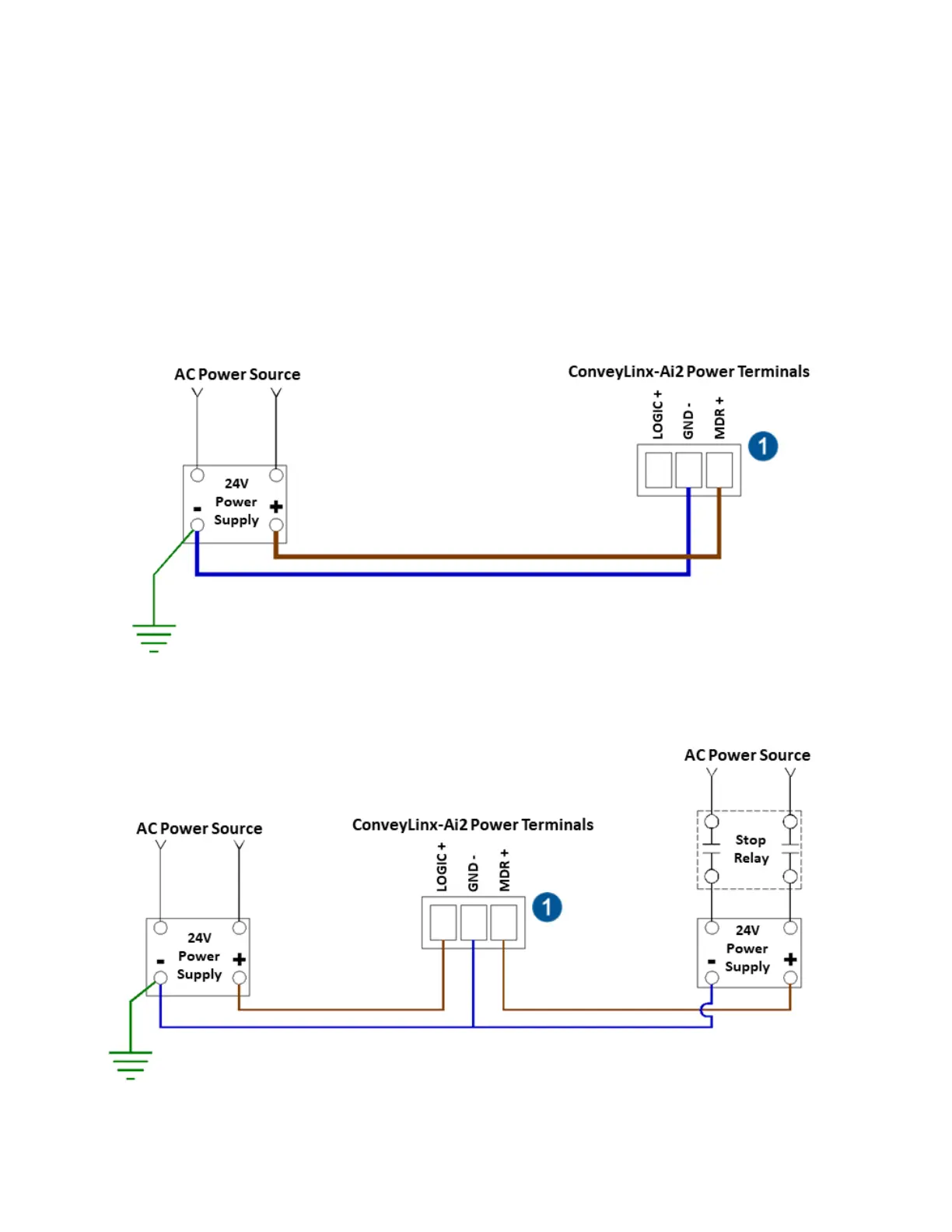

Connection for a single power supply that powers both the logic and motors on the module
Connection for a dual power supply system where the MDR power can be switched off but a separate
PULSEROLLER ConveyLinx-Ai2 User's Guide - 1.7
Page 22 of 154
