An Example

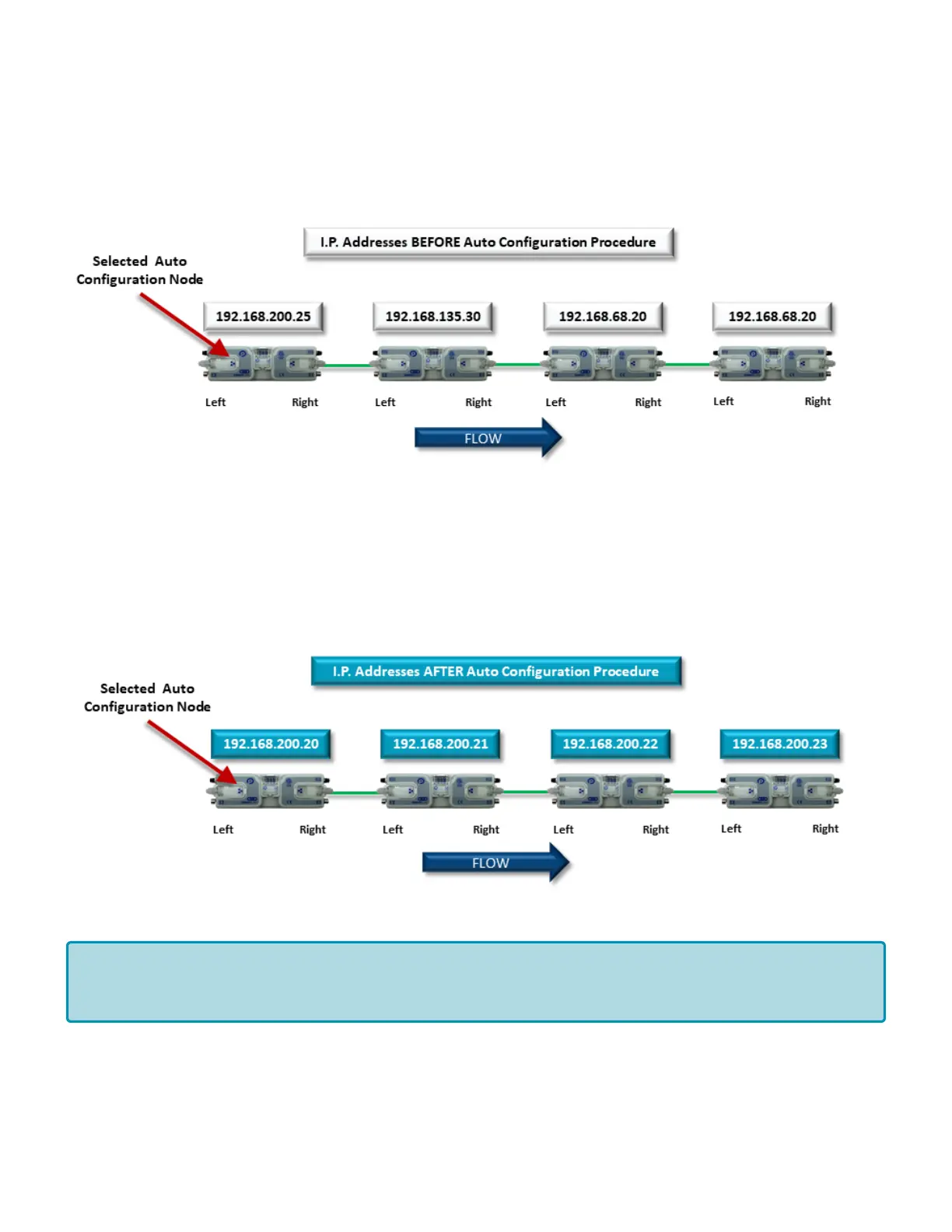

Here is a 4-module network with possible I.P. addresses that could have been on the module from the
factory. Note that their Subnets could be different as well as there could be duplicate addresses.
Once the Most Upstream Module is identified as the Selected Auto-Configuration Node and when the
Auto-Configuration Procedure is performed; all 4 modules will have their I.P. address configured as
shown.
Last modified: Aug 18, 2020
The Auto-Configuration Procedure will assign Nodes up to and including Node 240.
Therefore, each Subnet is limited to 221 Nodes
*
