Pulseroller ConveyLinx-Ai2 User Manual

Module Replacement Using Replacement Button
Disconnect existing module’s motor(s),
network, photo-sensor(s), and power
connections. The order of disconnection
does not matter. Connect new module’s
motor(s), sensor(s), network connections
and power connections. The Module

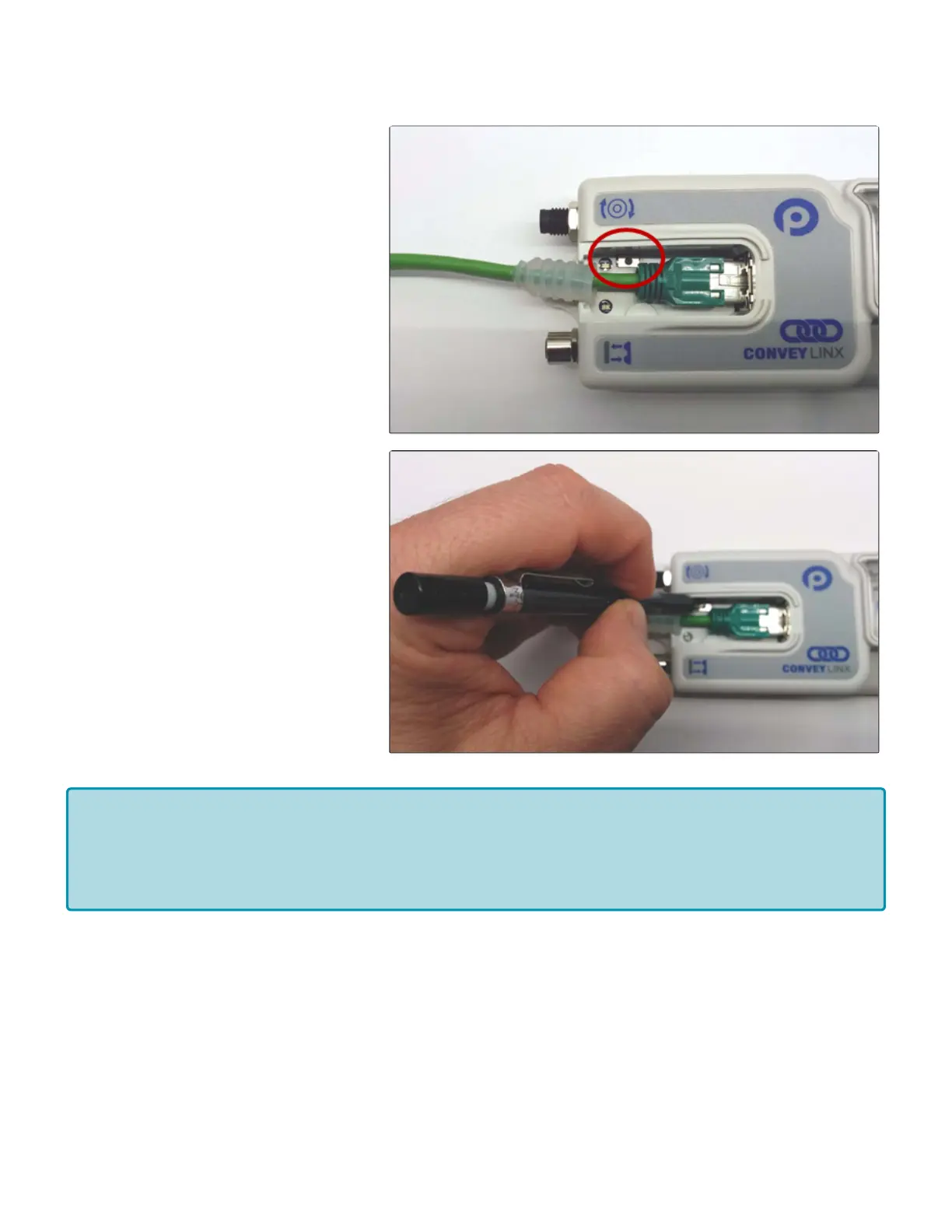

Replacement Button is located in the
Left Ethernet cable compartment.
Remove the compartment cover to gain
access to the button
With a pointed instrument (pencil or small
screwdriver) press and hold the button for
2 seconds until the Status LED flashes
red and then release the button
Last modified: Aug 18, 2020
Please note that the Module Replacement Procedure (either with EasyRoll or Replacement
Button) can take a few minutes to complete. The replaced module will restart itself a
minimum of 4 times during the procedure. It will restart 5 times if firmware is being upgraded
or downgraded
*
