6-6 Advanced adjustments
Printhead & Drive Station Lift
Your QLS-4100 Xe printhead and drive station are mounted to a center-
pivoting shaft. This permits even pressure to be applied across the width of
the media. When using narrow media, the Printhead and Drive Station Lift
Screws allows you to relieve unnecessary pressure against the platen roller
and drive roller. This will prolong the life of the printhead and platen while
providing a more even application of downward pressure onto the media
where it is needed.
Tools Needed:
Slip Joint Pliers

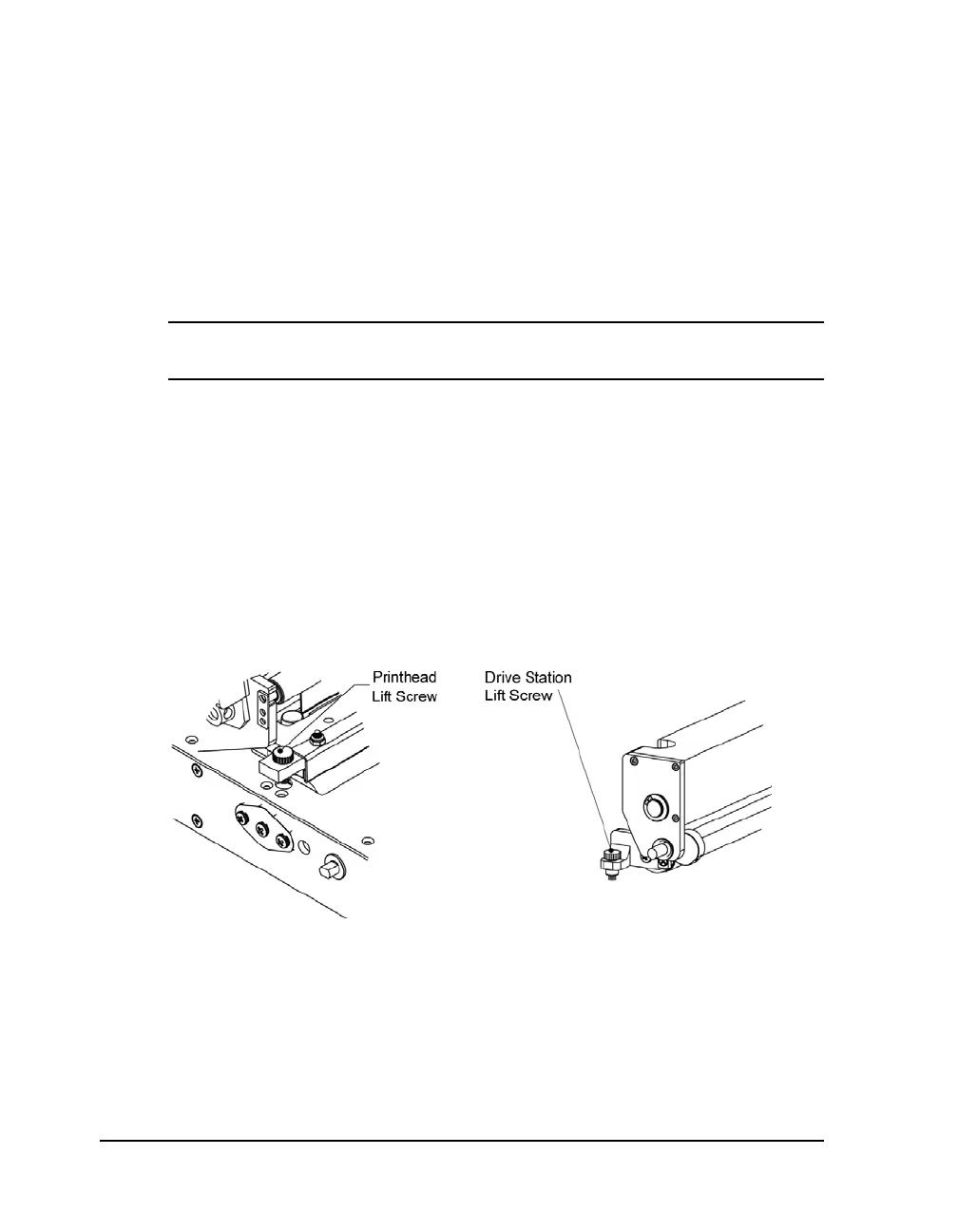

Using a pair of slip-joint pliers grip the Printhead Lift Screw or the Drive
Station Lift Screw
• Turn the screw clockwise to lift the head or station and relieve pressure.
• Turn the screw counterclockwise to lower the head or station and apply
pressure
This adjustment is best performed while the printer is printing so that you
can evaluate print quality as adjustments are made.
