8-8 Print & Peel
Installing the Print & Peel System
Use the following instructions to install the Print & Peel System.
To install the Print & Peel System:
1 Ensure the printer and Print & Peel Base are powered off, and the AC
power cords are removed from the units.
2 Place the Print & Peel Base on a sturdy surface. This surface must be able
to support the combined weight of the QLS-4100 Xe and Print & Peel
Base (300 lbs).

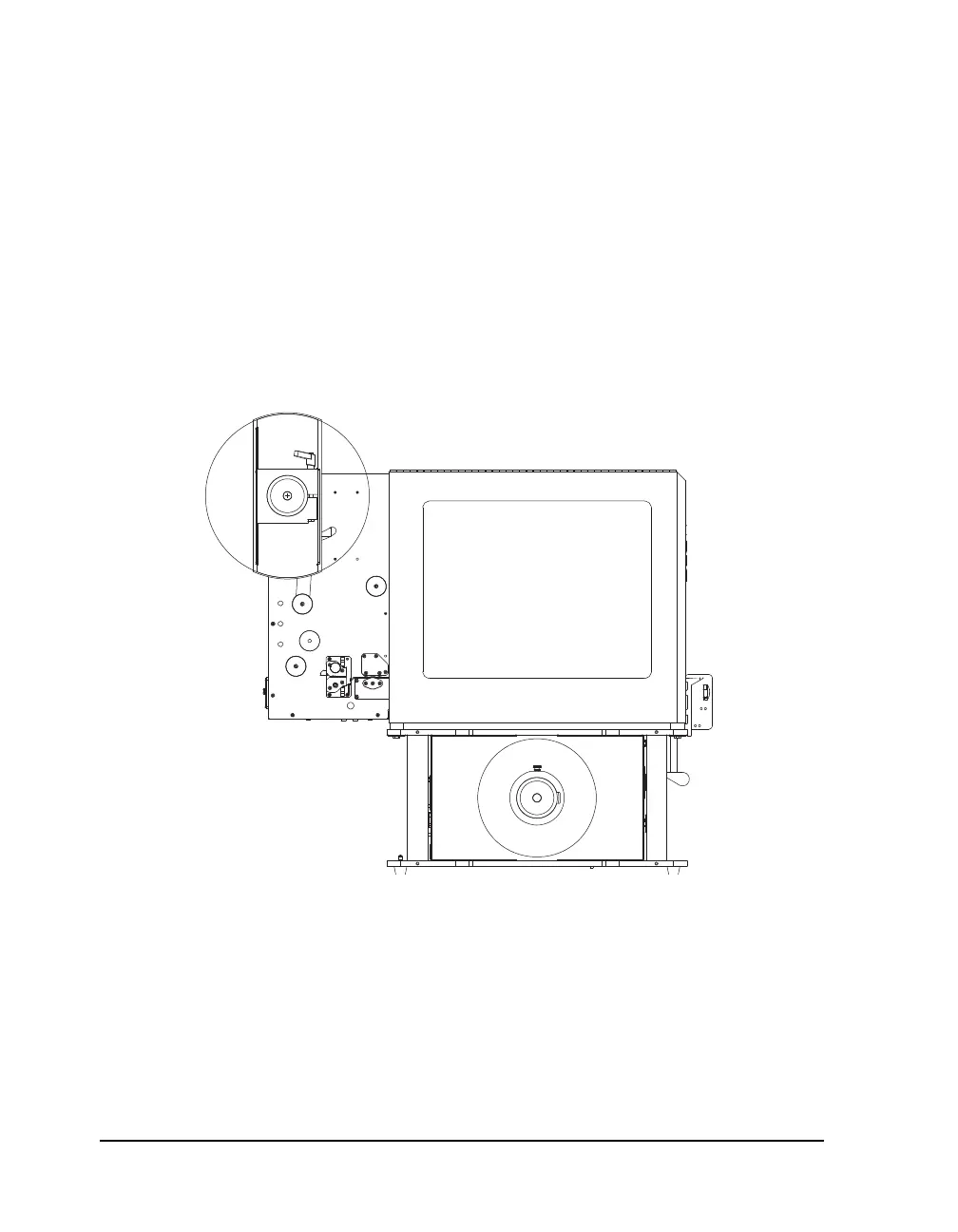

3 Carefully place the QLS-4100 Xe on top of the Print & Peel Base. The
printer is heavy and it is suggested that at least two people lift it.
The QLS-4100 Xe spacer feet fit into the holes on the top plate. On some
units the leg struts must be adjusted by loosening the screws that locate
them. These are inside the unit and require the removal of the right side
cover.
