4-2 Keypad controls and menus

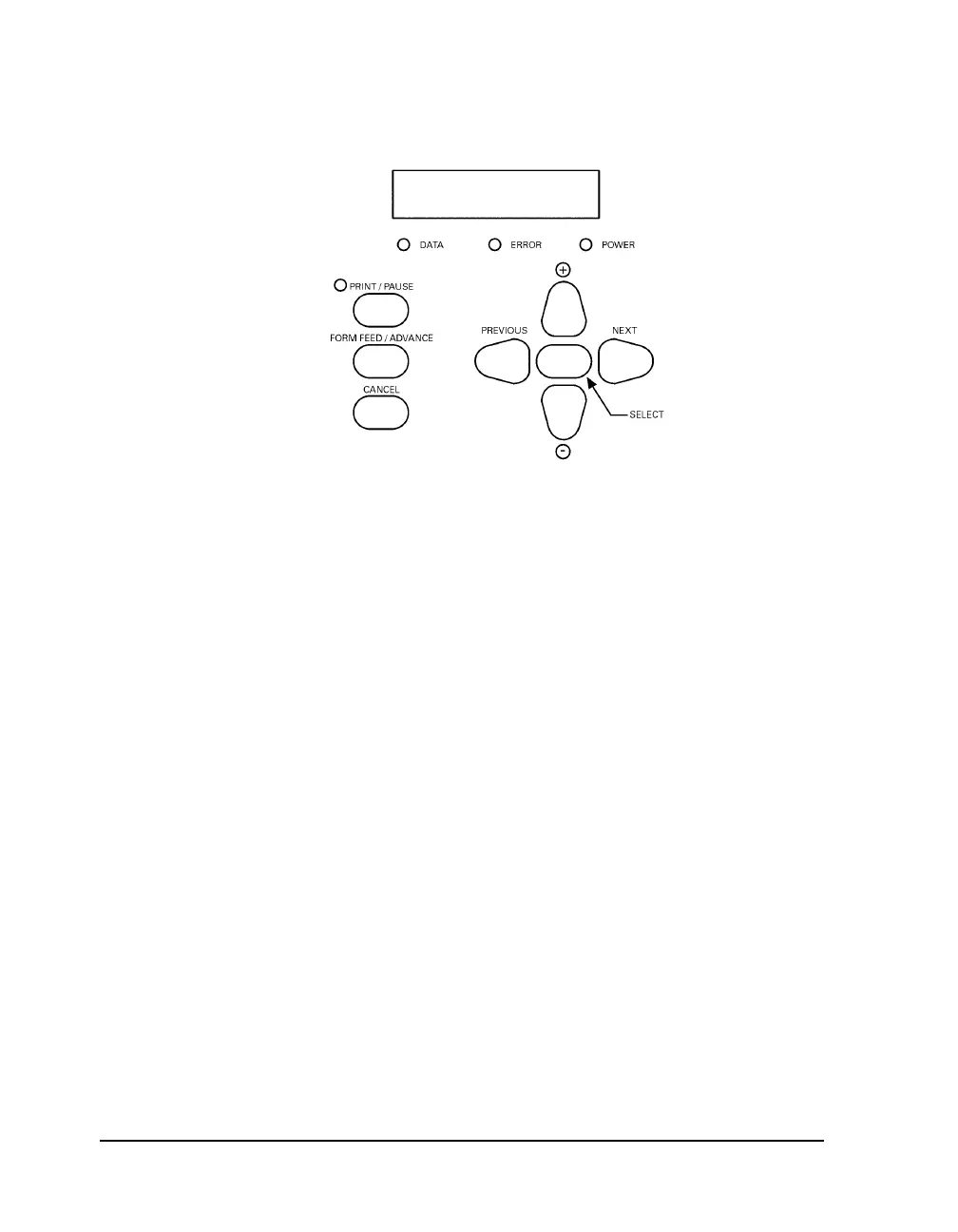

Keypad Layout and Functions
The keypad buttons perform the following general functions.
PRINT/PAUSE
Toggles the printer between Ready and Pause
states
Pauses or resumes printing
If viewing a sub-menu, returns you to main
Pause menu
FORM FEED/ADVANCE
When the printer is in a Pause state, feeds the
media by one calibrated label length each time
the key is pressed, or continually advances the
media when the key is held
CANCEL
Cancels the current label(s) or test pattern
PREVIOUS/NEXT
Cycles the display though menu choices
Displays current settings for various printer
parameters
+
Increases values within menus
-
Decreases values within menus
SELECT
Accepts the displayed setting
Pressing select twice returns user to top-level
menu
