8-16 Print & Peel

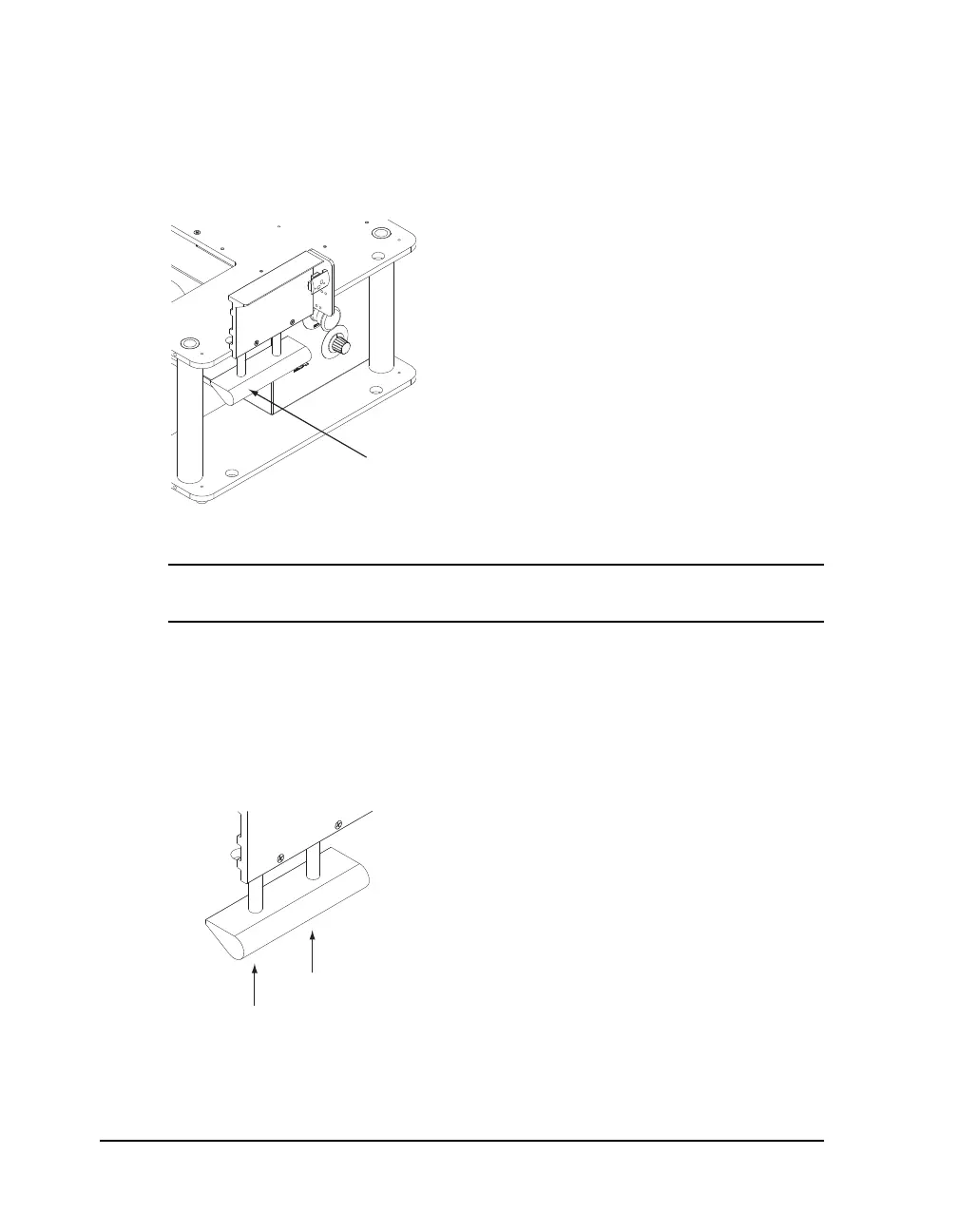

Adjusting the Liner Guide
The liner should track in alignment with the core as labels are printed. If the
liner drifts inward or outward, you can adjust the liner guide to correct the
tracking.
The appropriate liner guide position will vary according to the media width.
Required Tools:
5/32 Allen wrench
Ensure the media is tracking correctly through the QLS-4100 Xe before
adjusting the liner guide.
To adjust the liner guide:
1 Loosen the two 5/32 set screws located on the underside of the liner
guide.
The holes for the set screws are slotted. Push the liner guide all the way
toward the rear of the printer. This will be the initial staring position for
the liner guide.
