QLS-4100 Xe 2-13

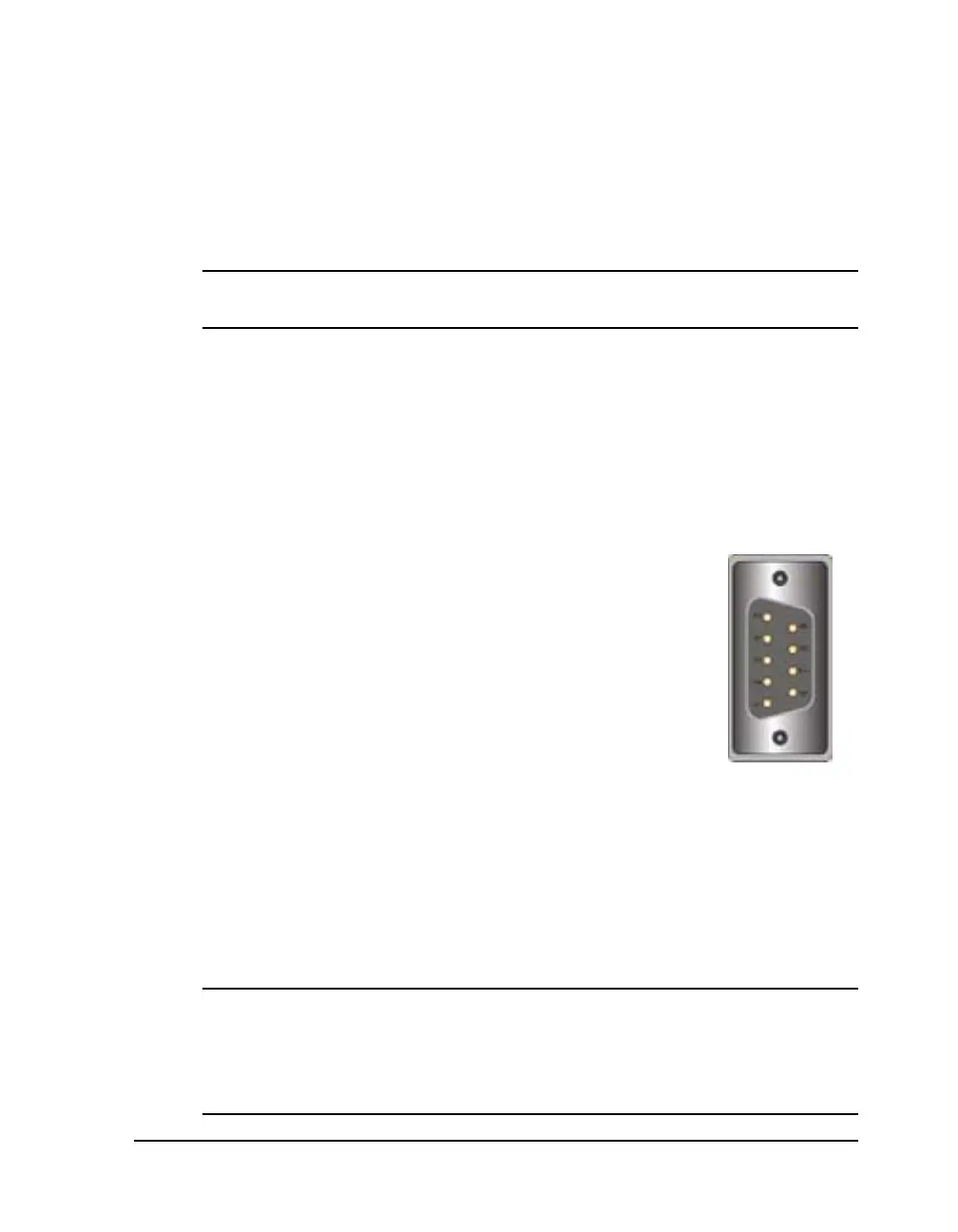

Utility Port Connection
On the rear panel of the printer, the Utility Port permits connection to
external devices such as the optional QuickLabel Cutter and Cutter/Stacker
or a label applicator system. The assignment of pin functions on the utility
port depends on the mode of operation. For information regarding
applicator mode operation, please contact QuickLabel.
Warning: Exceeding the limits of the utility port signals can result in damage
to the printer.
Standard Mode
Pin Signal Notes
1 N/C
2 Ground
3 Cutter On/Off Output (1=on 0=off)
4 5 VDC 1A max
5 Cutter Error Input (1=error 0=no error)
6 Cutter Pulse 4-6 ms pulse output
7 N/C
8 Pause Input
(1=print 0=pause)
9 Error
5
1
9
6
Applicator Mode
Pin Signal Notes
1 N/C
2 Ground
3 Printing Output (1=printing)
4 N/C
5 N/C
6 N/C
7 N/C
8 Go Input (1=initiate print)
9 Skip/Apply Output (1=apply 0=skip)
Notes: If you are using a cutter or cutter/stacker, refer to the unit’s setup and
operation manual for information on setting up the unit with your printer.
Functionality may be modified via host commands. For information, see the
QuickLabel Programmer's Reference (PN 22834615-EN-E).
