13.3 ROV Installation Examples

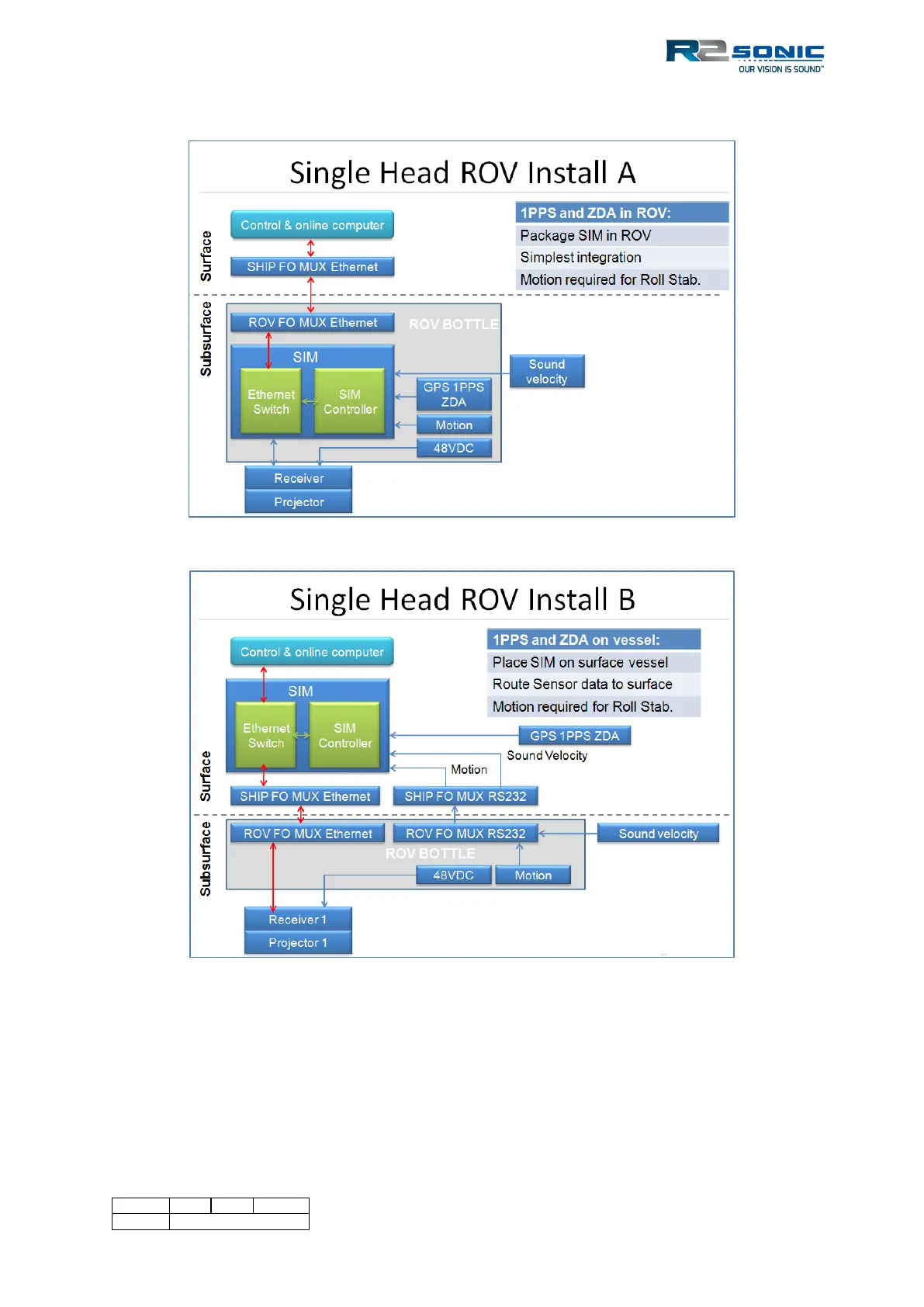

Figure 189: Single Head ROV Installation scheme A
Figure 190: Single Head ROV Installation scheme B (Preferred)
