2.9 Acoustic Centre

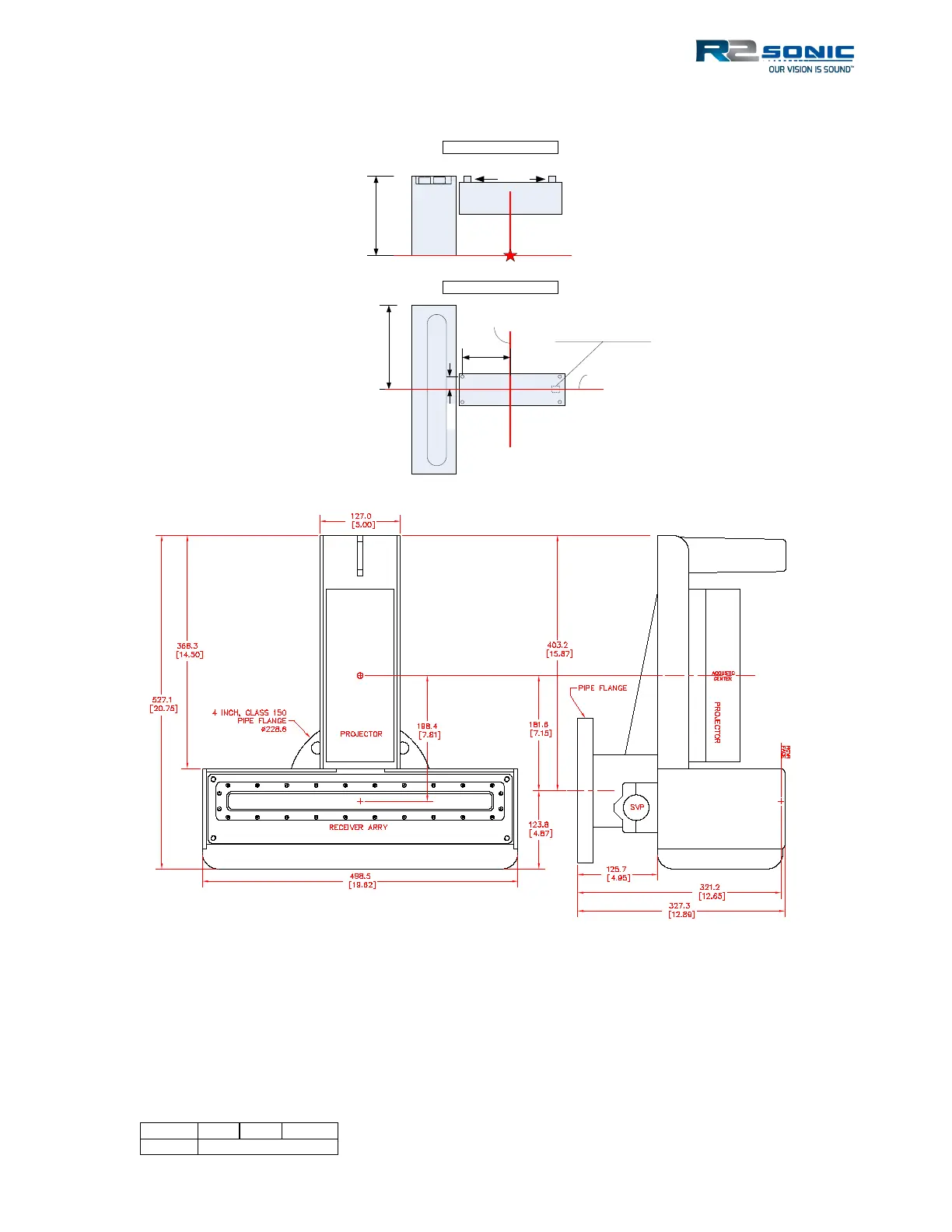

Figure 2: Sonic 2024 Acoustic Centre
Figure 3: Sonic 2024 Acoustic Centre, as Mounted
Centre of Flange to Alongship offset = 0.182m (0.597ft)
Top of Flange to Z reference = 0.318m (1.043ft)
Alongship ref
Athwartship
ref
Z
Reference
FOREAFT
SONIC 2024 Side View
SONIC 2024 Plan View
120mm
39mm
187mm
240mm
Connector under
35mm
standoffs
Acoustic Centre
