Page 37 of 254
3.1.4.2 Projector cable clamp
The clamp, for the projector cable, is also in two parts. The projector cable clamp replaces one of
the projector’s standard standoffs. The projector cable clamp requires an updated projector
housing but can be retrofitted to previous projectors at the customer’s request.

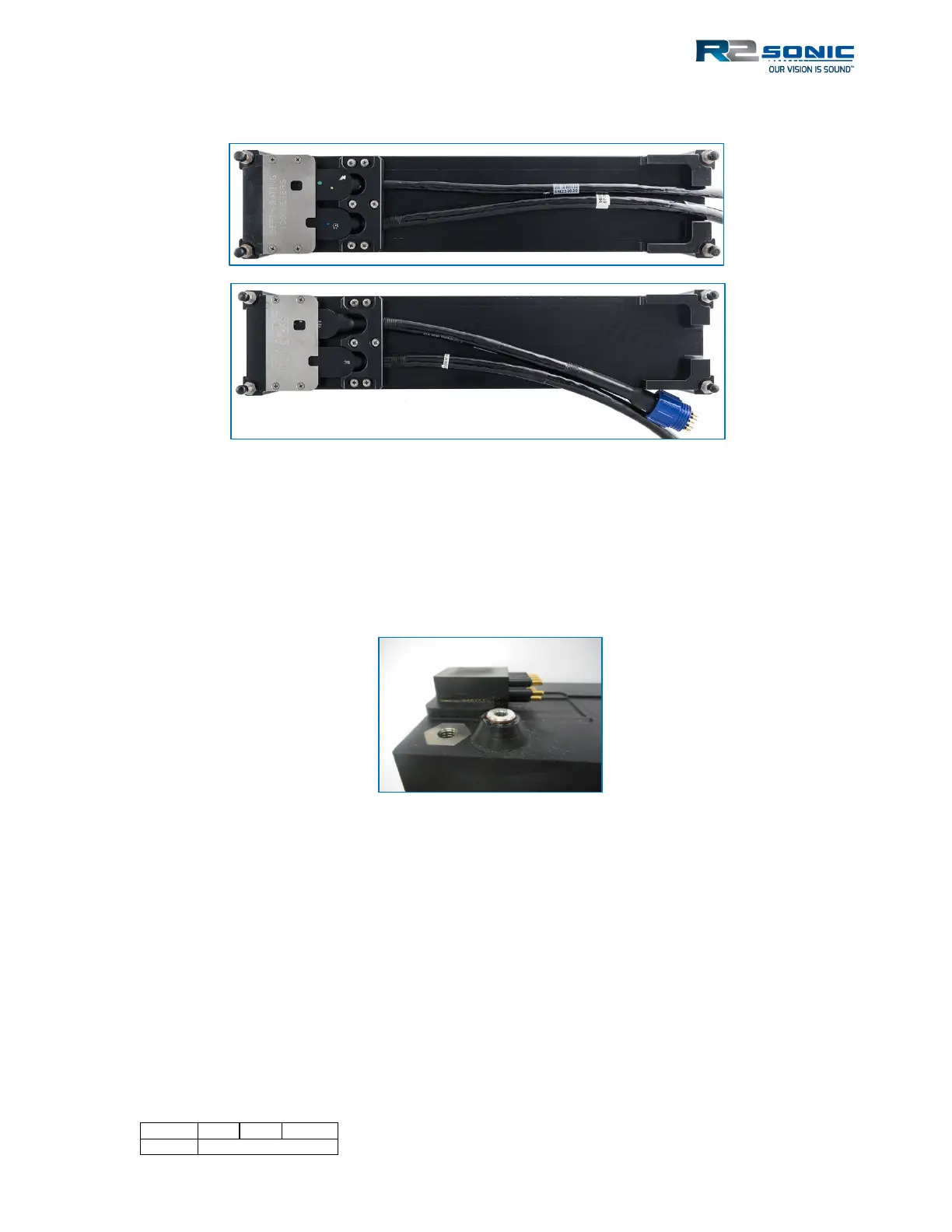

Figure 19: Updated Projector housing
A small, lower, bracket is placed under the cable, and then a larger block is placed over the top and
secured to the housing. The upper bracket replaces the stand-off that would normally be positioned
at this end of the projector. The mounting bracket bolts that secure the projector to the mounting
bracket pass through the two smaller holes on the edge of the large upper bracket.
Figure 18: Sonic 2024; Standard decklead on top; Penetrator decklead on bottom
