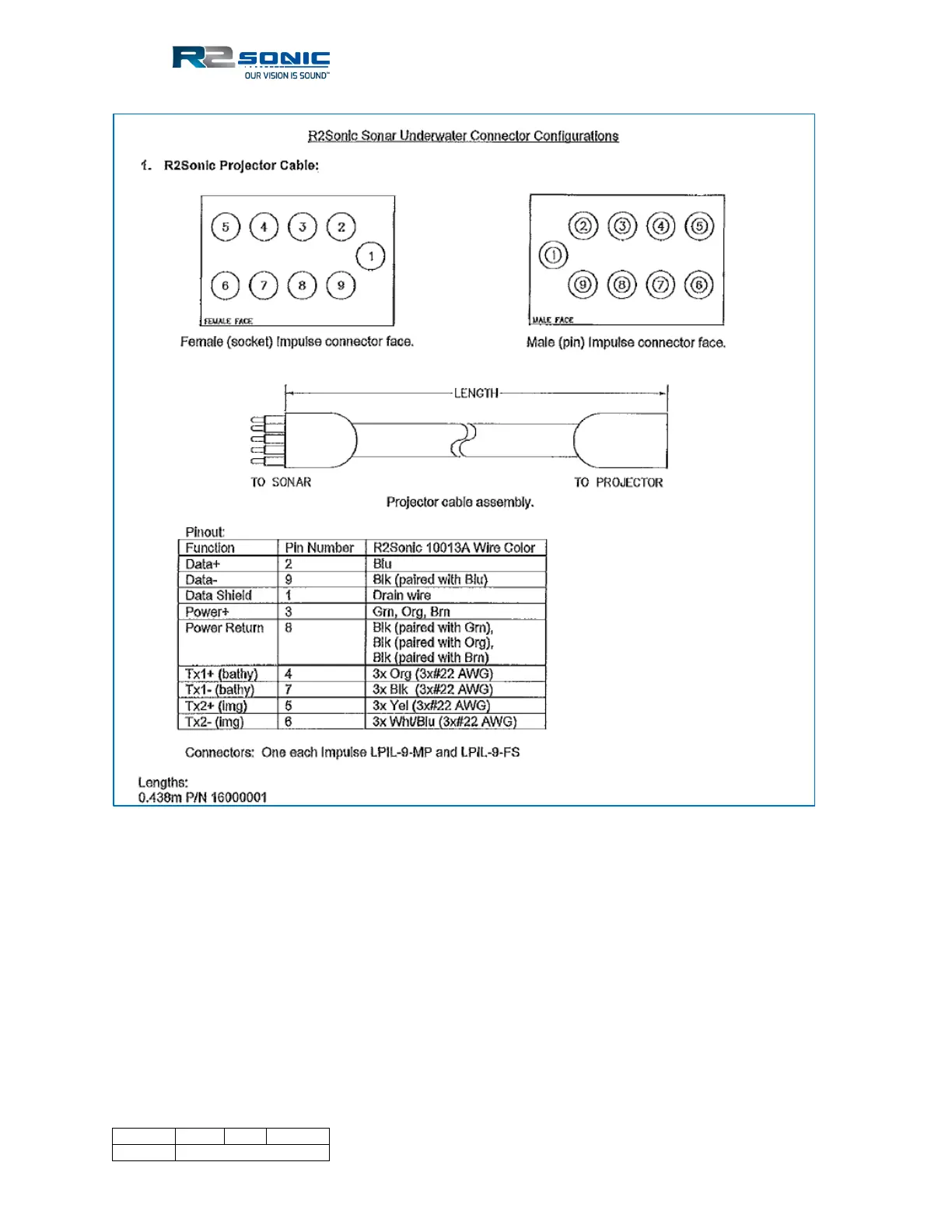

Figure 41: Projector cable configuration
As of 17 March 2020, the projector cable has been standardised to part number 10228, with a
diameter of 9.906mm (0.39 inches). The older model, in Figure 41, has a diameter of 10.16mm (0.40
inches).
