R2Sonic 2026 - Table 11: as of March 2021 Deck Lead Pin Assignment

Page 53 of 254
Version
6.3
Rev
r012
Date
05-11-2022
As of March 2021, R2Sonic has standardised on one cable, R2Sonic 10288 (R2Sonic part number
37500005) Ø10.16mm (0.40”).
Function
MCIL12F
Pin Number
PT06J14-12P
Pin Number
R2Sonic 10288 Wire
Colour
Data1+
4
A
White (paired with Blue)
Data1-
5
B
White/Blue
Data2+
7
C
White (paired with Green)
Data2-
8
D
White/Green
Data3+
11
E
White (paired with Brown)
Data3-
12
F
White/Brown
Data4+
9
G
White (paired with Orange)
Data4-
10
H
White/Orange
None
6 and 3
n/c
n/c
Power +
1 (Both Red and
White)
J,M
Non-Paired Red 20 awg to J
Non-paired White 20 awg to M
Power
Return
2 (Both Black
and Green)
K,L
Non-paired Black 20 awg to K
Non-paired Green 20 awg to L

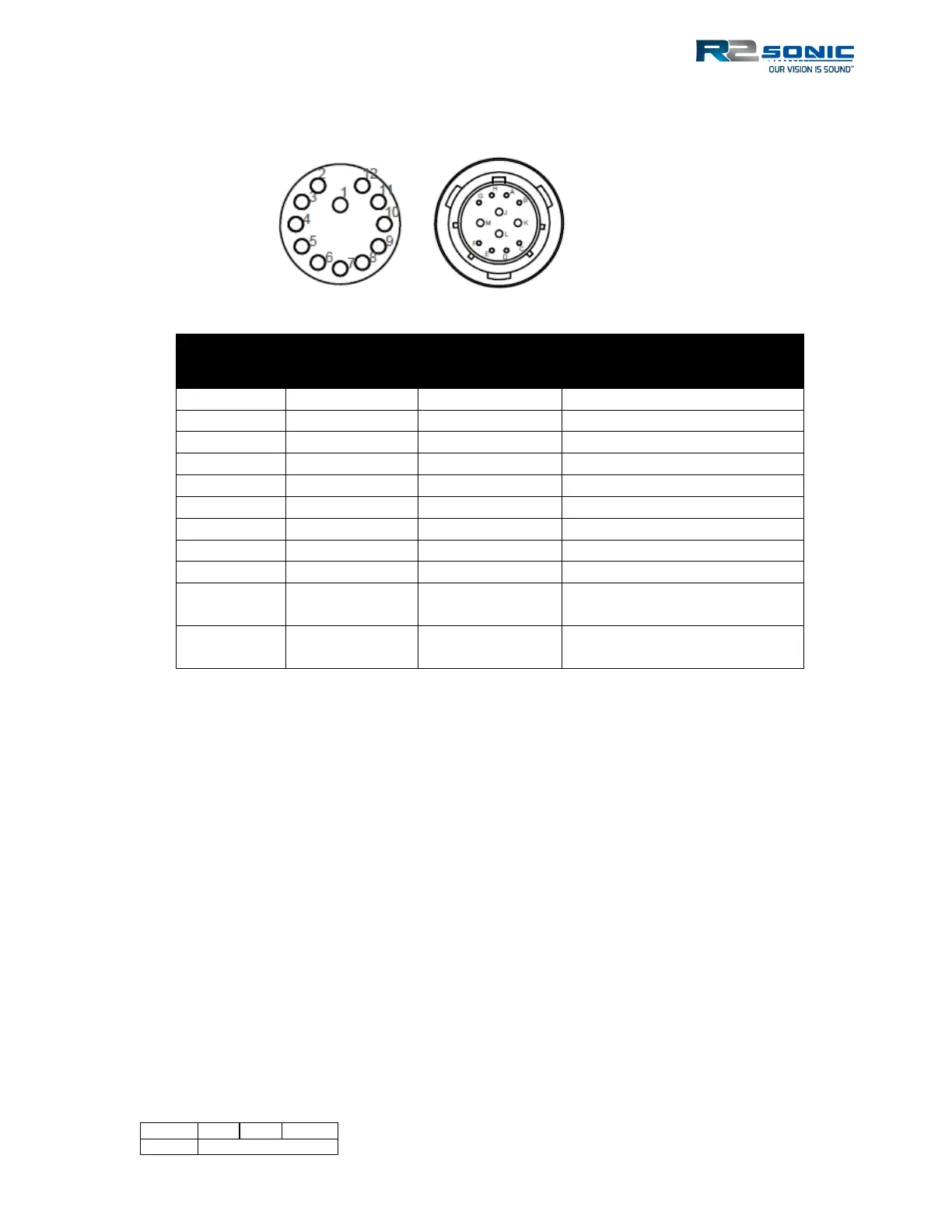

Table 11: As of March 2021, Deck Lead Pin Assignment
Socket
Pin
