R2Sonic 2026 - Figure 4: Sonic 2022 Acoustic Centre; Figure 5: Sonic 2022 Acoustic Centre, as Mounted

Page 30 of 254
Version
6.3
Rev
r012
Date
05-11-2022
Part No. 96000001

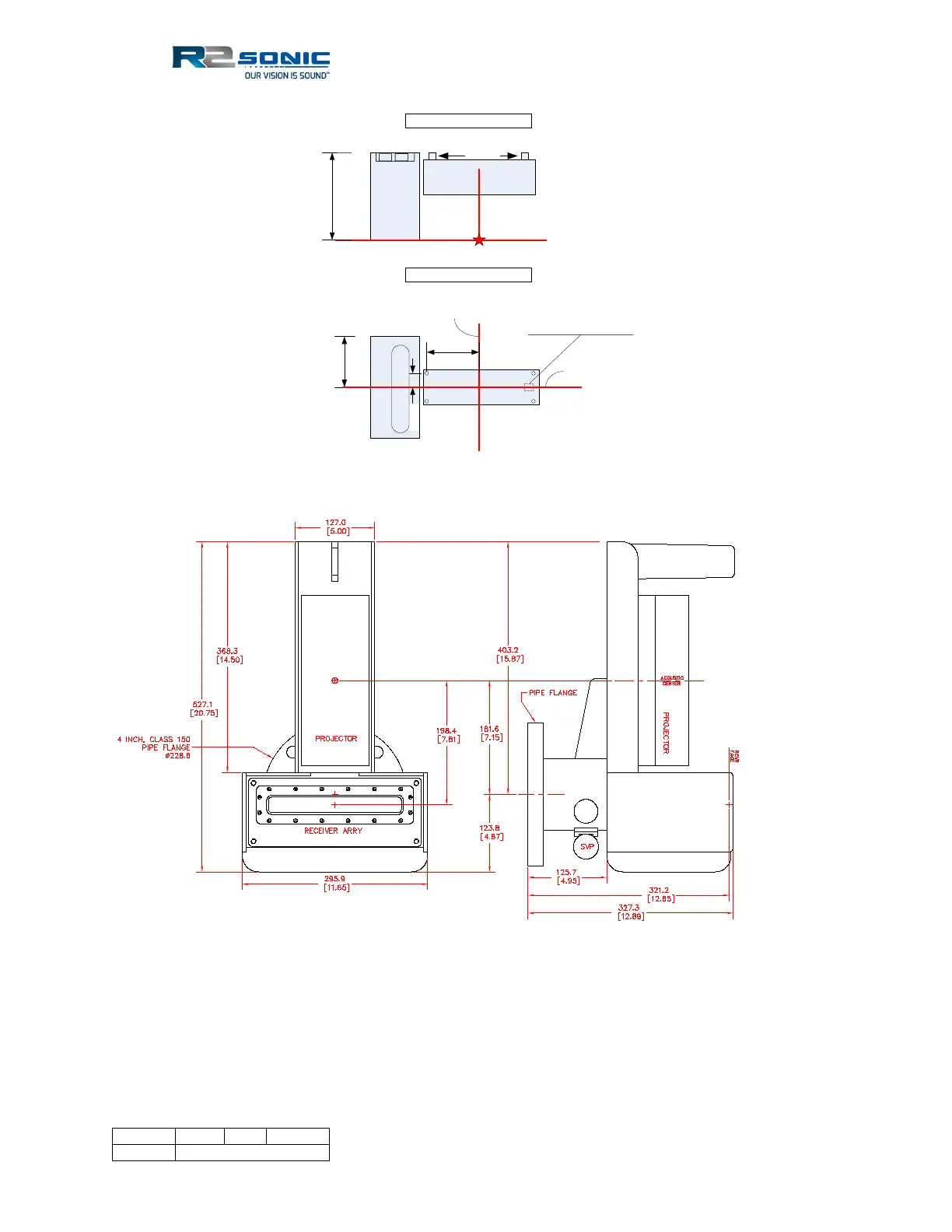

Figure 4: Sonic 2022 Acoustic Centre
Figure 5: Sonic 2022 Acoustic Centre, as Mounted
Centre of Flange to Alongship offset = 0.182m (0.597ft)
Top of Flange to Z reference = 0.318m (1.043ft)
Alongship ref
Athwartship
ref
Z
Reference
FORE
AFT
SONIC 2022 Side View
SONIC 2022 Plan View
120mm
39mm
187mm
138mm
Connector under
35mm
standoffs
Acoustic Centre
