Page 42 of 254
Part No. 96000001

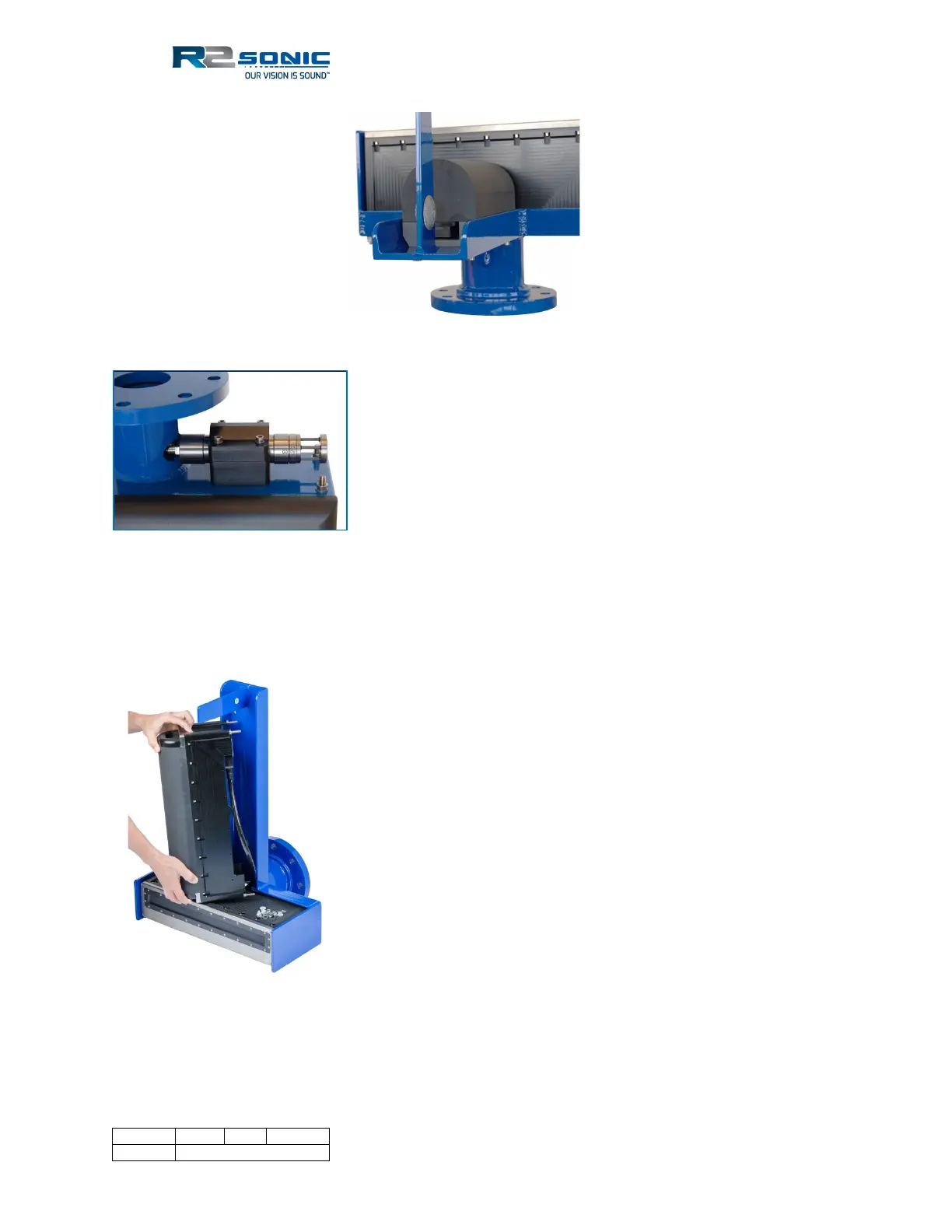

Figure 30: View of the mounted Projector; NB. The connector is facing protective fin
Figure 31: SV Probe mounted in block
3.1.6 Mounting the Sonic 2026 Projector
The 2026 Projector is mounted within the same style housing as the receiver and is thus mounted in
the same way that the receiver is mounted using the same isolation collars, washers and nuts.
Figure 32: Mounting the Sonic 2026 Projector
