sonar is put to 700kHz and the power adjusted for that frequency. If this is not done, it could be the
Power setting may be too low for 700kHz, and the result will be noise instead of a good bottom
return.
For a dual head installation, MultiMode will automatically go to a dual head configurable condition.

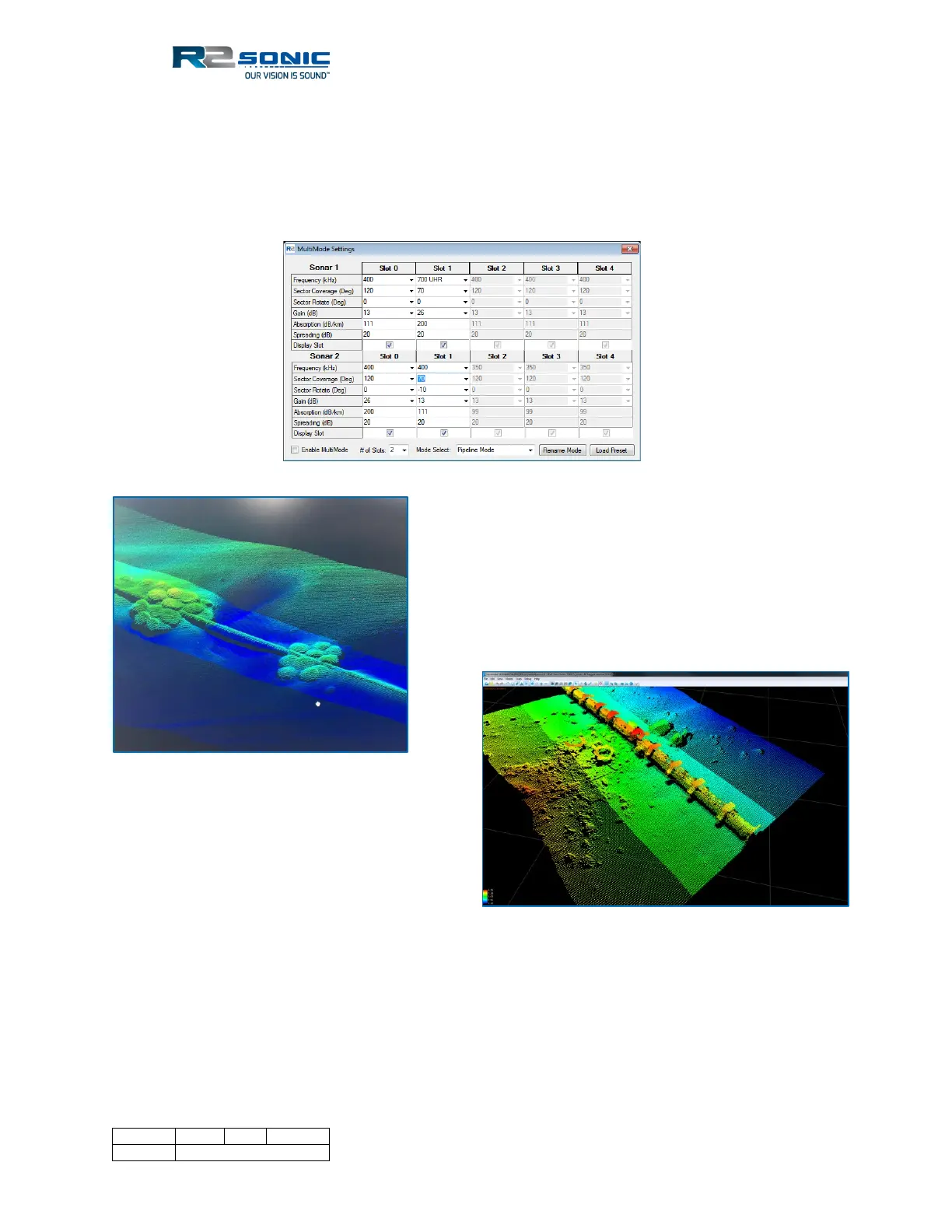

Figure 91: Dual Head Multimode
Figure 93: Pipeline Mode (image courtesy of DOF
Subsea)
Figure 92: Pipeline Mode (courtesy of Swathe Services)
