RADWAG PUE HX7 - Pins Assignment

12

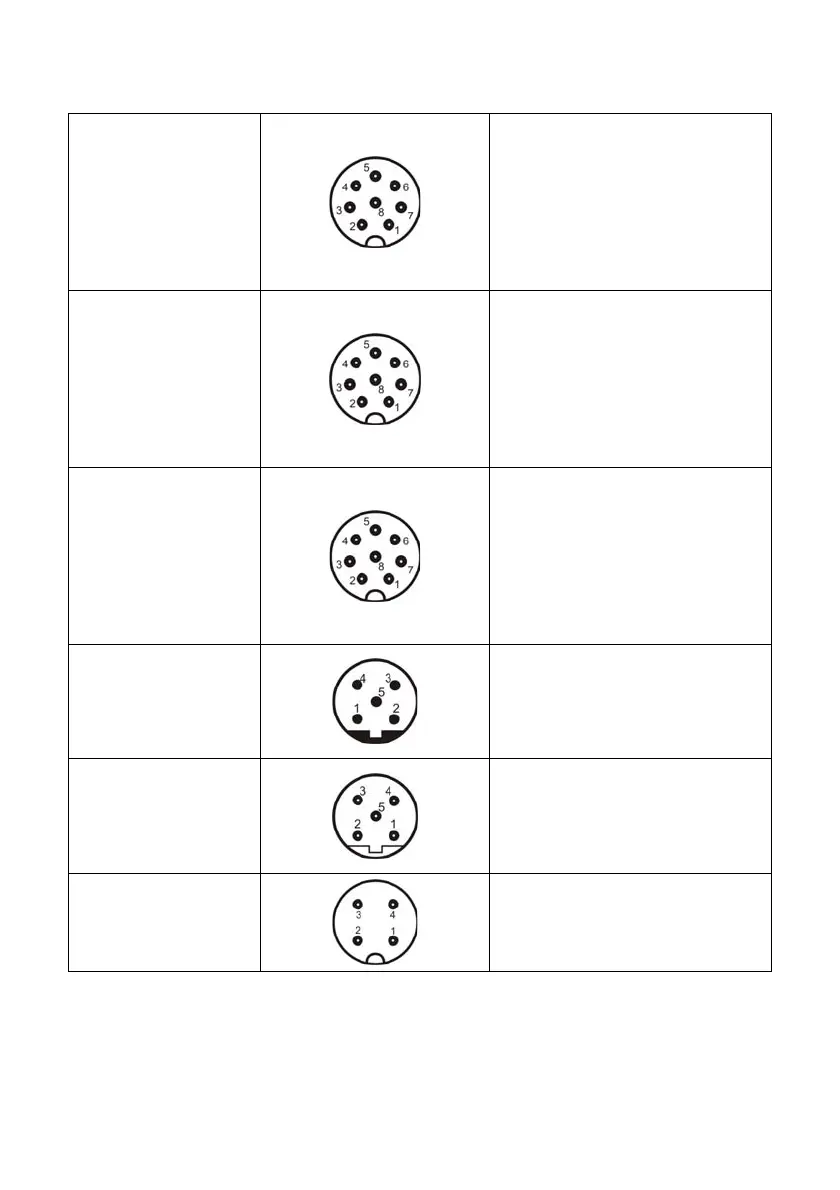

5.3. Pins Assignment
RS232
RS232 (2)
RS232 (3)
Pin1 – NC
Pin2 – RxD
Pin3 – TxD
Pin4 – NC
Pin5 – GND
Pin6 - +5VDC
Pin7 – GNDZ
Pin8 – 24VDC
4INPUTS
Pin1 – OUT1
Pin2 – OUT2
Pin3 – OUT3
Pin4 – OUT4
Pin5 – COM
Pin6 – 24VDC
Pin7 – GND
Pin8 – NC
4OUTPUTS
Pin1 – IN1
Pin2 – IN2
Pin3 – IN3
Pin4 – IN4
Pin5 – COM
Pin6 – 24VDC
Pin7 – GND
Pin8 – NC
PROFIBUS IN
(female)
Pin1 – NC
Pin2 – A
Pin3 – NC
Pin4 – B
Pin5 – NC
PROFIBUS OUT
(male)
Pin1 - +5V
Pin2 – A
Pin3 – GND
Pin4 – B
Pin5 – NC
USB 2
Pin1 – Vcc
Pin2 – D-
Pin3 – D+
Pin4 – GND
