Remote Control - Commands
R&S
®
NRP2
205User Manual 1173.9157.02 ─ 03
System Function
READ
Starts measurement and retrieves measurement results (high-level commands)
SENSe
Configures sensors and determines the processing of the measured data in the
sensors
STATus
Configures and queries the chapter 5.8.4, "Status Reporting System",
on page 181.
SYSTem
Performs different system settings that affect the operation of the R&S NRP2.
TRIGger
Configures timing conditions for start of measurement
UNIT
Sets output unit of the measured values.
6.3.1 SENSe System

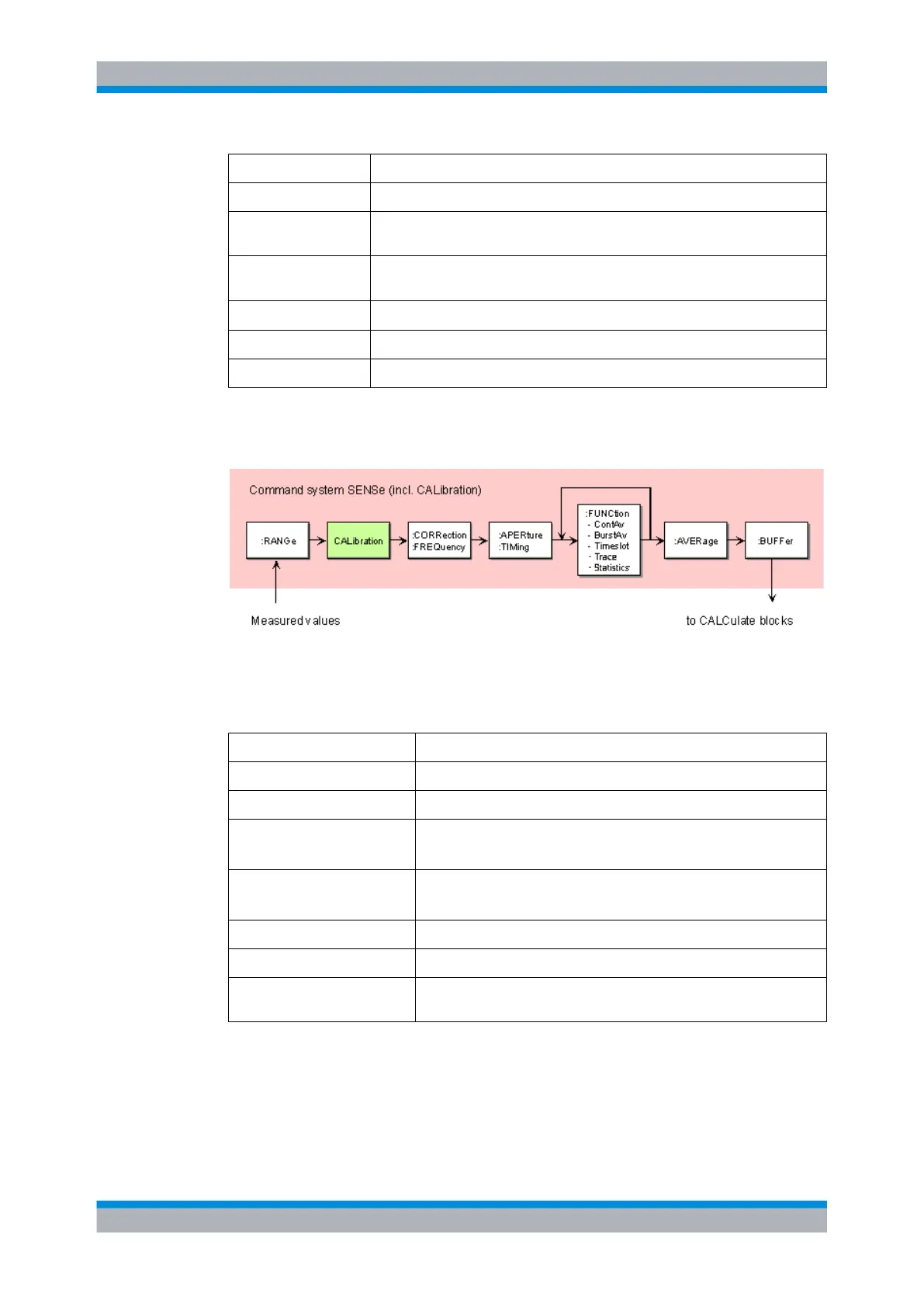

Fig. 6-2: SENSe system
This command system is used for configuring the sensors and determines the processing
of measured data in the sensors. The blocks have the following functions:
SENSe Block Function
:RANGe
Shifts the range boundaries to increase the measurement accuracy.
CALibration
Is a command system of its own and responsible for sensor calibration.
:CORRection
:FREQuency
Corrects measured values in three steps (fixed offset value, frequency-
dependent offset value and duty cycle).
:APERture
:TIMing
Determines the timeslot in which power values are averaged.
:FUNCtion
Determines a measurement mode.
:AVERage
Filters the measured values.
:BUFFer
Stores the measured values temporarily to optimize the speed of data
transmission to the remote controller.
Overview of SCPI Command Systems
