R&S NRP2 - Effect of the Rf Source

Instrument Functions
R&S
®
NRP2
84User Manual 1173.9157.02 ─ 03
Offset
Negative dB value as a measure for the shift of the transition region(s).
Modifications are immediately effective after each keystroke (see chapter 3.5, "Dialog
boxes and their controls", on page 53).
SCPI command:
[SENSe<[1]..4>][:POWer][:AVG]:RANGe:CLEVel on page 271
4.2.5 Effect of the RF source
Information related to the reflection coefficient Γ of the signal source is provided in the
"Γ Correction" dialog box (gamma correction). Γ Correction is used to increase measure-
ment accuracy by correcting the effect of source mismatch on the measured value.
4.2.5.1
Sensor Γ correction dialog box
►
Open the Γ correction dialog box in the "Sensor "menu
If "Γµ correction" is activated, the measurement accuracy can be increased by specifying
magnitude and phase of source Γ.

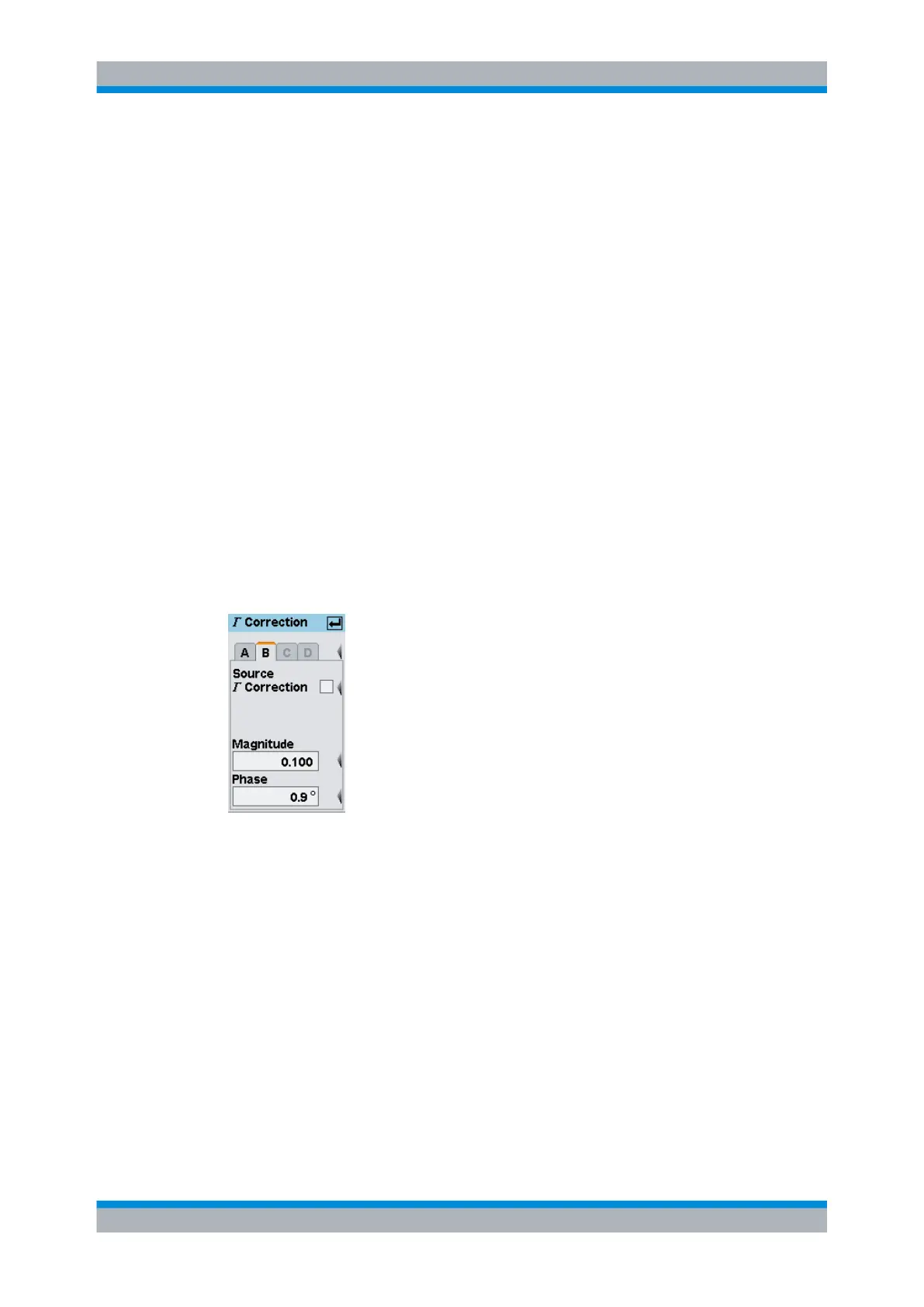

Fig. 4-19:
Γ Correction dialog box
A | B | C | D
Tabs for selecting the sensor.
Note: In remote-control commands, select the sensor with the suffix in command
SENSe<[1]..4>:..., i.e. choose suffix 1 for channel A, channel 2 for B, and so on.
Source Γ Correction
Activates gamma correction in order to achieve higher measurement accuracy.
SCPI command:
[SENSe<[1]..4>]:SGAMma:CORRection:STATe on page 278
Data acquisition and parameters
