Instrument Functions
R&S
®
NRP2
85User Manual 1173.9157.02 ─ 03
Source Γ Magnitude
Magnitude of the source reflection coefficient Γ.
SCPI command:
[SENSe<[1]..4>]:SGAMma[:MAGNitude] on page 277
Source Γ Phase
Phase angle of the source reflection coefficient Γ in degrees.
SCPI command:
[SENSe<[1]..4>]:SGAMma:PHASe on page 277
4.2.6 Trigger settings
The trigger system is required for the "Trace & Statistics", "Timeslot Av", "Timegate Av",
and "Burst Av" measurement modes.
► Configure the trigger system in the "Trigger" dialog box which is opened via the
"Sensor" menu, or via the control panel of the respective trace mode.
Trigger dialog box, page1
The first page covers the parameters for defining a trigger mode, trigger source, and
trigger level.

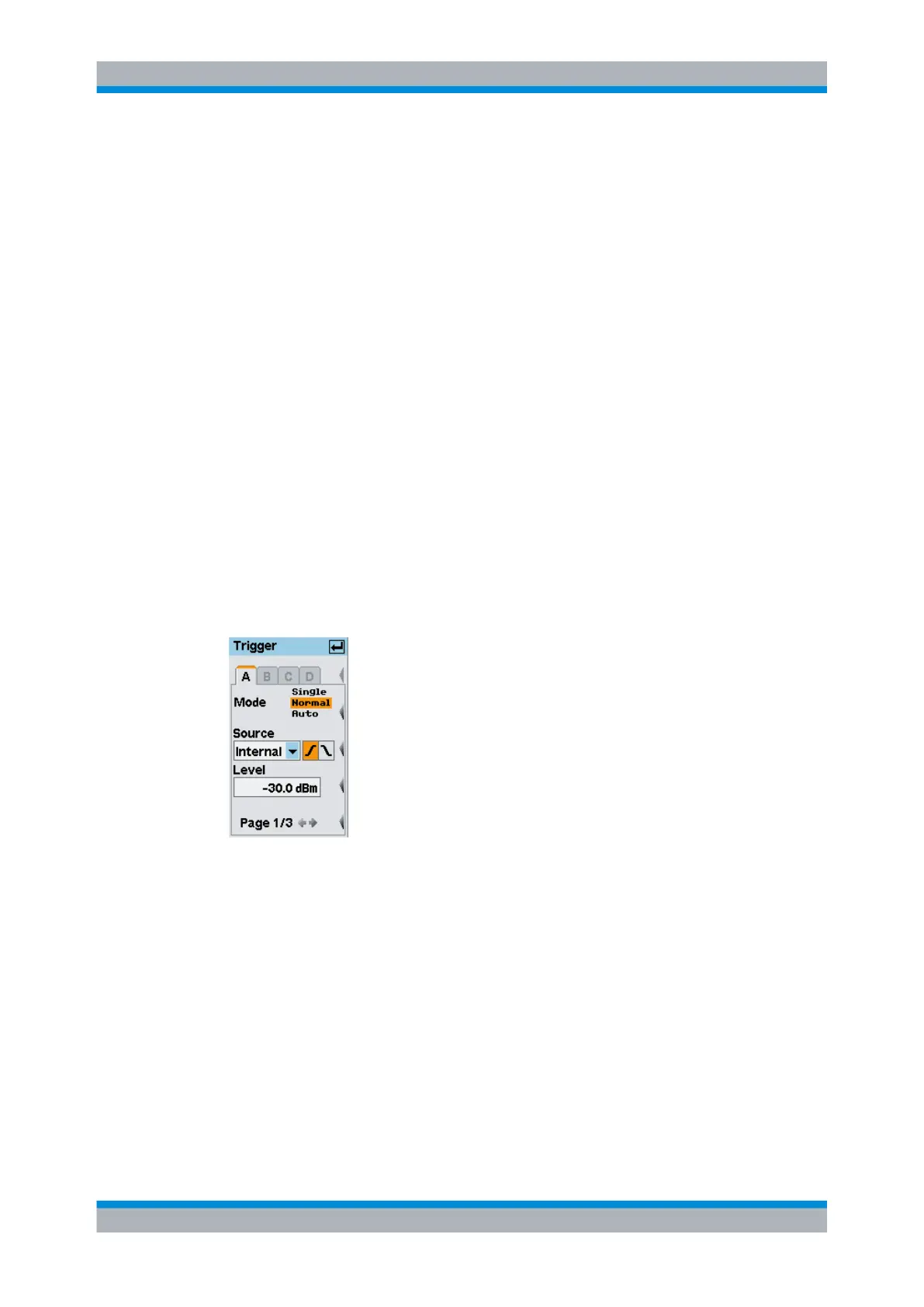

Fig. 4-20: Trigger dialog box, page1
A | B | C | D
Tabs for selecting the sensor.
Note: In remote-control commands, select the sensor with the suffix in command
SENSe<[1]..4>:..., i.e. choose suffix 1 for channel A, channel 2 for B, and so on.
Mode
Selects the trigger mode.
Selections "Single" and "Normal" are only available in "Trace&Statistics" measurement
mode.
Data acquisition and parameters
