R&S NRP2 - Sense (Sensor Commands); Output:trigger[:State]

Remote Control - Commands
R&S
®
NRP2
259User Manual 1173.9157.02 ─ 03
Power
Voltage
OUTP:TTL:HVOLT
DISP:LIM:LOW DISP:LIM:UPP
OUTP:TTL:LVOLT
DISP:LIM:LOW DISP:LIM:UPP
OUTP:TTL:ACT HIGH
(OUTP:TTL:FAIL LOW)
OUTP:TTL:ACT LOW
(OUTP:TTL:FAIL HIGH)

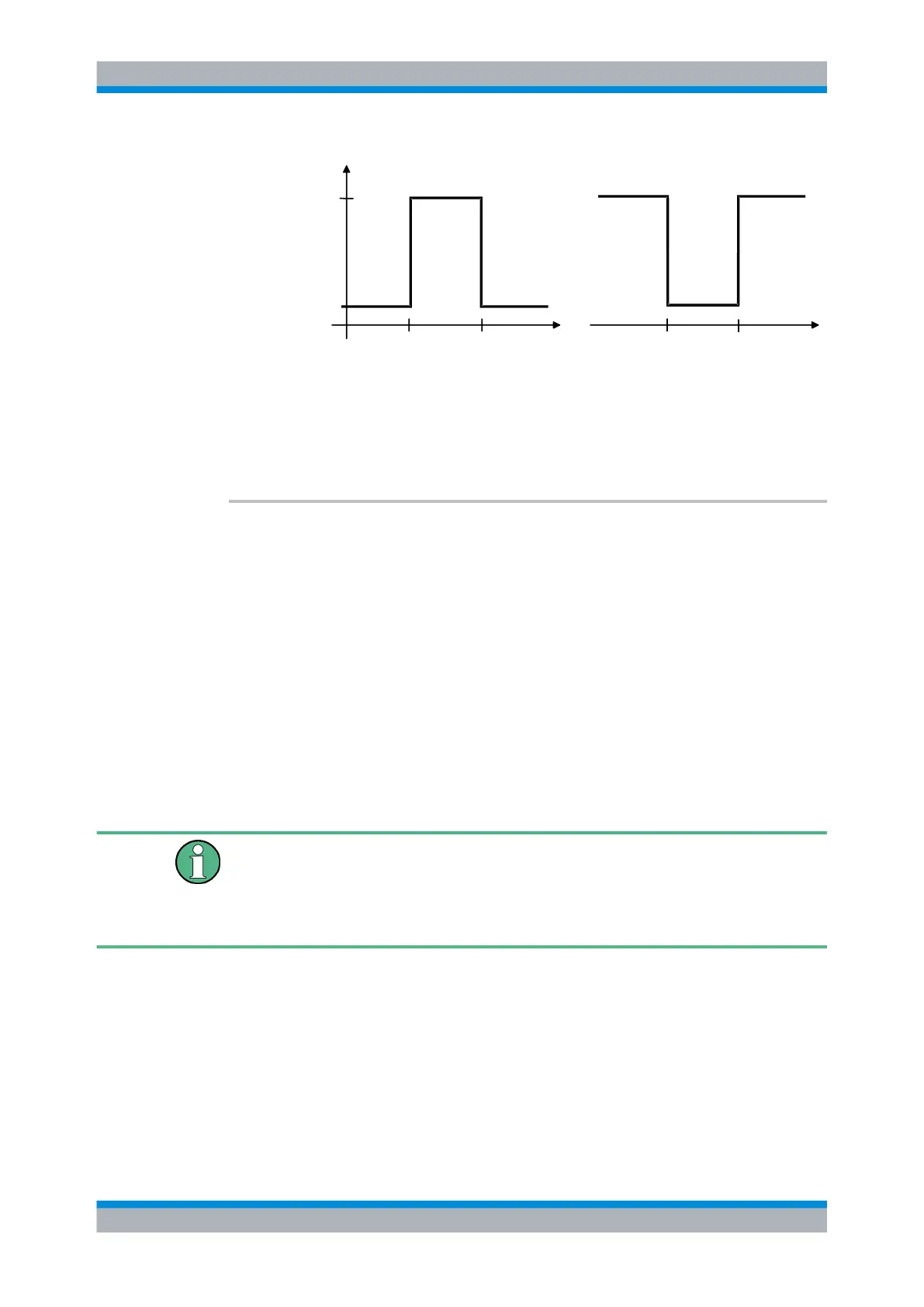

Fig. 6-9: Voltage at TTL output
Parameters:
<state> ON | OFF
*RST: OFF
OUTPut:
TRIGger[:STATe]
Switches the trigger output ON or OFF. The source of signals on the trigger bus can either
be the (external) trigger input or a sensor in trigger master mode. The output needs to be
switched to OFF before it can be switched ON again. Therefore, it is not possible to switch
directly from OUTP:REC ON to OUTP:TRIG ON.
6.11 SENSe (Sensor Commands)
The commands of the SENSe group configure the power sensors with the exception of
the trigger system. This includes the measurement modes (ContAv, Burst, Timeslot or
Trace), the offset corrections and the filter settings.
Suffix [1]..4 denotes the sensor channel.
When the sensors are connected to the R&S NRP2, they inform the device about the
SENSe and TRIGger commands supported and about the value ranges for parameters.
This applies to both numeric and text parameters. For this reason, no fixed ranges are
specified with these commands; the ranges can be obtained from the respective sensor
manual.
[SENSe<[1]..4>]:AUXiliary...............................................................................................261
[SENSe<[1]..4>]:AVERage:COUNt..................................................................................262
[SENSe<[1]..4>]:AVERage:COUNt:AUTO........................................................................262
[SENSe<[1]..4>]:AVERage:COUNt:AUTO:MTIMe..............................................................263
[SENSe<[1]..4>]:AVERage:COUNt:AUTO:RESolution.......................................................263
[SENSe<[1]..4>]:AVERage:COUNt:AUTO:SLOT...............................................................264
[SENSe<[1]..4>]:AVERage:COUNt:AUTO:NSRatio............................................................264
[SENSe<[1]..4>]:AVERage:COUNt:AUTO:TYPE...............................................................264
[SENSe<[1]..4>]:AVERage:RESet...................................................................................264
SENSe (Sensor Commands)
