OUTPut:RECorder<[1]..2>:LIMit:LOWer <lower_limit>
Power
Voltage
3.3 V
0.0 V
3.0 V
OUTP:REC:LIM:LOW OUTP:REC:LIM:UPP

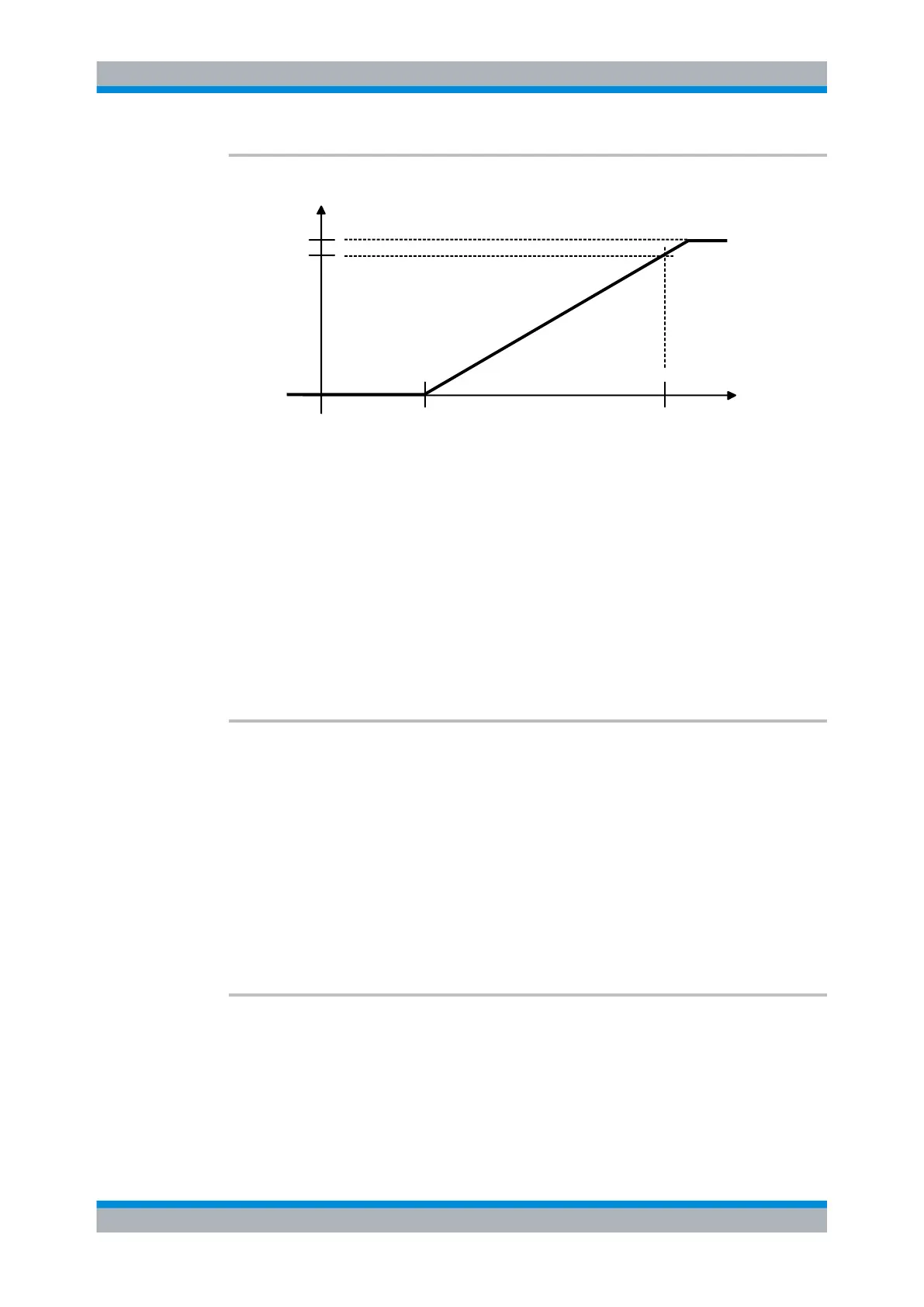

Fig. 6-8: Characteristic of analog outputs
Specifies the lower power limit of the characteristic for one of the two analog outputs .
The unit corresponds to the output unit of the measured value.
Value range: See table 6-10 Value ranges, depending on the unit.
Units: table 6-11 Output unit of measured value of calculate block.
Note: The characteristic is linear in the selected unit of the measured value.
Parameters:
<lower_limit> float_value
*RST: -20 DBM or 0 DB
OUTPut:RECorder<[1]..2>:LIMit:LOWer:POWer <lower_limit>
Specifies the lower power limit of the characteristic for one of the two analog outputs if
the associated calculate block returns a power (unit DBM, W or DBUV) as measured value
(see figure 6-8 Characteristic of analog outputs).
Units: DBM | W | DBUV
Parameters:
<lower_limit> float_value
Range: -120 DBM to 90 DBM
*RST: -20 DBM
Default unit: DBM
OUTPut:RECorder<[1]..2>:LIMit:LOWer:RATio <lower_limit>
Specifies the lower power limit of the characteristic for one of the two analog outputs if
the associated calculate block returns a power ratio (unit DB, DPCT or O) as the measured
value (see figure 6-8 Characteristic of analog outputs).
Unit:DB | DPCT | O
OUTPut
