The parameter "Dropout" helps to reliably detect the end of modulated-signal bursts
(e.g. NADC). With unmodulated pulses as in this case, it should be set to 0.

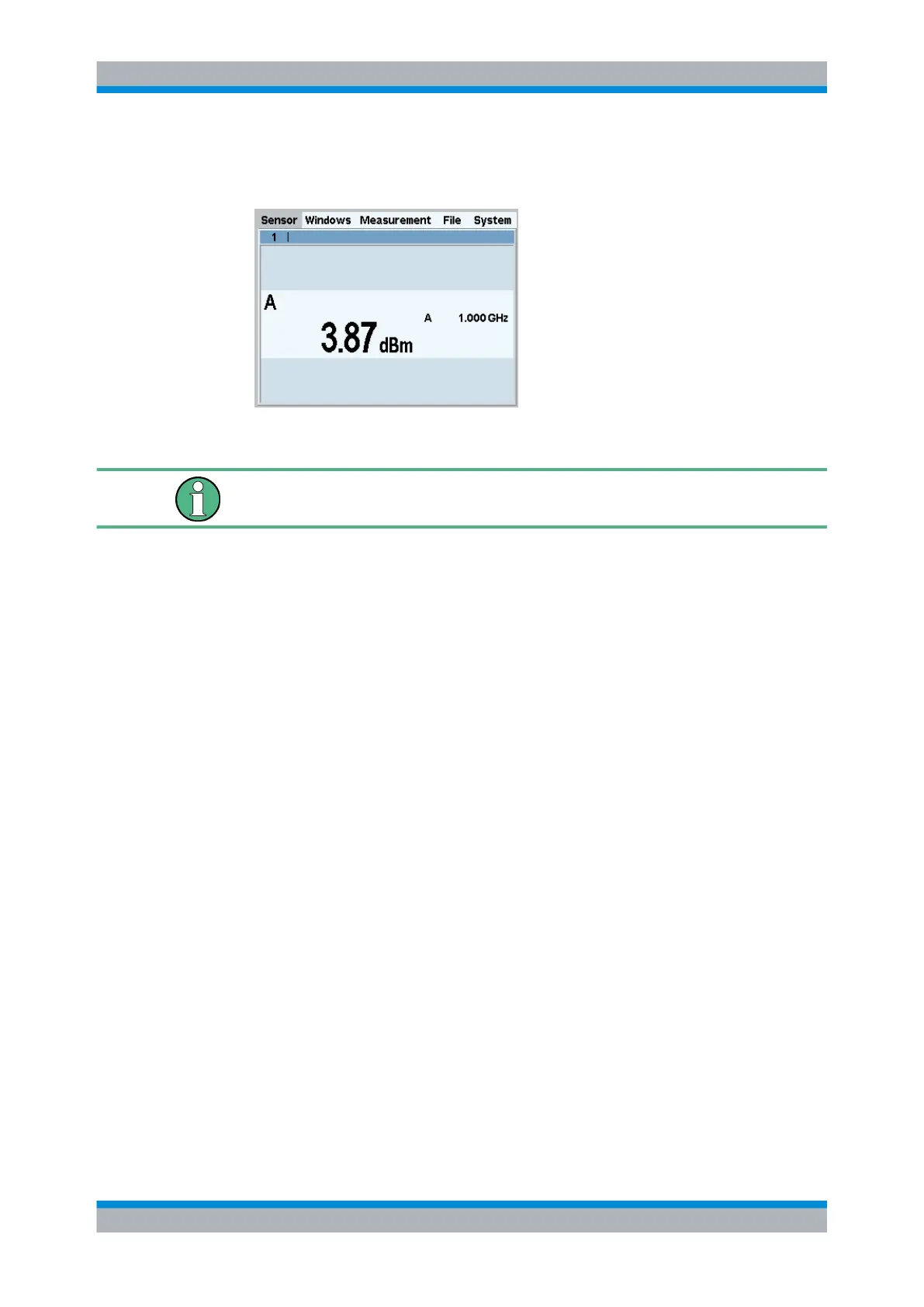

Fig. 2-39: Burst av result window
For a detailed description of burst av power measurement, see chapter 4.2.1.3, "Meas-
uring the average power of burst signals", on page 68.
The power of burst can be measured also by means of timegates (see chapter 4.2.1.5,
"Measuring the average power in gates", on page 71 and chapter 4.5.4, "Gates display
mode", on page 119). In contrast to the burst mode which automatically detects the burst
end, the length and position of the gate over time must be exactly defined.
