Troubleshooting
124
5
1000-Sheet Finisher

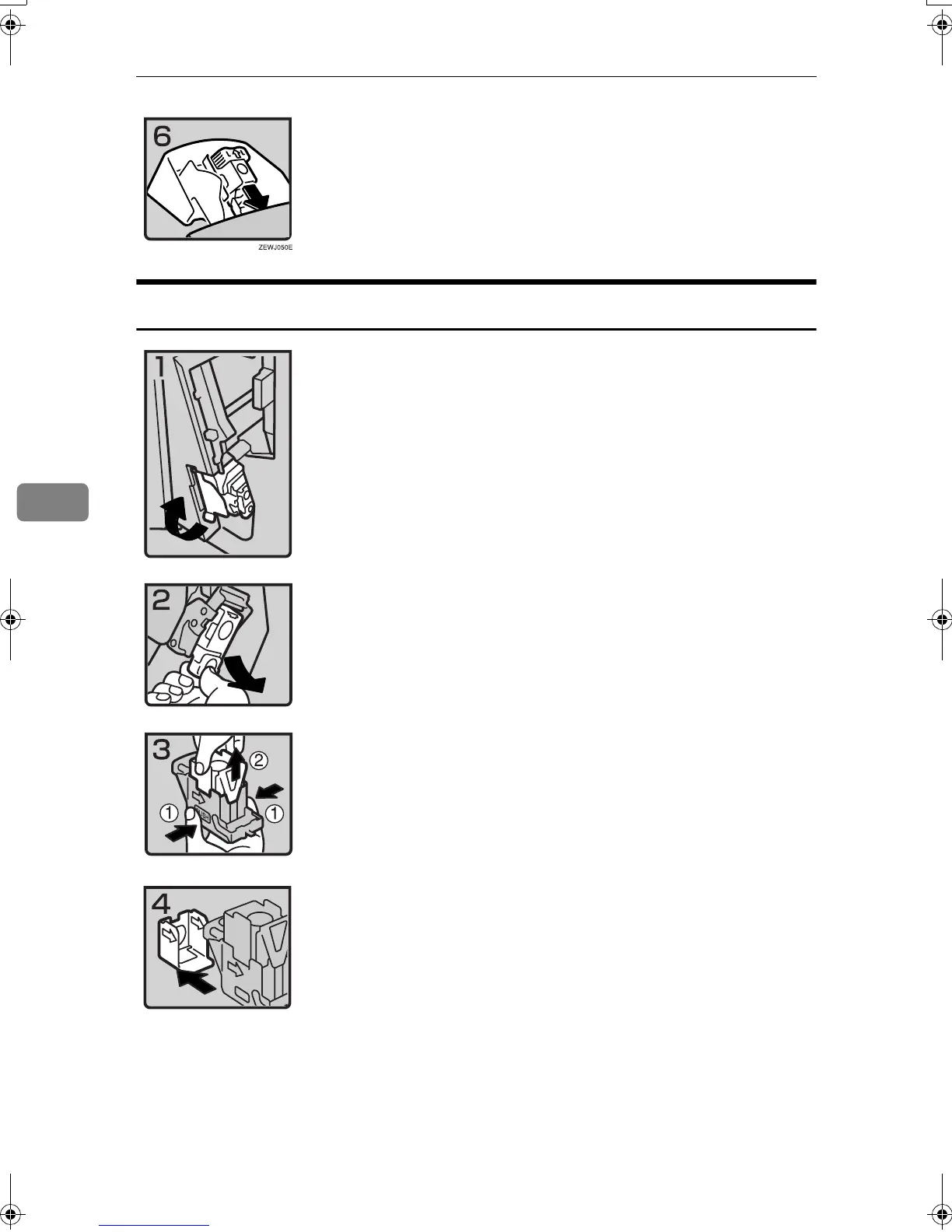

• 6: Reinstall the cartridge.
• 7: Close the side cover.
• 1: Open the front cover of the finisher, and
then pull out the staple unit.
• 2: Hold the green lever, and then gently
pull out the cartridge.
• 3: Hold both sides of the cartridge.
• 4: Pull up the upper unit of the cartridge.
• 5: Take out the empty refill in the arrow di-
rection.
ZGJS801E
ZGJS802E
ZGJS803E
ZGJS804E
