Ricoh Aficio 2022 User Manual

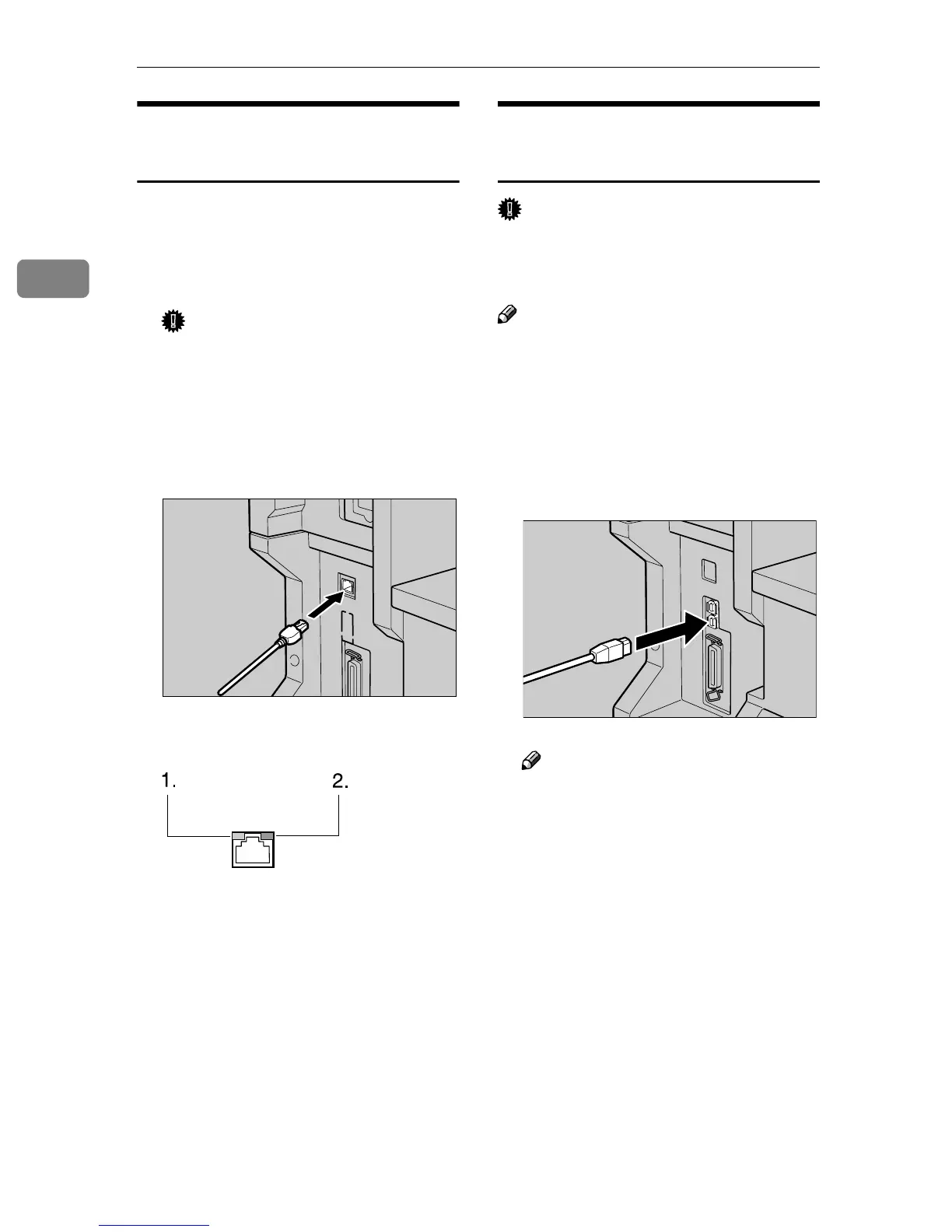

Connecting the Network Cable to the Network
14
2
Connecting to the Ethernet
Interface
The network interface board supports
10BASE-T or 100BASE-TX connec-
tions.
A
AA
A
Turn off the main power switch.
Important
❒ Make sure the main power is
off. See “Turning On the Pow-
er”, General Settings Guide.
B
BB
B
Connect the Ethernet interface ca-
ble to the 10BASE-T/100BASE-TX
port.
C
CC
C
Turn on the main power switch.
1. Indicator (yellow)
Turns yellow when 100 BASE-TX is
operating. Turns off when 10 BASE-T
is operating.
2. Indicator (green)
Remains green when the machine is
properly connected to the network.
Connecting to the IEEE 1394
Interface
Important
❒ Before making the connection,
touch the metallic part to ground
yourself.
Note
❒ Use the interface cable supplied
with the IEEE 1394 interface board
(optional).
❒ Make sure the interface cable is not
looped.
A
AA
A
Connect the IEEE 1394 interface
cable to the IEEE 1394 ports.
Note
❒ Two interface ports are availa-
ble for connecting the IEEE 1394
interface cable, either is suita-
ble.
ZKPH040J
ZKQH020E
ZKPS030J

Ricoh Aficio 2022 Specifications

General

Functions	Print, Copy, Scan, Fax
Printing Technology	Laser
Print Speed (Black)	22 ppm
Print Resolution	600 x 600 dpi
Copy Speed (Black)	22 cpm
Max Copying Resolution	600 x 600 dpi
Reduction / Enlargement	25% - 400%
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed
Scan Resolution	600 x 600 dpi
Monthly Duty Cycle	30, 000 pages
Type	All-in-One Printer
Warm-Up Time	30 seconds
Max Paper Capacity	850 sheets
Supported Paper Sizes	A4, A5, B5, Letter, Legal
Interface	USB, Parallel, Ethernet
Fax Transmission Speed	33.6 Kbps
Network Connectivity	Ethernet
Operating System Compatibility	Windows, macOS, Linux
