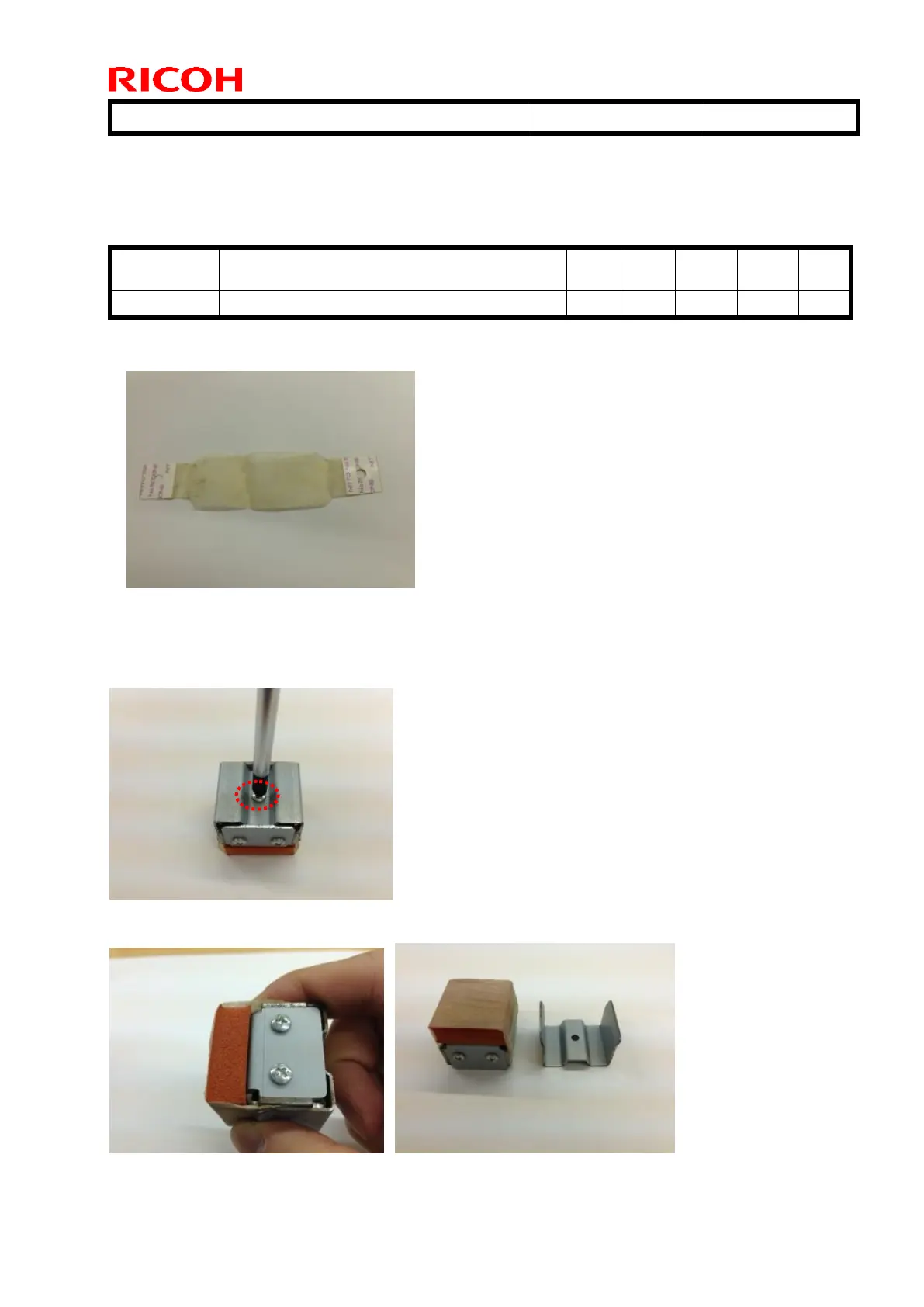

Ricoh CH-C1 - Page 23

Technical Bulletin PAGE: 5/6
Model: Model CH-C1
Date: 19-Jun-13
No.: RD135026
NOTE: It is recommended to replace this web (M0774288) after each polishing of
the fusing belt (one web per fusing belt) in accordance with the following
procedure.
New P/N
Description
Q’ty
Int
Page
Index
Note
M0774288
WEB:POLISH:FUSING
1
-
-
-
-
M0774288 WEB:POLISH:FUSING
Procedure for Replacing the Web
1. Remove the screw at the bottom of the tool.
2. Remove the metal plate [B] from the tool [A].
[A]
[B]
