Technical Bulletin PAGE: 13/14
Reissued:15-Oct-13
Model: CH-C1
Date: 17-Sep-13
No.: RD135028b
Attaching the ITB Separation Lever
When unpacking the machine, the ITB separation lever is not yet attached to the correct
location. During machine installation, you must install the lever.

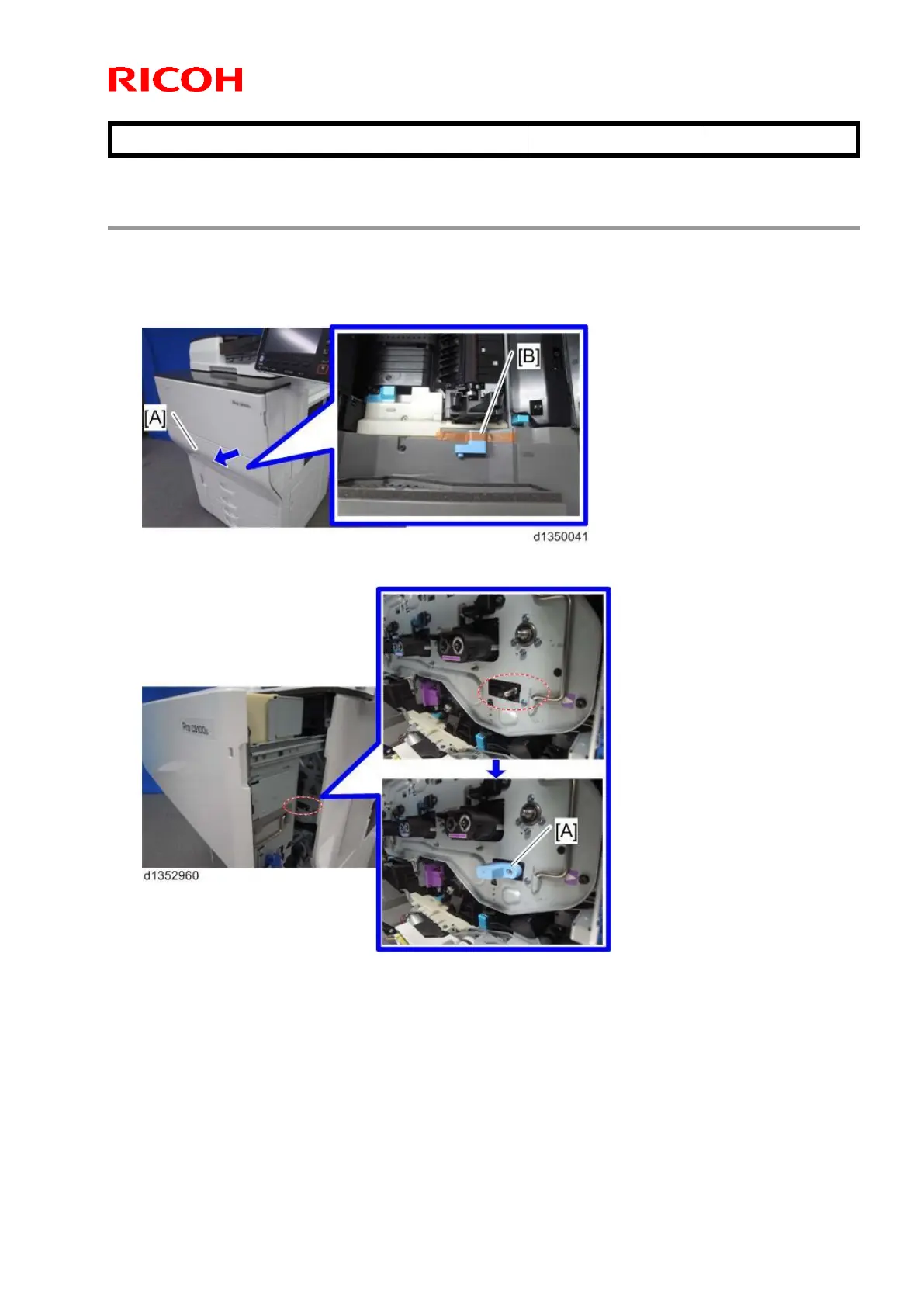

1. Remove the ITB separation lever [B] from the drawer unit [A].
2. Attach the ITB separation lever [A] horizontally.
