Model: CH-C1 Finisher SR4110
Docking the Finisher D707
The Finisher (D707) is docked to one of the following:
・ Multi-Folding Unit FD4000 (D615)
・ Cover Interposer Tray CI4020 (D712)
・ Buffer Pass Unit Type 5020 (D751) (D137/D138 Only)
・ Decurl Unit DU5020 (D727) (D137/D138 Only)
・ Main Machine
Finisher D707 to Cover Interposer Tray CI4020

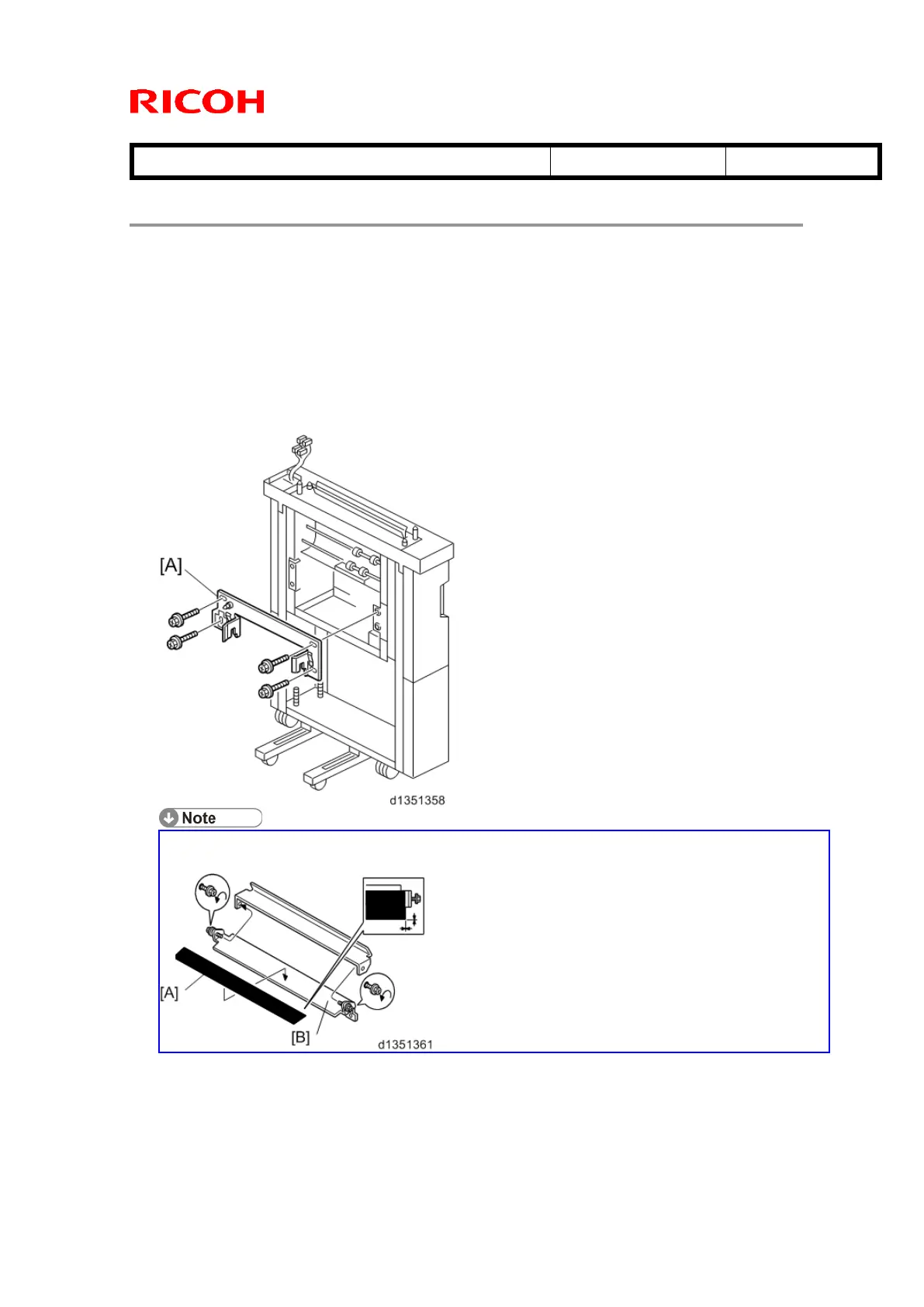

1. Fasten the joint bracket [A] to the Cover Interposer Tray CI4020.
2. Dock the finisher. (See “Connecting the Finisher D707”)
Attach the black mylar [A] provided with the cover interposer tray accessories to
the relay guide plate [B] of the Finisher D707.
To Next Page
