Chapter 6 Micro870 Controller Distributed Network Protocol

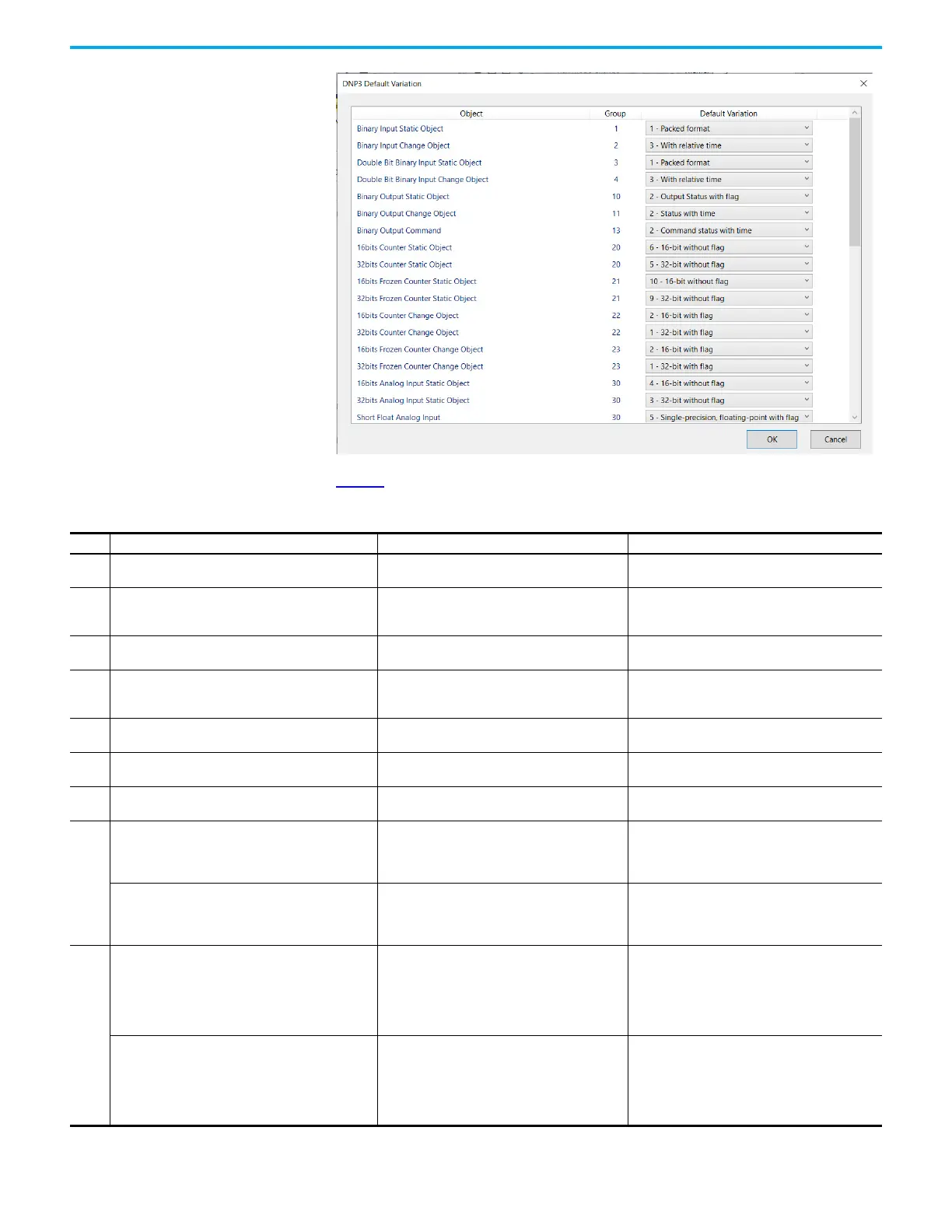

Table 7 shows the structure of the DNP3 Default Variation Configuration File.
Table 7 - DNP3 Default Variation Configuration File
Group Default Variation for the following Objects Standard Default Variation Alternate Default Variations
1 Binary Input Static Object 1 - Packed format
0 - All variation
2 - With flag
2 Binary Input Change Object 3 - With relative time
0 - All variation
1 - Without time
2 - With absolute time
3 Double Bit Binary Input Static Object 1 - Packed format
0 - All variation
2 - With flag
4 Double Bit Binary Input Change Object 3 - With relative time
0 - All variation
1 - Without time
2 - With absolute time
10 Binary Output Static Object 2 - Output status with flag
0 - All variation
1 - Packed format
11 Binary Output Change Object 2 - Status with time
0 - All variation
1 - Status without time
13 Binary Output Command 2 - Command status with time
0 - All variation
1 - Command status without time
20
16-bit Counter Static Object 6 - 16-bit without flag
0 - All variation
1 - 32-bit with flag
2 - 16-bit with flag
5 - 32-bit without flag
32-bit Counter Static Object 5 - 32-bit without flag
0 - All variation
1 - 32-bit with flag
2 - 16-bit with flag
6 - 16-bit without flag
21
Frozen 16-bit Counter Static Object 10 - 16-bit without flag
0 - All variation
1 - 32-bit with flag
2 - 16-bit with flag
5 - 32-bit with flag and time
6 - 16-bit with flag and time
9 - 32-bit without flag
Frozen 32-bit Counter Static Object 9 - 32-bit without flag
0 - All variation
1 - 32-bit with flag
2 - 16-bit with flag
5 - 32-bit with flag and time
6 - 16-bit with flag and time
10 - 16-bit without flag
