Chapter 2
Terminal Dimensions
This section provides terminal dimensions.

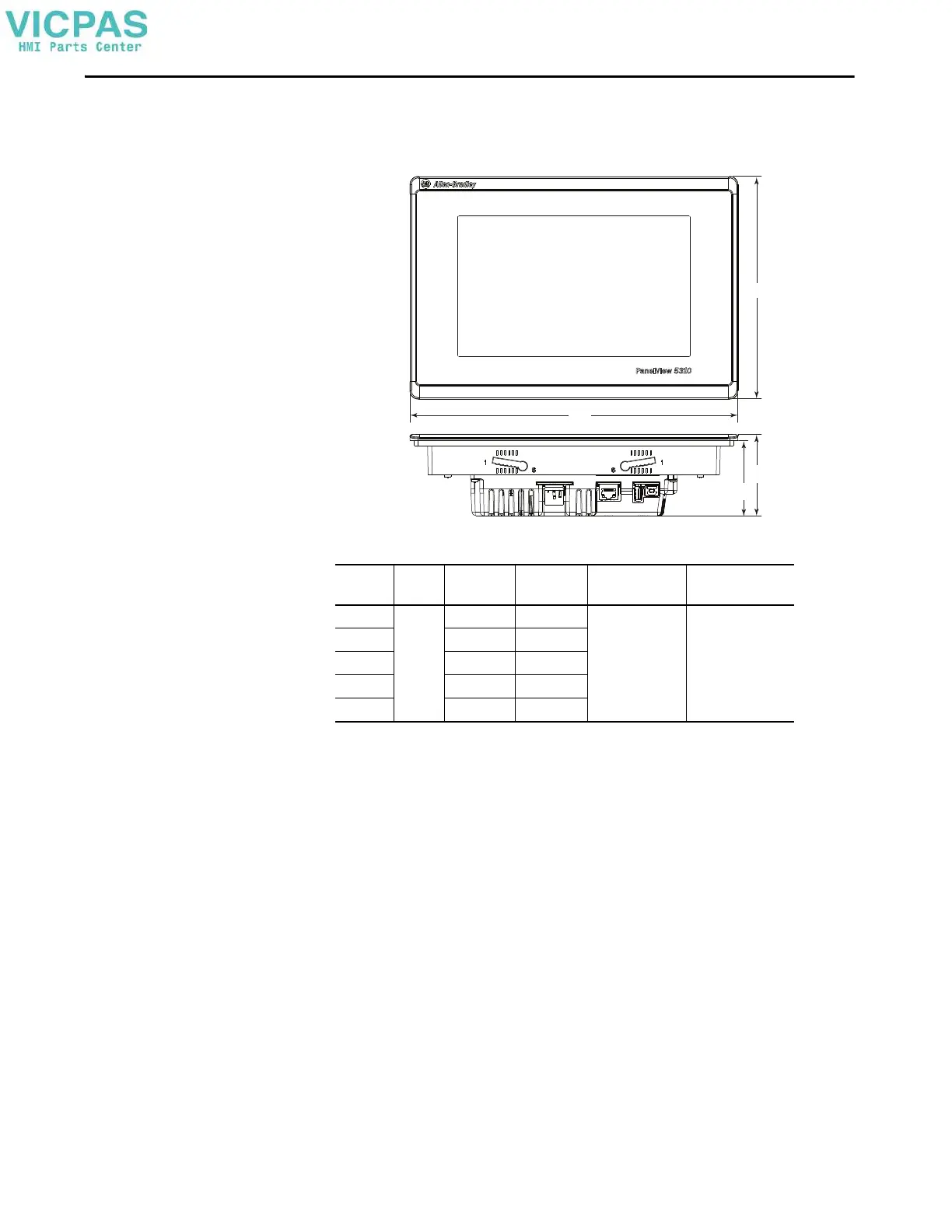

Figure 3 - PanelView 5310 Terminal Dimensions (9-in. wide terminal shown)
Table 9 - PanelView 5310 Terminal Dimensions
Display
Size (in.)
Input
Type
Height (A)
mm (in.)
Width (B)
mm (in.)
Overall Depth (C)
mm (in.)
Mounted Depth (D)
mm (in.)
6 Touch 153 (6) 186 (7.3) 69.5 (2.74) 64 (2.5)
(1)
(1) When mounted in a panel, the front of the bezel extends less than 6 mm (0.24 in.) from the panel.
7 178 (7) 237 (9.3)
9 190 (7.5) 280 (11)
10.4 252 (9.92) 297 (11.69)
12.1 246 (9.7) 340 (13.4)
B
A
C
D
