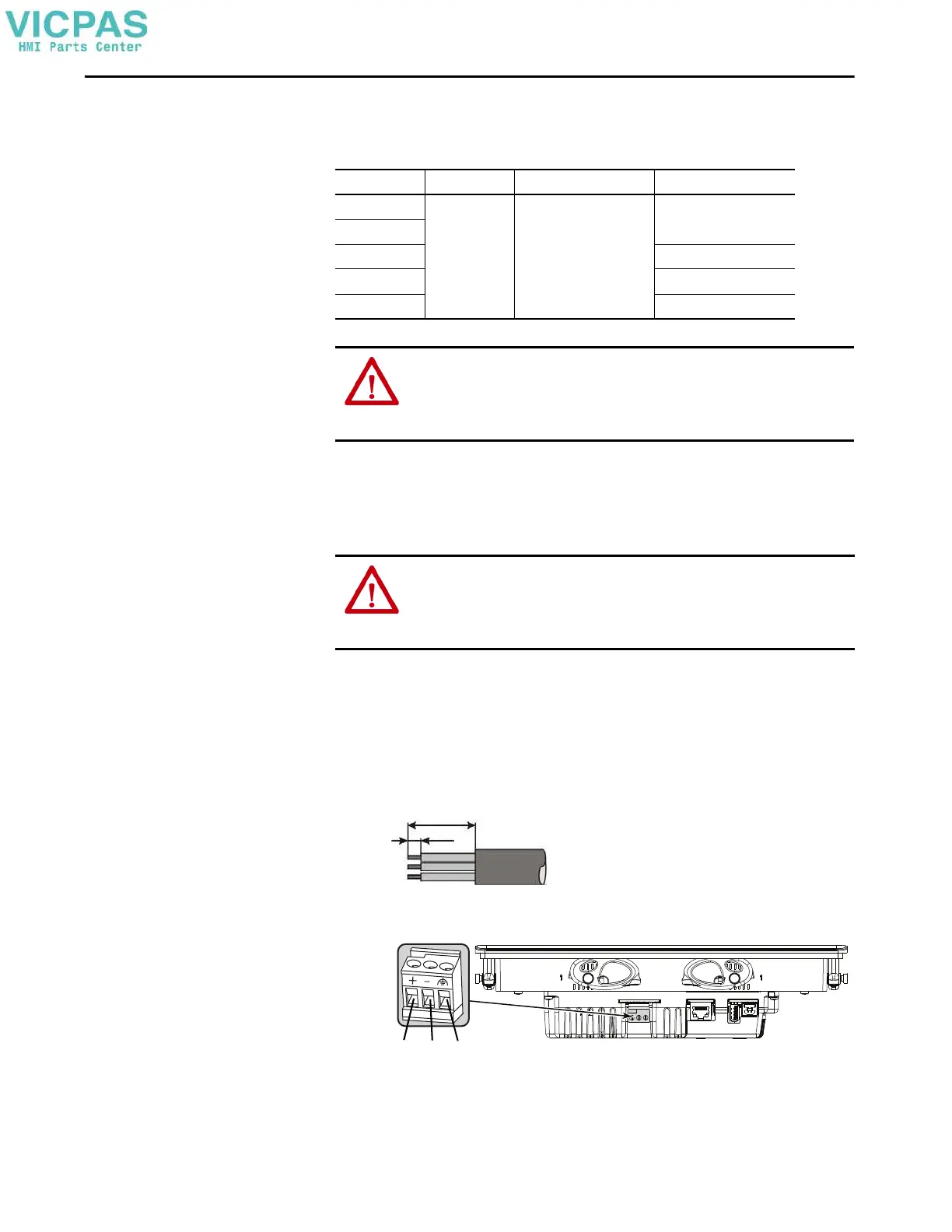

Rockwell Automation Publication 2713P-UM001G-EN-P - May 2022 33
Chapter 2
Connect Power
The terminals have a 24V DC non-isolated power supply at these power ratings.
The terminals support operation from a safety extra low voltage (SELV) or
protective extra low voltage (PELV) 24V DC power supply. Supported power
supplies include catalog numbers 1606-XLP95E, 1606-XLP100E,
1606-XLP120E, and 2711P-RSACDIN.
To power the terminal from the same power source as other equipment, use a DC
power bus.
To connect the operator terminal to a DC power source, follow these steps.
1. Verify that the wiring is not connected to a power source.
2. Strip 7 mm (0.28 in.) of insulation from your power supply wires.
3. Secure the DC power wires to the marked terminals (+ and –) on the
terminal block.
Table 12 - DC Power Ratings
Terminal Power Supply Input Voltage Power Consumption
2713P-T6CD1 Non-isolated 24V DC nom (18…30V DC) 13 W max (0.54 A at 24V DC)
2713P-T7WD1
2713P-T9WD1 14 W max (0.58 A at 24V DC)
2713P-T10CD1 15 W max (0.62 A at 24V DC)
2713P-T12WD1 16 W max (0.67 A at 24V DC)
ATTENTION: The power supply is internally protected against reverse polarity.
Do not connect DC+ or DC- to the earth ground terminal, which can damage
the terminal. Do not connect AC power, or more than 30V DC, which can also
damage the terminal.
ATTENTION: Use a SELV or PELV supply as required by local wiring codes for
your installation. The SELV and PELV power sources provide protection so that
under normal and single fault conditions, the voltage between conductors and
earth ground does not exceed a safe value.
