32 Rockwell Automation Publication 2713P-UM001G-EN-P - May 2022
Chapter 2

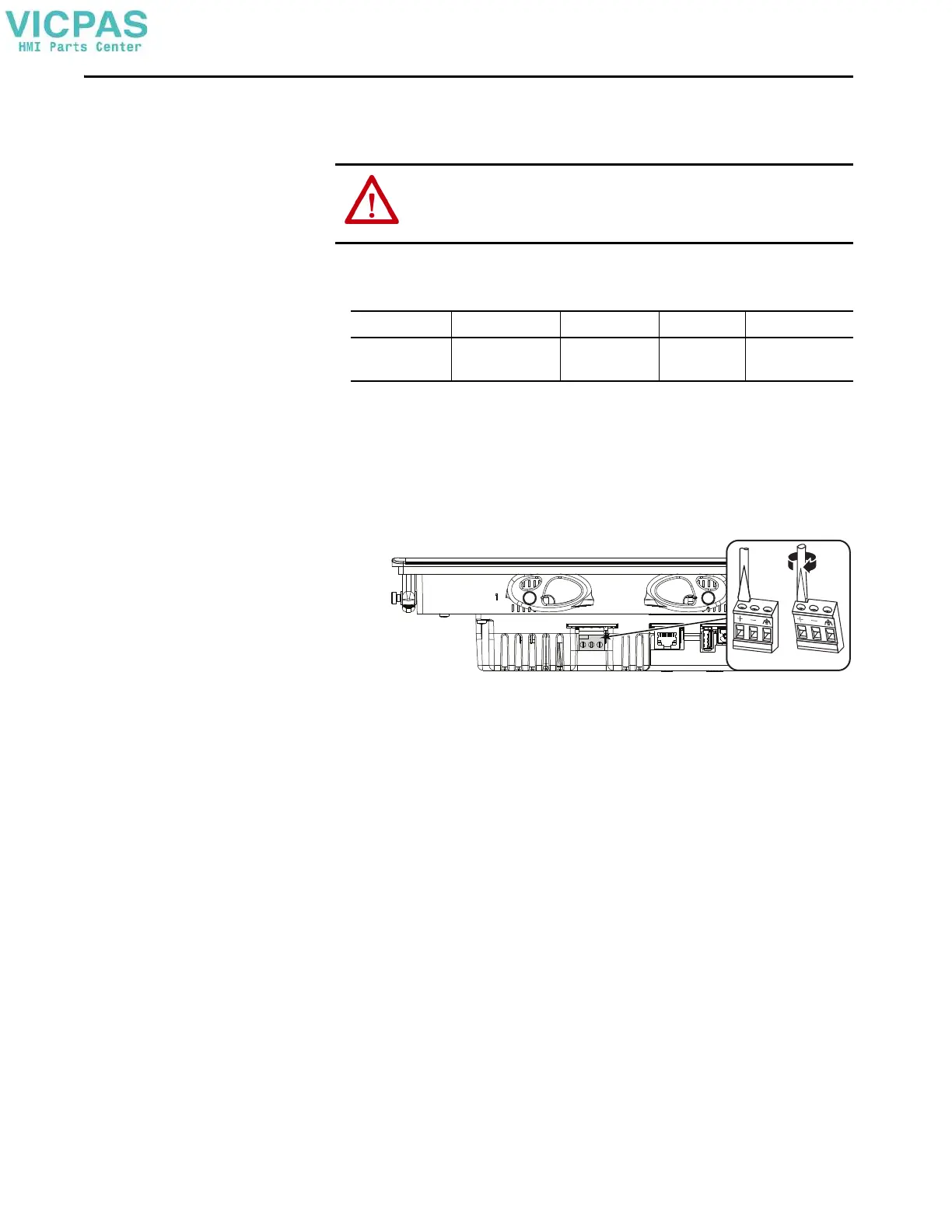

Remove and Replace Power
Terminal Block
The product has a three-pin terminal block for DC power connections. You can
remove the terminal block for ease of installation, wiring, and maintenance.
Use a 0.6 x 3.5 mm screwdriver for terminal block wiring.
To remove the power terminal block, follow these steps.
1. Insert the tip of a small screwdriver into the terminal block access slot.
2. To release the locking mechanism, gently pry the terminal block away from
terminal.
To install the power terminal block, follow these steps.
1. Press the terminal block base in first with the terminal block leaning
outward.
2. Gently push the top of the terminal block back to vertical position to snap
in the locking tab.
SHOCK HAZARD: Turn off the power before you connect or disconnect wiring.
If the power is on, an electric arc can occur.
Failure to turn power off can result in electric shock or damage to the terminal.
Table 11 - Wire Specifications for Power Input Terminal Block
Wire Type Dual-wire Size
(1)
(1) Two-wire maximum per terminal.
Single-wire Size Strip Length Screw Torque
Stranded or solid
Cu 90 °C (194 °F)
0.3…1.3 mm
2
22…16 AWG
0.3…2.1 mm
2
(22…14 AWG)
7 mm (0.28 in.) 0.56 N•m (5.0 lb•in)
