Rockwell Automation Publication 2713P-UM001G-EN-P - May 2022 79
Chapter 4
Alarm Detail Pane
Descriptions

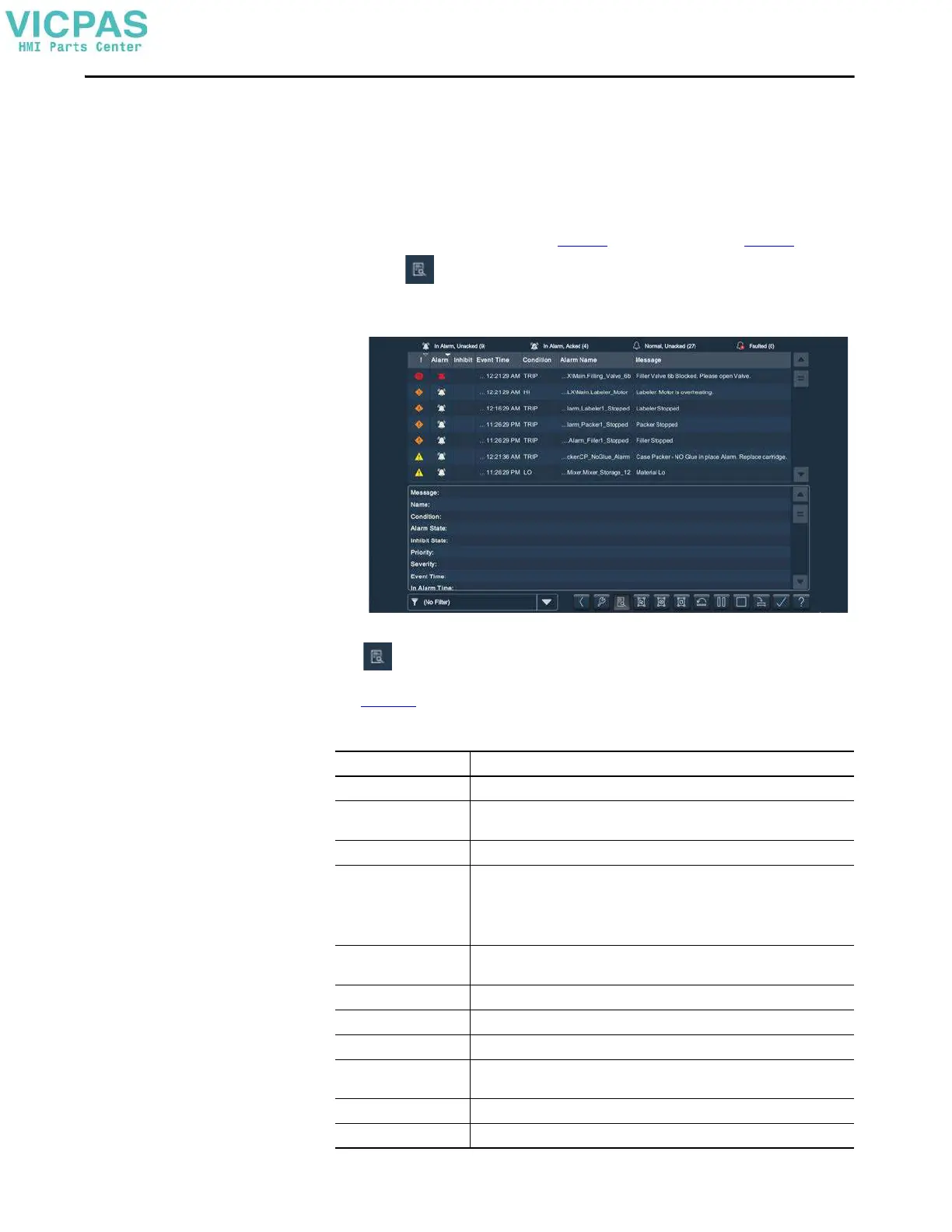

The details pane shows details for the selected alarm condition of a selected
alarm. Condition details display the selected alarm condition in the alarm
manager table.
To view the details pane for a selected alarm, follow these steps.
1. Open the Alarm Summary (page 77
) or Alarm Manager (page 78) screen.
2. Tap .
The details pane displays a list of alarm states and conditions.
Tap again to toggle off the details pane.
See Tab l e 18
for a description of the alarm details.
Table 18 - Alarm Detail Descriptions
Alarm Detail Description
Acknowledge Time The time the selected alarm was acknowledged.
Alarm Class The user-defined class that is assigned to the alarm in the Studio 5000 Logix Designer
project.
Alarm Count The number of times the alarm condition has entered the In Alarm state.
Alarm State The state of the alarm condition:
• Normal Unacknowledged (Normal, Unacked)
• In Alarm Acknowledged (In Alarm, Acked)
• In Alarm Unacknowledged (In Alarm, Unacked)
• Normal Acknowledged (Acknowledge)
Condition • Analog conditions include: HIHI, HI, LO, LOLO, ROC_POS, and ROC_NEG
• Discrete conditions include: TRIP and TRIP_L
Current Value The current tag input value that results in the alarm state.
Disable Time The time the selected alarm was disabled.
Enable Time The time the selected alarm was enabled.
Event Category • Digital events are categorized as discrete.
• Analog events are categorized as level.
Event Time The date and time the alarm event occurred.
In Alarm Time The time the selected alarm entered the In Alarm state.
