7-20
Options
Accu-Stop Option

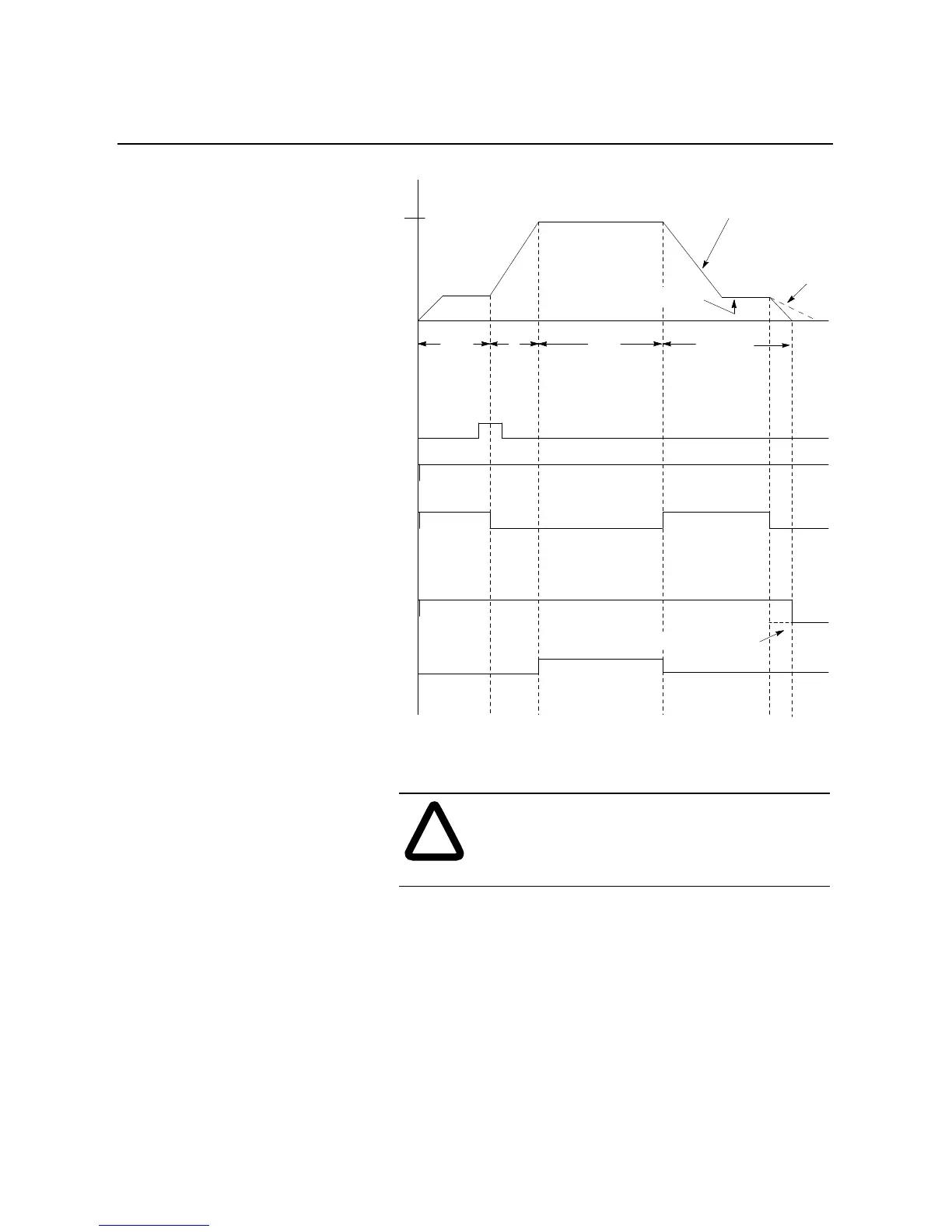

Figure 7.16 Accu-Stop Option Sequence of Operation
①
When Accu-Stop push button is closed, start/stop function is disabled.
Motor
Speed
100%
Push Buttons
Start
Stop
Accu-Stop
Auxiliary
Contacts
Normal
Up-to-speed
Open
Open
Open
Closed
Closed
Closed
Start
Run
Slow
Speed
Accu-Stop
Braking
Slow Speed
Braking/Coast
➀
Time (seconds)
If Stopping Current is set to 0%.
Slow Speed
!
ATTENTION: The user is responsible for
determining which stopping mode is best suited to the
application and will meet applicable standards for
operator safety on a particular machine.
